Flange screw 420205

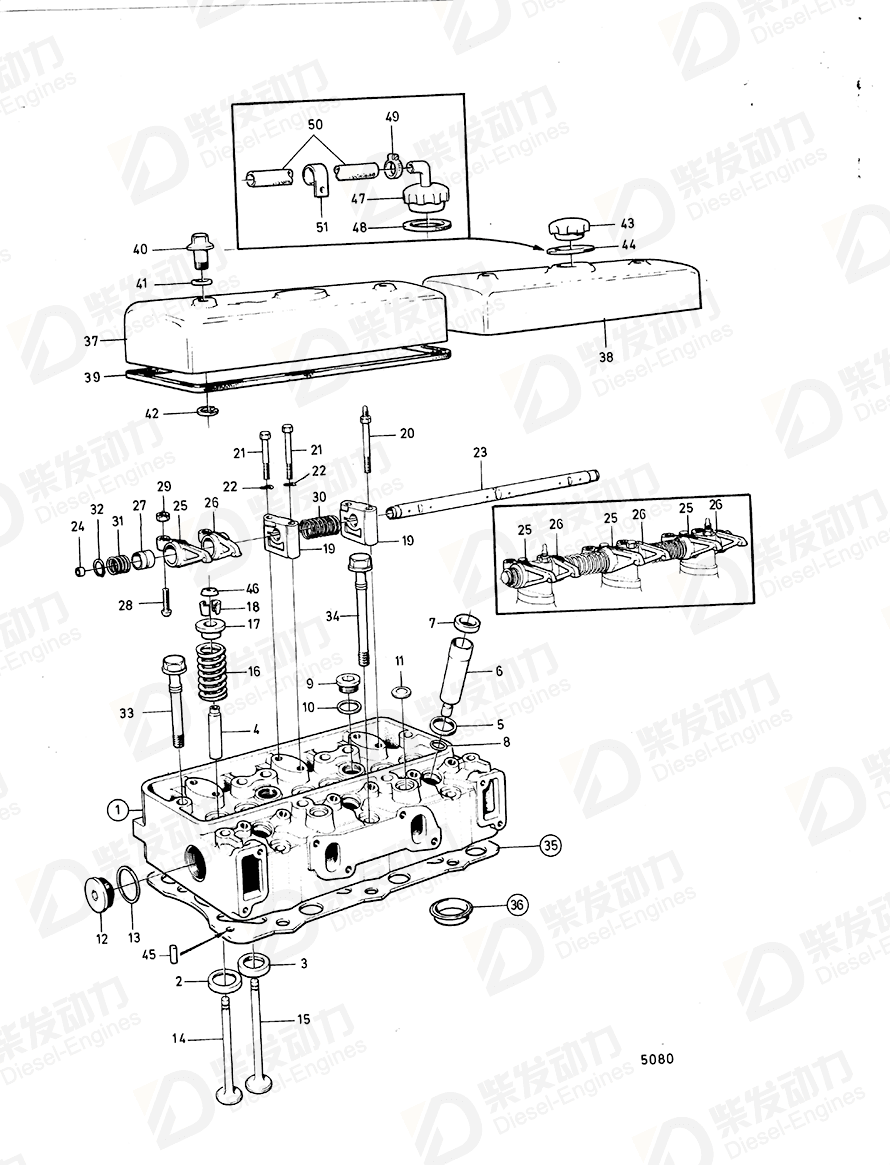

| No. | Part Name | Part Number | Qty | Description |
| 2 | Valve seat | 465158 | 6 | Std D |
| 2 | Valve seat | 465238 | 6 | 0.20mm o.s |
| 3 | Valve seat | 465155 | 6 | Std D |
| 3 | Valve seat | 465236 | 6 | 0.20mm o.s |
| 4 | Valve guide | 465157 | 12 | |
| 5 | Sealing ring | 466405 | 6 | |
| 6 | Nozzle sleeve | 466404 | 6 | |
| 7 | Ring | 466420 | 6 | |
| 8 | O-ring | 466922 | 6 | (944124) |
| 9 | Plug | 466230 | 4 | |
| 10 | Gasket | 420166 | 4 | |
| 11 | Expansion plug | 192426 | 4 | |
| 12 | Plug | 467367 | 4 | |
| 13 | Gasket | 469328 | 4 | |
| 14 | Valve | 465548 | 6 | |
| 15 | Exhaust valve | 465549 | 6 | |
| 16 | Valve spring | 465233 | 12 | |
| 17 | Valve spring washer | 465550 | 12 | |
| 18 | Lock | 465284 | 24 | |
| 19 | Bearing bracket | 465002 | 6 | |
| 20 | Stud | 420270 | 4 | |
| 21 | Hexagon screw | 955540 | 8 | MOXXXXX/105195- |
| 22 | Spring washer | 942336 | 8 | |
| 23 | Rocker arm shaft | 420019 | 2 | |
| 24 | Cap plug | 955082 | 4 | |
| 25 | Rocker arm | 420129 | 6 | |
| 26 | Rocker arm | 420132 | 6 | |
| 27 | Bushing | 420125 | 12 | |
| 28 | Ball stud | 423058 | 12 | |
| 29 | Hexagon nut | 940175 | 12 | |
| 30 | Compression spring | 411139 | 4 | |
| 31 | Valve spring | 411140 | 4 | |
| 32 | Retaining ring | 914456 | 4 | |
| 33 | Flange screw | 420206 | 20 | |
| 34 | Flange screw | 420205 | 6 | |
| 35 | Cylinder head gasket | 275740 | 2 | MO47364/XXXXX- |
| 36 | Sealing ring | 422413 | 2 | D=11mm |
| 36 | Sealing ring | 422414 | 12 | D=32mm |
| 36 | Sealing ring | 466421 | 18 | D=16mm |
| 37 | Valve cover | 420065 | 1 | |
| 38 | Valve cover | 420063 | 1 | |
| 39 | Gasket | 420066 | 2 | |
| 40 | Cap nut | 424341 | 4 | |
| 41 | Sealing ring | 469846 | 4 | |
| 42 | Retaining ring | 914449 | 4 | |
| 43 | Oil filler cap | 420292 | 1 | |
| 44 | Gasket | 940096 | 1 | |
| 45 | Pin | 949020 | 4 | |
| 46 | Ring | 465551 | 12 | |
| 47 | Breather cap | 848261 | 2 | For engine,40° inclanation., (844491) |
| 48 | Gasket | 940096 | 2 | |
| 49 | Hose clamp | 943474 | 2 | |
| 50 | Hose | 844508 | 2 | For engine,40° inclanation. |
| 51 | Clamp | 943717 | 2 |
| Item | Part Name | Part No. |
| 34 | Flange screw 420205 | 420205 |
| Details | |
| Engine model | D42A TD60A TD60B TD60D TD60D-83 TID60D TID60DG |
| Application | CYLINDER HEAD CYLINDER HEAD: A CYLINDER HEAD: B CYLINDER HEAD: C CYLINDER HEAD: D |
