Flange screw 471372

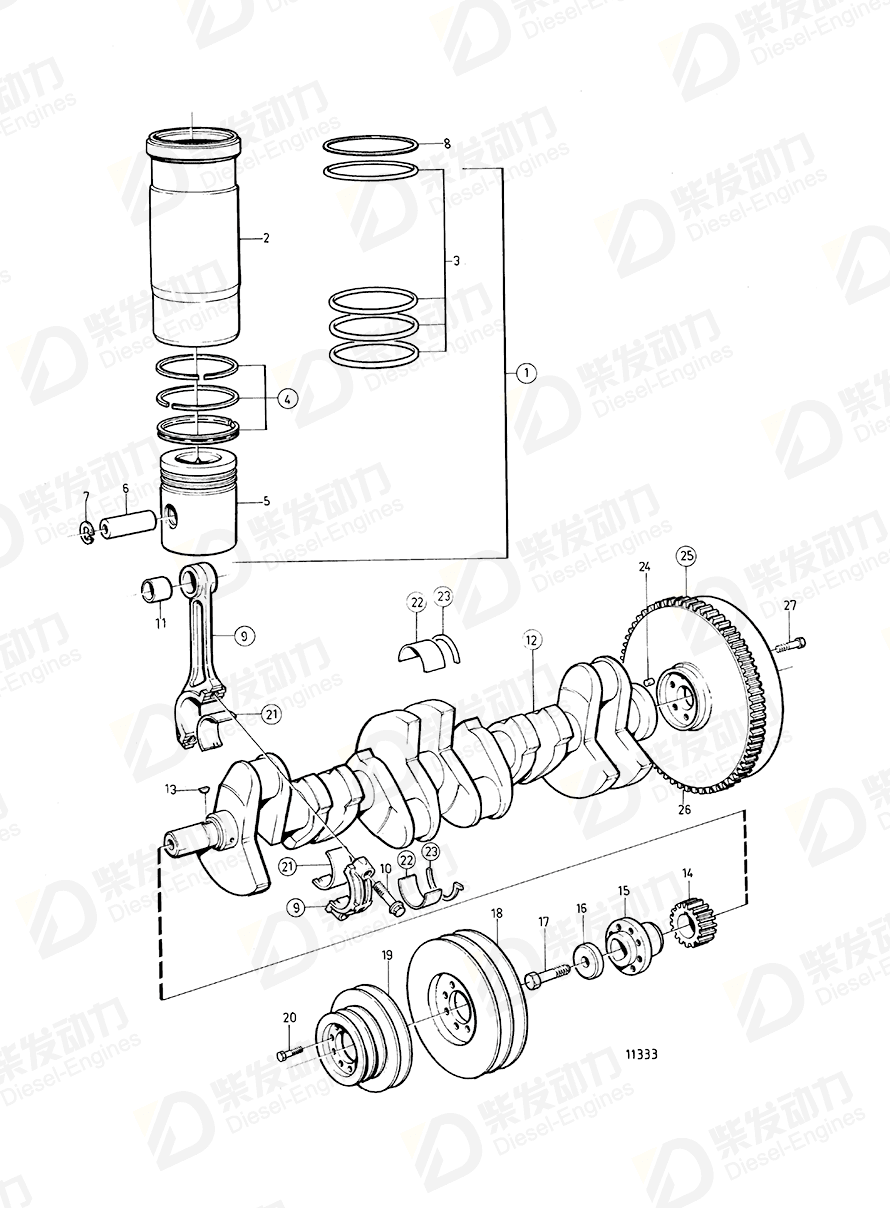

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 876199 | 6 | |
| 3 | Sealing ring kit | 271161 | 6 | |
| 4 | Piston ring kit | 270713 | 6 | |
| 6 | Gudgeon pin | 420258 | 6 | Std D |
| 6 | Gudgeon pin | 420988 | 6 | |
| 7 | Retaining ring | 914523 | 12 | |
| 8 | Adjusting washer | 465394 | 1 | TH=0.20mm |
| 8 | Adjusting washer | 465395 | 1 | TH=0.30mm |
| 8 | Adjusting washer | 465396 | 1 | TH=0.40mm |
| 9 | Connecting rod | 465812 | 6 | |
| 10 | Flange screw | 465815 | 12 | |
| 11 | Bearing | 465816 | 6 | (420257) |
| 12 | Crankshaft | 420662 | 1 | |
| 12 | Crankshaft, crankshaft | 465798 | 1 | SN-XXXXXXXXXX/25491 |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Gear, crankshaft | 471528 | 1 | |
| 15 | Hub | 465779 | 1 | |
| 16 | Washer | 420124 | 1 | |
| 17 | Flange screw | 470366 | 1 | |
| 18 | Vibration damper | 421515 | 1 | (471194) |
| 19 | Pulley | 847783 | 1 | 4 spår-4 groove,alt |
| 19 | Pulley | 4772117 | 1 | 3-groove |
| 20 | Flange screw | 471372 | 8 | L=135mm, alt |
| 20 | Flange screw | 471529 | 8 | |
| 21 | Big-end bearing kit | 270139 | 6 | Std D |
| 21 | Big-end bearing kit | 270140 | 6 | U.S=0,25mm |
| 21 | Big-end bearing kit | 270141 | 6 | U.S=0,51mm |
| 21 | Big-end bearing kit | 270142 | 6 | U.S=0,76mm |
| 21 | Big-end bearing kit | 270143 | 6 | U.S=1,01mm |
| 21 | Big end bearing kit | 270144 | 6 | U.S=1,27mm |
| 22 | Main bearing kit | 271230 | 7 | Std D (270426) |
| 22 | Main bearing kit | 271231 | 7 | 0.25mm u.s (270427) |
| 22 | Main bearing kit | 271232 | 7 | 0.50mm u.s (270428) |
| 22 | Main bearing kit | 271233 | 7 | 0.75mm u.s (270429) |
| 22 | Main bearing kit | 271234 | 7 | 1.00mm u.s (270430) |
| 22 | Main bearing kit | 271235 | 7 | 1.25mm u.s (270431) |
| 23 | Thrust washer kit | 276751 | 1 | Std D |
| 23 | Thrust washer kit | 276752 | 1 | 0.1mm o.s |
| 23 | Thrust washer kit | 276753 | 1 | 0.2mm o.s |
| 23 | Thrust washer kit | 276780 | 1 | 0.3mm o.s |
| 24 | Pin | 950677 | 1 | |
| 25 | Flywheel | 864260 | 1 | |
| 26 | Gear ring | 420067 | 1 | MO84522/XXXX-MO84530.MO84652/XXXXX-.engine without air starting motor. |
| 27 | Flange screw | 465825 | 6 |
| Item | Part Name | Part No. |
| 20 | Flange screw 471372 | 471372 |
| Details | |
| Engine model | TD61A, TD61AW TD71A, TD71AW, TID71A TD71AG, TID71AG |
| Application | Crankshaft and Related Parts |
| Specification | |
| Descriptions | L=135mm, alt |
Related Products
Tags: Flange screw, Volvo Penta, 471372
