Flange screw 946934

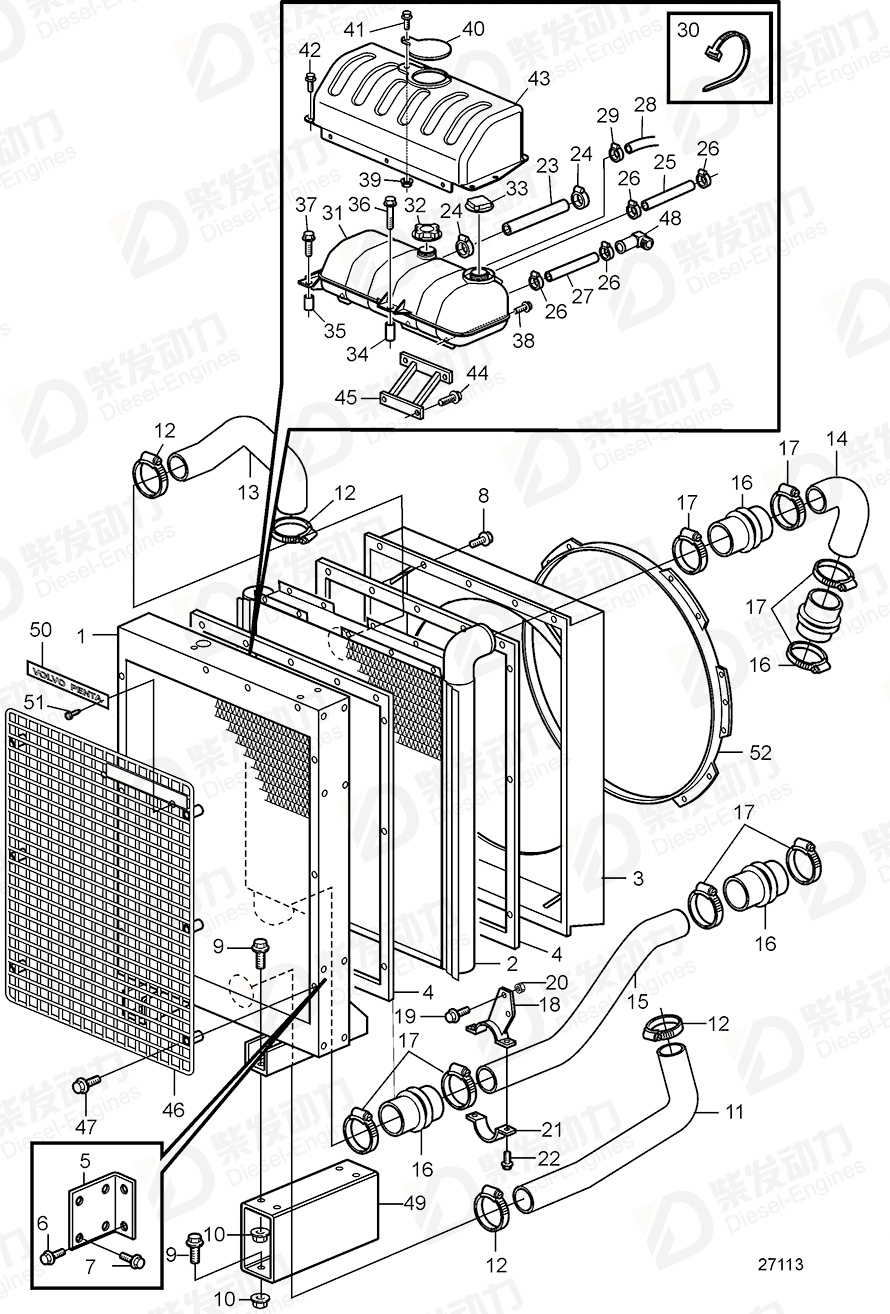

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 3843761 | 1 | Replaced by 21146121 |
| 1 | Radiator | 21146121 | 1 | |
| 2 | Charge air cooler | 3827870 | 1 | |
| 3 | Fan shroud | 3826684 | 1 | |
| 4 | Sealing strip | 3827816 | 2 | (3831141) |
| 5 | Attaching bracket | 3831142 | 4 | |
| 8 | Flange screw | 967949 | 20 | |
| 9 | Flange screw | 965191 | 8 | |
| 10 | Flange nut | 971096 | 8 | |
| 11 | Radiator hose | 3827265 | 1 | |
| 12 | Hose clamp | 943480 | 8 | MO-XXXXX/98707., (951797) |
| 13 | Radiator hose | 3827266 | 1 | |
| 14 | Charge air pipe | 3826673 | 1 | |
| 15 | Charge air pipe | 3588811 | 1 | |
| 16 | Charge air hose | 865127 | 4 | |
| 17 | Hose clamp | 865575 | 8 | |
| 18 | Clutch | 3831190 | 1 | Early type |
| 19 | Flange screw | 965192 | 2 | |
| 20 | Flange nut | 971096 | 2 | |
| 21 | Half clamp | 1674206 | 1 | |
| 22 | Flange screw | 946934 | 2 | |
| 23 | Hose | 3837240 | 1 | Expansion tank- water pump. |
| 24 | Hose clamp | 994561 | 2 | |
| 25 | Rubber hose | 943367 | 1 | L=1700mm |
| 26 | Hose clamp | 994556 | 4 | |
| 27 | Rubber hose | 943367 | 1 | L=1700mm |
| 28 | Hose | 192618 | 1 | L=1400mm |
| 29 | Hose clamp | 994556 | 1 | |
| 30 | Cable tie | 948211 | 1 | |
| 31 | Expansion tank | 1674916 | 1 | |
| 32 | Filler cap | 1674922 | 1 | |
| 33 | Pressure cap | 1674083 | 1 | |
| 34 | Spacer sleeve | 3830771 | 1 | |
| 35 | Spacer sleeve | 843028 | 1 | |
| 36 | Flange screw | 947790 | 1 | |
| 37 | Flange screw | 965220 | 1 | |
| 38 | Flange screw | 946471 | 2 | |
| 39 | Flange lock nut | 948645 | 1 | |
| 40 | Cover | 3830539 | 1 | |
| 41 | Flange screw | 946440 | 1 | |
| 42 | Flange screw | 947107 | 9 | |
| 43 | Protecting casing | 3839262 | 1 | |
| 44 | Flange screw | 946471 | 2 | |
| 45 | Bracket | 3831494 | 1 | |
| 46 | Radiator protector | 3827871 | 1 | |
| 47 | Flange screw | 948217 | 6 | |
| 48 | Hose nipple | 980568 | 1 | Mounted in cylinder head. for air ventilation to the expansion tank. |
| 49 | Spacer | 3832463 | 2 | |
| 50 | Emblem | 846118 | 1 | |
| 51 | Screw | 941651 | 2 | |
| 52 | Fan ring | 3827612 | 1 |
| Item | Part Name | Part No. |
| 22 | Flange screw 946934 | 946934 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1240GE, TAD1241GE TAD1240GE, TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1242GE TAD1250VE, TAD1251VE, TAD1252VE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1631G, TAD1631GE TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE, TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD740GE TAD741GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TD100G-87, TD100GG-87, TID100K-87, TID100KG-87 TD100HP-87, TD100HPB-87, TID100KP-87, TID100KPB-87 TD1010G, TWD1010G TD121GG-87, TD121GGP, TID121KG, TID121LG TD121GP-87, TWD1210P, TWD1211P TD164KAE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME TD610V, TD630VE, TD640VE TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD71A, TID71A TD61AP TD61AW, TD71AW TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD71AG, TID71AG TD71AP, TID71AP TD730ME, TWD730ME, TWD731ME THD102KD, THD102KB TID100KGP-87 TID121LP-87 TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G, TWD1630G TWD1630G TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE TWD610P TWD610P, TWD710P, TAD730P TWD610V TWD610V, TWD630VE TWD710G TWD710P, TAD730P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Aftercooler, SN1201090022- Air Compressor Knorr LP4967 Circulation pump for Aftercooler Closed Crankcase Ventilation: A Closed Crankcase Ventilation: B Collecting Pipe Collecting Pipe: EARLIER PRODUCTION Collecting Pipe: LATER PRODUCTION Collecting Pipe: SENARE UTFÖRANDE Contacts and Sensors Control Unit and Cables, Gearbox Cooling System, SN120109002- Electrical System, SN1201090022- Electronic Speed Control Engine Heater, Block Mounted Exhaust Pressure Regulator External Cooling System, Expansion Tank Flywheel and Flywheel Housing for Allison MD3060 Flywheel and Flywheel Housing for Allison MT643, MT653 Flywheel and Flywheel Housing for Clark 28000/32000 Flywheel and Flywheel Housing for Clark 32000, C320 Flywheel and Flywheel Housing for Flexible Coupling and 11,5'' Friction Clutch Flywheel and Flywheel Housing for ZF WG 180/200 with Converter 340 Flywheel and Flywheel Housing for ZF WG 180/200 with Converter HN500 Flywheel and Flywheel Housing for ZF WG180/190/200/201/210 with Converter 300 Flywheel and Flywheel Housing for ZF WG200 with Converter 340, 4-Hole Flexplate Flywheel Housing Flywheel Housing for One Starter Motor Flywheel Housing, SN2160017140-: A Flywheel Housing, SN2160017140-: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Fuel System Gearbox Cooling Hydraulic Pump Induction Manifold and Intercooler Injectors, Pressure Pipes and Leak-off Line, SN1201090022- Inlet Manifold Inlet Manifold and Aftercooler Inlet Manifold: B Lubricating Oil Tank Lubricating System Lubricating System with 180° Turnable Oil Sump Manual Speed Control Manual Speed Control, Earlier Production Manual Speed Control: A Manual Speed Control: B Plastic Expansion Tank Pneumatical Stop Control Radiator and Fan Radiator and Fan D=750mm Radiator and fan D=890mm Speed Control, Control Cable Type: B Water Pump for Aftercooler, High Mounting Water Pump for Aftercooler, Low Mounting |
| Specification | |
| Descriptions | Early type For THD102KB, THD102KD and DH10A prod.nr 868835. L=20mm M6x20mm |
Related Products
Tags: Flange screw, Volvo Penta, 946934
