Flange screw 949578

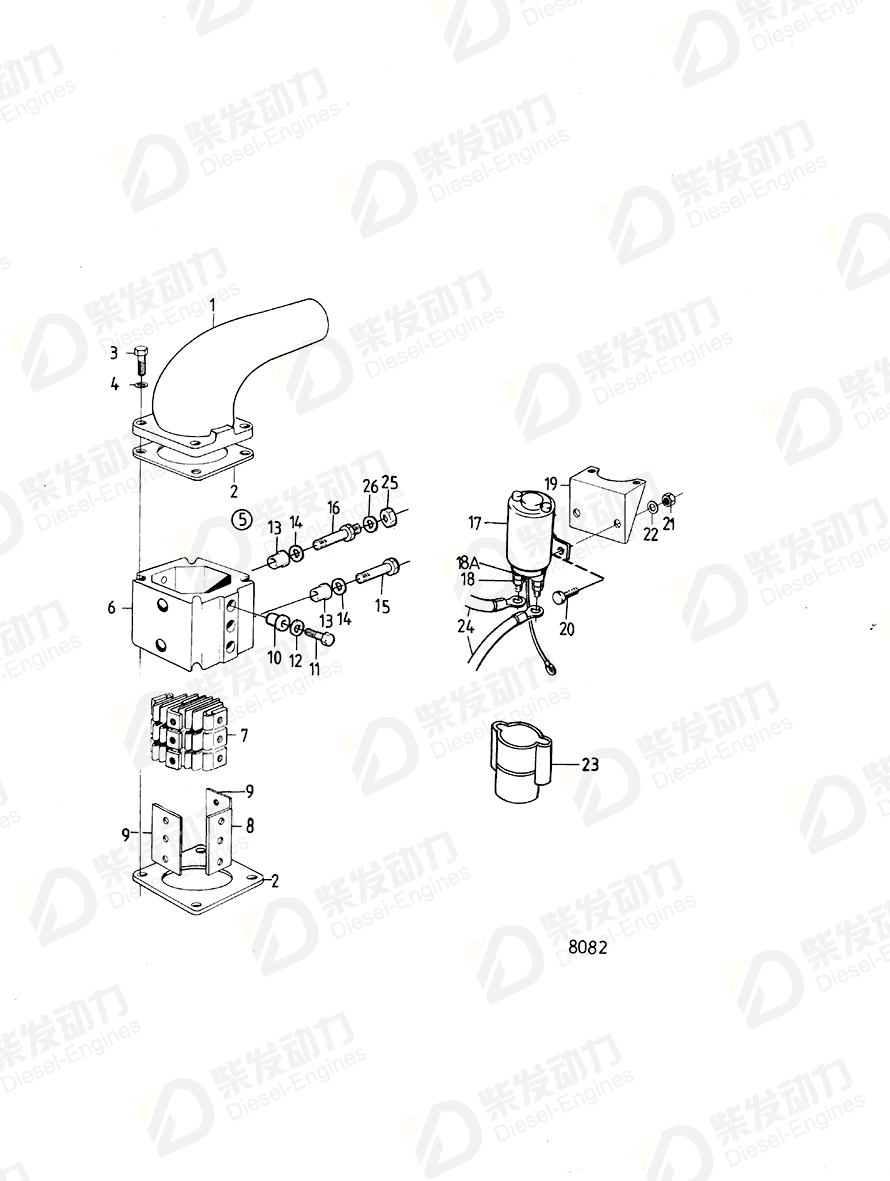

| No. | Part Name | Part Number | Qty | Description |
| 1 | Connecting pipe | 842001 | 1 | For engine with starting element |
| 2 | Gasket | 466436 | 2 | |
| 3 | Hexagon screw | 955531 | 4 | Late type |
| 4 | Spring washer | 941907 | 2 | |
| 4 | Washer | 955894 | 2 | |
| 5 | Starter element, starter element | 846848 | 1 | For engine with starting element., (843207) |
| 8 | Insulating plate | 471212 | 1 | |
| 9 | Insulating plate | 471211 | 2 | |
| 10 | Sleeve | 468468 | 3 | |
| 11 | Flange screw | 949652 | 3 | Late type |
| 12 | Washer | 191156 | 3 | |
| 13 | Bushing | 468511 | 4 | |
| 14 | Washer | 192288 | 4 | |
| 15 | Flange screw | 949578 | 2 | |
| 16 | Terminal screw | 468825 | 2 | |
| 17 | Relay | 1577376 | 1 | 24V 150A |
| 18 | Hexagon nut | 17624 | 2 | |
| 19 | Attaching plate | 843400 | 1 | |
| 20 | Hexagon screw | 955244 | 2 | |
| 21 | Lock nut | 963104 | 2 | |
| 22 | Washer | 940090 | 2 | |
| 23 | Casing | 1581123 | 1 | |
| 25 | Hexagon nut | 17624 | 2 | |
| 26 | Washer | 955894 | 2 | |
| 18A | Washer | 955894 | 2 |
| Item | Part Name | Part No. |
| 15 | Flange screw 949578 | 949578 |
| Details | |
| Engine model | TD60D-83 TD70G-83 |
| Application | Starter Element STARTING ELEMENT WITH INSTALLATION COMPONENTS |
