Flange screw 949846

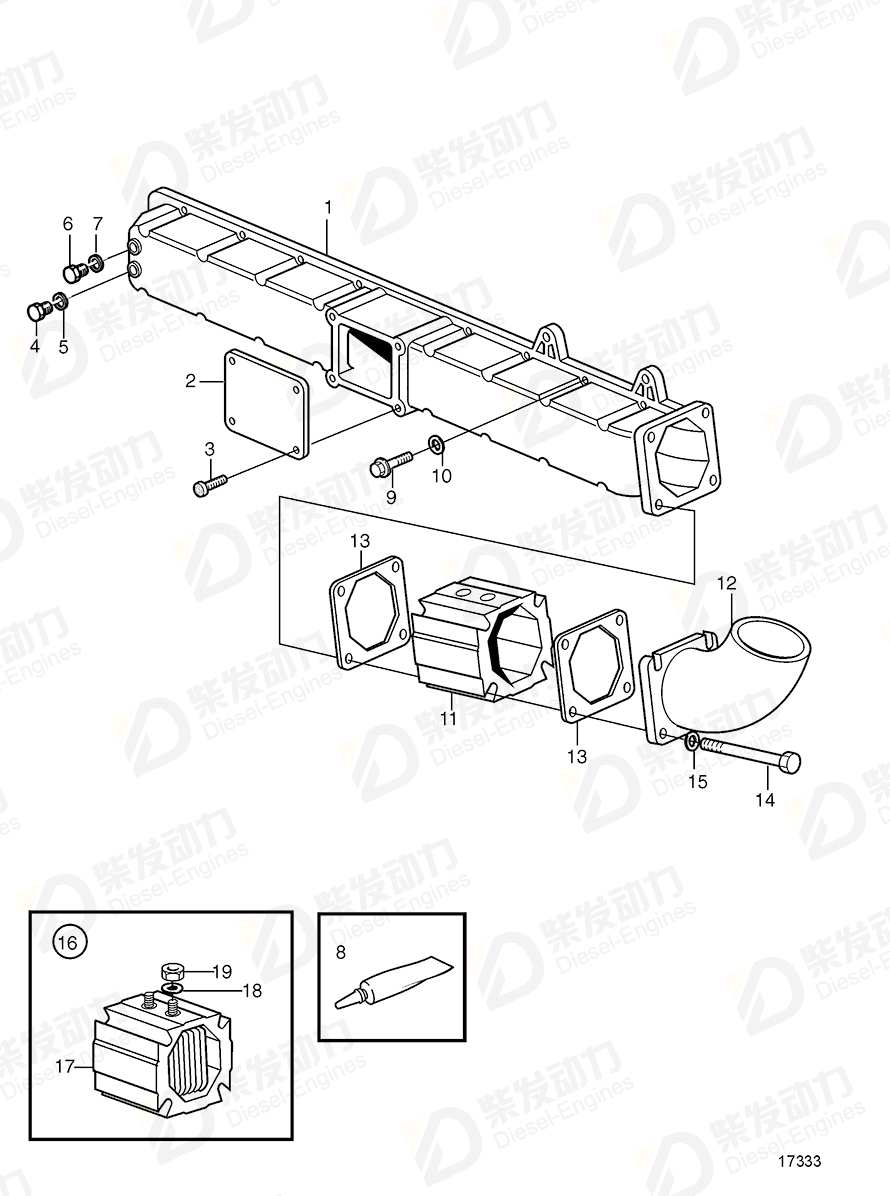

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 8192910 | 1 | |
| 2 | Cover | 1675599 | 1 | |
| 3 | Flange screw | 949846 | 4 | |
| 4 | Plug | 960629 | 1 | |
| 5 | Gasket | 11994 | 1 | |
| 6 | Plug | 960628 | 1 | |
| 7 | Gasket | 18665 | 1 | |
| 8 | Sealant | 1161231 | 1 | 304ml |
| 9 | Flange screw | 965183 | 17 | |
| 10 | Spring washer | 941907 | 17 | |
| 11 | Spacer | 4772229 | 1 | |
| 12 | Charge air pipe | 3827034 | 1 | |
| 13 | Gasket | 424619 | 2 | |
| 14 | Flange screw | 965184 | 4 | |
| 15 | Washer | 120265 | 4 | |
| 16 | Starter element | 848959 | 1 | 24V |
| 18 | Washer | 955894 | 2 | |
| 19 | Hexagon nut | 17624 | 2 |
| Item | Part Name | Part No. |
| 3 | Flange screw 949846 | 949846 |
| Details | |
| Engine model | TAD740GE, TAD741GE TD610M, TD630ME, TWD630ME TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD61AW, TD61ACE, TD61AG, TD61AP, TID61AG TD630VE, TWD630VE TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TD730ME, TWD730ME, TWD731ME TD730ME, TWD731ME TWD610P TWD630ME TWD710P, TAD730P |
| Application | Inlet Manifold Oil Cooler Oil Cooler with Bracket for Shut-off Valve Oil Cooler with Installation Components Oil Cooler, Engine, with Bracket for Shut-off Valve Oil Cooler, Engine, with Bracket for Shut-off Valve: A Oil Cooler, Engine, with Bracket for Shut-off Valve: B Oil Cooler: A Oil Cooler: B Starter Element |
| Specification | |
| Descriptions | L=20mm M8X20 Tapping screw., L=20mm Tapping screw., M8x20mm |
Related Products
Tags: Flange screw, Volvo Penta, 949846
