Flange screw 965181

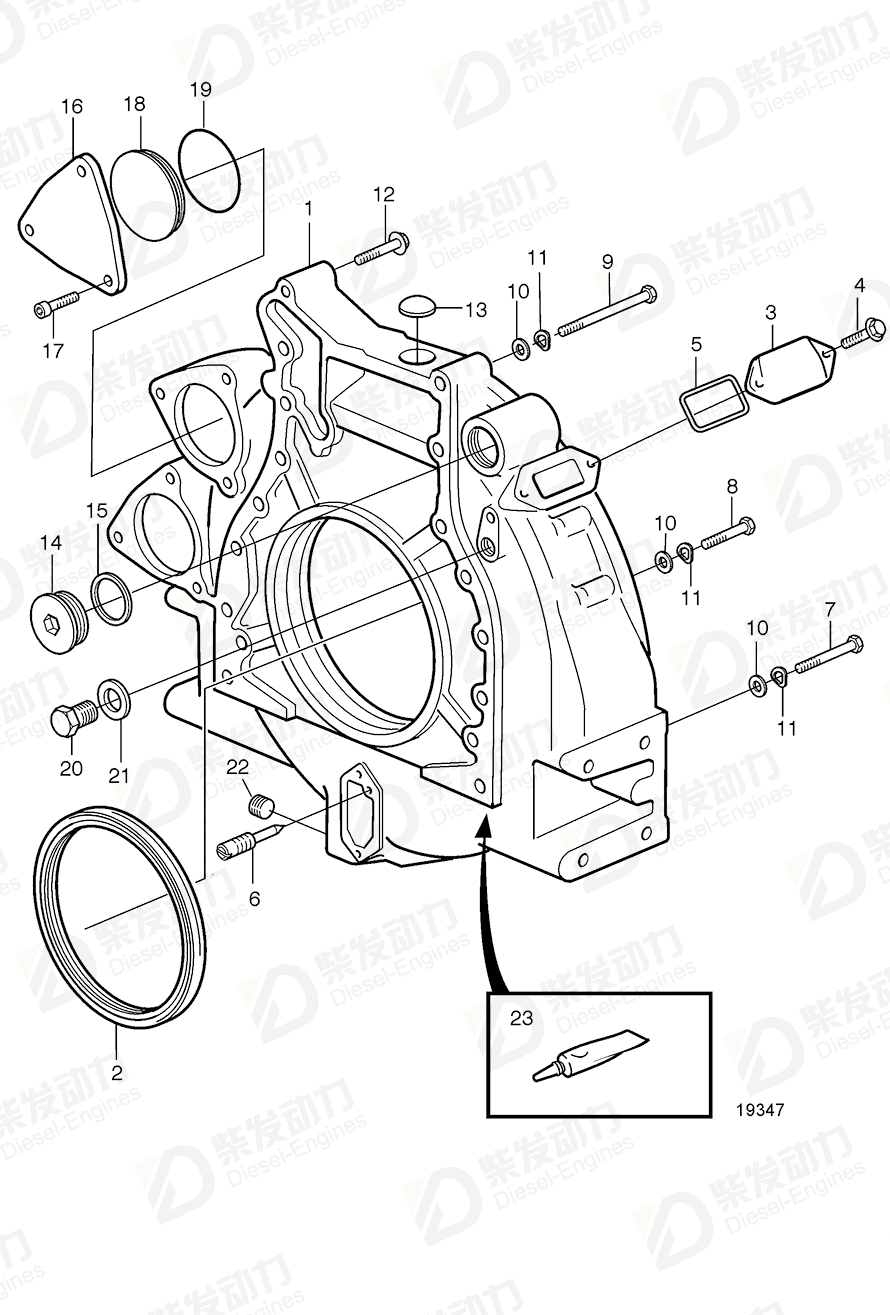

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 3837156 | 1 | When breather pipe for crankcase is to be attached, knock out plug 955100., (11032061) |
| 2 | Crankshaft seal | 85108352 | 1 | |
| 3 | Cover | 4772168 | 2 | |
| 4 | Flange screw | 946934 | 4 | |
| 5 | Gasket | 4804167 | 2 | |
| 6 | Setting indicator | 1543173 | 1 | (4772141) |
| 7 | Hexagon screw | 971005 | 2 | |
| 8 | Hexagon screw | 971003 | 10 | |
| 9 | Hexagon screw | 971008 | 2 | |
| 10 | Washer | 955899 | 14 | |
| 11 | Spring washer | 941911 | 14 | |
| 12 | Flange screw | 965181 | 1 | |
| 13 | Expansion plug | 955100 | 1 | When breather pipe for crankcase is to be attached, knock out plug 955100. |
| 14 | Plug | 467367 | 1 | |
| 15 | Gasket | 1556907 | 1 | |
| 16 | Cover | 849135 | 1 | |
| 17 | Hex. socket screw | 959253 | 3 | |
| 18 | Cover | 11032027 | 1 | |
| 19 | O-ring | 967344 | 1 | |
| 20 | Plug | 180761 | 1 | |
| 21 | Gasket | 11996 | 1 | |
| 22 | Plug | 968145 | 1 | (952357) |
| 23 | Sealant | 1161231 | 1 | 304ml |
| 23 | Sealant | 1161277 | 1 | 20g |
| Item | Part Name | Part No. |
| 12 | Flange screw 965181 | 965181 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB TAD1240GE, TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TAD1250VE, TAD1251VE, TAD1252VE TAD1341GE, TAD1342GE, TAD1343GE, TAD1344GE, TAD1345GE, TAD1350GE, TAD1351GE, TAD1352GE, TAD1353GE, TAD1354GE, TAD1355GE TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TD164KAE TD31ACE TD610M, TD630ME TD610V, TD630VE, TD640VE TD610V, TWD610V, TD630VE, TWD630VE TD61A, TD61AW TID61AG TID71A TID71A, TWD710V TID71AG TID71AP TWD1240VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD1620G, TWD1630G TWD1630G TWD610G TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD730ME, TWD731ME TWD731VE |
| Application | Air Compressor &Knorr &LP48 &Ess Air Compressor Knorr LP48 Air Compressor Knorr LP48 ESS Air Filter Fan and Fanring Flywheel Housing Flywheel Housing, SN2160017140-: A Flywheel Housing, SN2160017140-: B Fuel System, Venting SN20130227625- Induction Manifold and Installation Components Induction Manifold and Installation Components: A Induction Manifold and Installation Components: B Induction Manifold and Installation Components: TID71AGP Induction Manifold and Installation Components: TID71APB Inlet Manifold Inlet Manifold with Starter Element 1-pole: A Inlet Manifold with Starter Element 1-pole: B Inlet Manifold: A Inlet Manifold: B Lubricating System with Low Oil Sump Oil Pump, Components: 420867 Oil Pump: 420867 Oil Pump: 471570 Oil Pump: 471733 Stop Solenoid 24V, Energized to Stop. Stop Solenoid and Installation Components Thermostat and Water Pump with Installation Components Timing Gear Casing and Gears Timing Gear Housing Timing Gear Housing, closed front end Water Pump, Thermostat Housing and Water Filter Water Pump, Thermostat Housing and Water Filter. Earlier Production Water Pump, Thermostat Housing and Water Filter. SN-2012326598 Water Pump, Thermostat Housing and Water Filter. SN2012326599- Water Pump, Thermostat Housing and Water Filter. with Air Compressor Mounted |
| Specification | |
| Descriptions | L=70mm Used when extra water pump is low mounted., L=70mm |
