Flange screw 965187

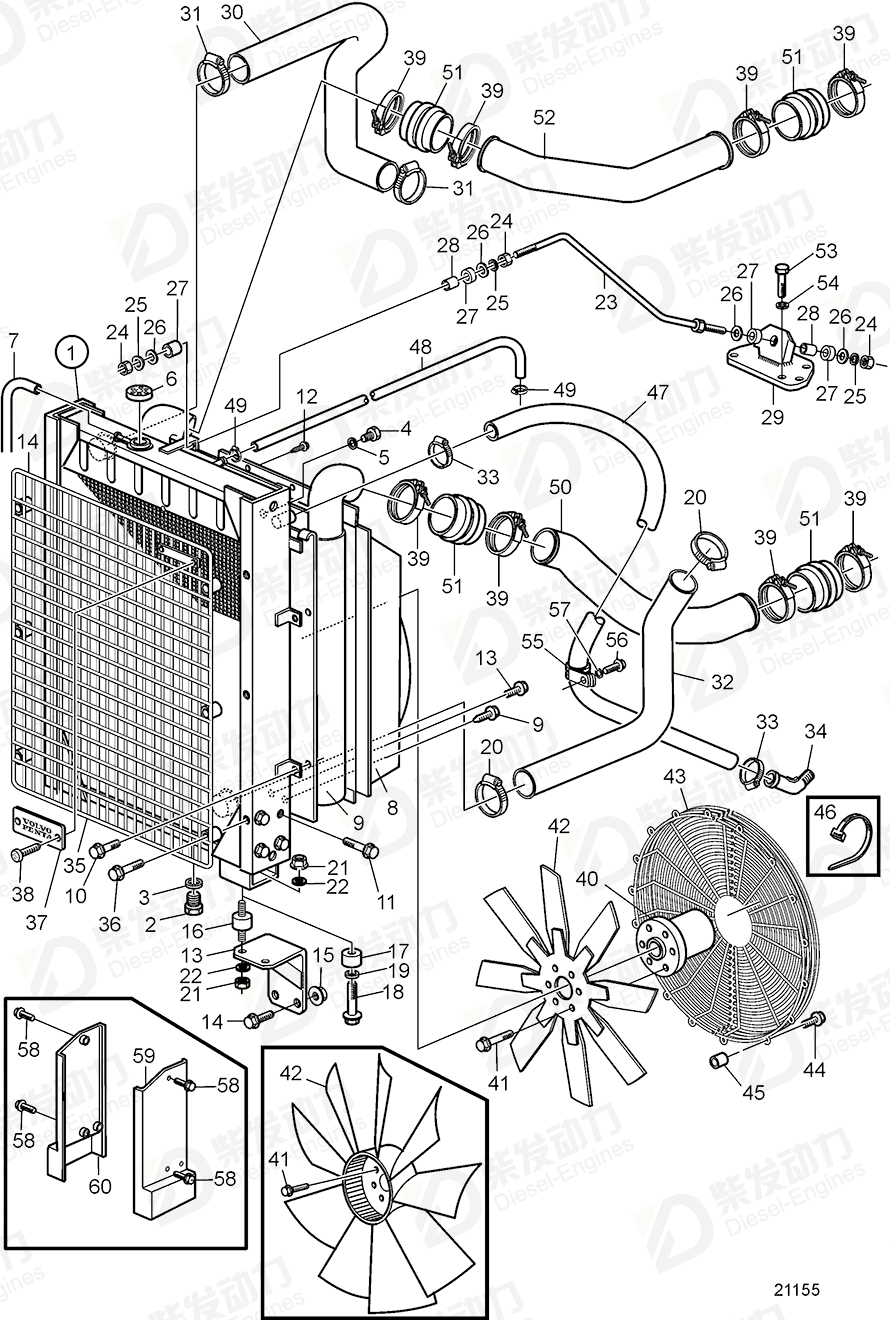

| No. | Part Name | Part Number | Qty | Description |
| 1 | Radiator | 866092 | 1 | |
| 2 | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 3 | Gasket | 969011 | 1 | |
| 4 | Plug | 947660 | 1 | (836268) |
| 5 | Gasket | 11994 | 1 | |
| 6 | Pressure cap | 866095 | 1 | (350578) |
| 7 | Hose | 192618 | 1 | L=1400mm |
| 8 | Fan shroud | 3825748 | 1 | SNXXXXXXXXXX/277520- |
| 9 | Charge air cooler | 866093 | 1 | |
| 10 | Flange screw | 946173 | 4 | |
| 11 | Flange screw | 973924 | 8 | |
| 12 | Flange screw | 966862 | 8 | |
| 13 | Radiator bracket | 865785 | 2 | |
| 14 | Flange screw | 946817 | 4 | |
| 15 | Flange nut | 971096 | 4 | |
| 16 | Rubber cushion | 849170 | 2 | |
| 17 | Spacer | 866856 | 2 | When rubber cushions not been used for the radiator. |
| 18 | Flange screw | 946502 | 4 | When rubber cushions not been used for the radiator., L=20mm |
| 19 | Spring washer | 940280 | 4 | |
| 20 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 21 | Hexagon nut | 955850 | 4 | |
| 22 | Spring washer | 940280 | 4 | |
| 23 | Radiator stay | 865181 | 1 | |
| 24 | Hexagon nut | 955793 | 3 | |
| 25 | Spring washer | 941912 | 3 | |
| 26 | Washer | 191940 | 4 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Spacer sleeve | 252202 | 2 | |
| 29 | Anchorage | 1660904 | 1 | |
| 30 | Hose, therm. housing | 865283 | 1 | |
| 31 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 32 | Hose, cool. water pipe | 865284 | 1 | |
| 33 | Hose clamp | 994560 | 2 | |
| 34 | Elbow nipple | 942649 | 1 | |
| 35 | Radiator protector | 865159 | 1 | |
| 36 | Flange screw | 947760 | 6 | M8x40mm |
| 37 | Emblem | 846118 | 1 | |
| 38 | Screw | 941651 | 2 | |
| 39 | Hose clamp | 865575 | 8 | |
| 40 | Fan hub | 865768 | 1 | |
| 40 | Fan hub | 3829422 | 1 | For plasticfan |
| 41 | Flange screw | 946472 | 6 | |
| 41 | Flange screw | 965187 | 6 | |
| 42 | Fan, suction type | 843868 | 1 | D=750mm |
| 42 | Fan, pusher type | 865324 | 1 | D=750mm |
| 42 | Fan | 3827491 | 1 | Suction type |
| 42 | Fan | 3827492 | 1 | Pusher type. |
| 43 | Fan guard | 3825616 | 2 | SNXXXXXXXXXX/277520- |
| 44 | Flange screw | 945444 | 12 | |
| 44 | Flange screw | 966807 | 12 | |
| 45 | Spacer washer | 946048 | 12 | |
| 46 | Cable tie | 948211 | 1 | |
| 47 | Rubber hose | 944386 | 1 | |
| 48 | Rubber hose | 943367 | 1 | L=1700mm |
| 49 | Hose clamp | 994556 | 2 | |
| 50 | Charge air pipe, turbo | 865183 | 1 | |
| 51 | Charge air hose | 865127 | 4 | |
| 52 | Charge air pipe | 889582 | 1 | |
| 53 | Hexagon screw | 955523 | 4 | |
| 54 | Spring washer | 941907 | 4 | |
| 55 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 56 | Six point socket scr | 972603 | 1 | |
| 57 | Washer | 960138 | 1 | |
| 58 | Flange screw | 946470 | 4 | |
| 59 | Radiator casing | 3837474 | 1 | Right |
| 60 | Radiator casing | 3837475 | 1 | Left |
| Item | Part Name | Part No. |
| 41 | Flange screw 965187 | 965187 |
| Details | |
| Engine model | TAD1030GE TAD1030V TAD1031GE TAD1032GE TAD1240GE, TAD1241GE, TAD1242GE TAD730G TAD730P TAD740GE TAD740GE, TAD741GE TAD741GE TD164KAE TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TD630VE, TWD630VE TD61A, TD61AW, TD71A, TD71AW, TID71A TD640VE TD710G TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TWD1240VE TWD630ME TWD710G TWD730ME TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Crankshaft Mounted Fan Crankshaft Mounted Fan *late Production Cylinder Block Fan Fan SN 2071145378- Flywheel and Flywheel Housing for Allison MD3060, SAE 2, Vehicle Type Flywheel and Flywheel Housing for Allison MD3060, Vehicle Type Flywheel and Flywheel Housing for Clark 28000/32000 with Converter 270/320, Vehicle Type Flywheel and Flywheel Housing for ZF WG200 with Converter 340, Vehicle Type Flywheel and Flywheel Housing SAE 2 for Allison MT643, MT653, Vehicle Type Flywheel Housing SAE 2, Vehicle Type Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter. Standard Fuel System: C Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C Radiator and Fan Radiator and Fan: A Radiator and Fan: B Relay for Starter Element Timing Gear Casing and Gears Timing Gear Casing and Gears, SN-2071082971 Timing Gear Casing and Gears, SN2071082972- Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Water Pump and Thermostat Housing Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B |
| Specification | |
| Descriptions | For 3829422 For plastic fan L=60mm M10x60mm |
