Flange screw 967949

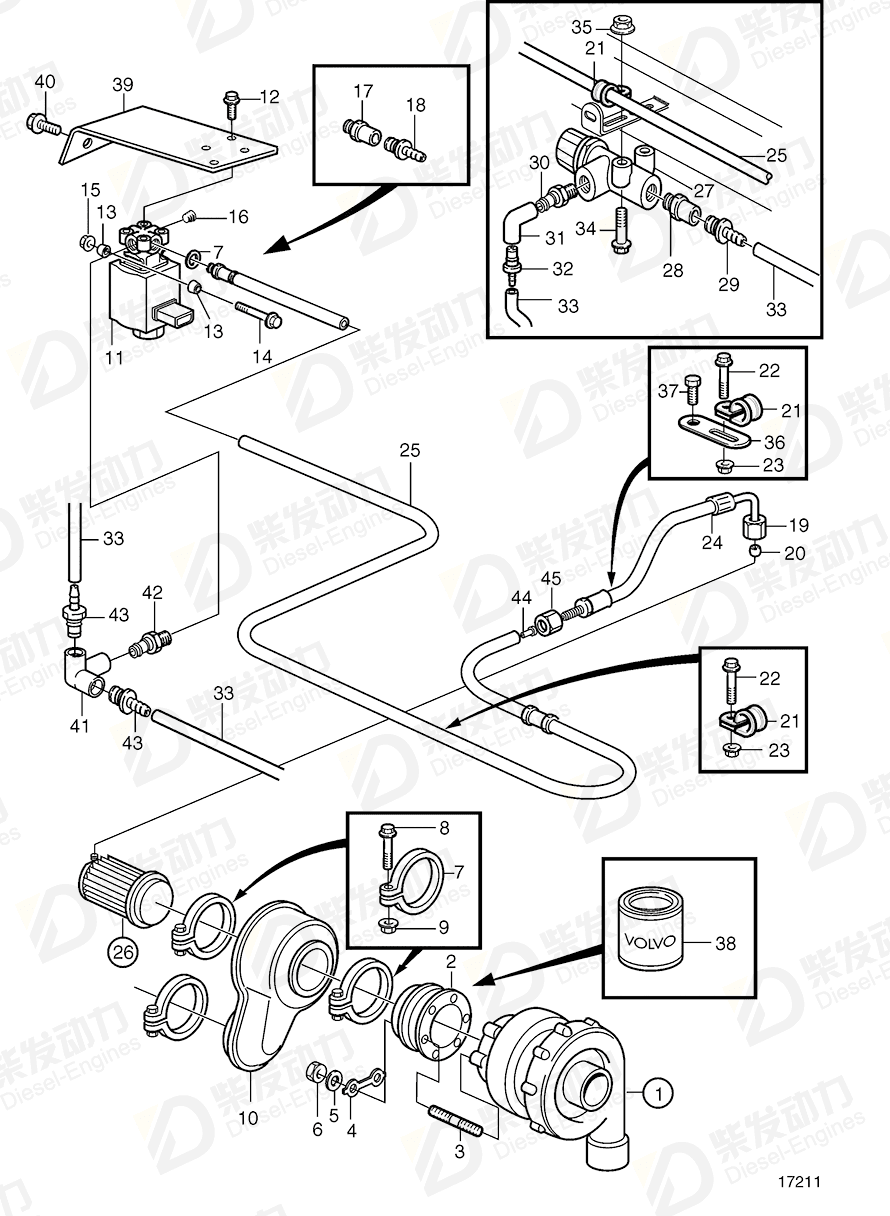

| No. | Part Name | Part Number | Qty | Description |
| 2 | Diffuser | 9515968 | 1 | |
| 3 | Stud | 949702 | 6 | |
| 4 | Tab washer | 949870 | 3 | |
| 5 | Spacer washer | 949873 | 6 | |
| 6 | Hexagon nut | 946330 | 6 | |
| 7 | V-clamp | 467310 | 2 | |
| 8 | Flange screw | 973924 | 2 | |
| 9 | Flange lock nut | 948645 | 2 | |
| 10 | Shutter housing | 8151868 | 1 | |
| 11 | Solenoid valve | 8158342 | 1 | |
| 12 | Flange screw | 967949 | 2 | |
| 13 | Washer | 1589391 | 2 | |
| 14 | Flange screw | 965176 | 1 | |
| 15 | Flange lock nut | 949278 | 1 | |
| 16 | Plug | 968061 | 1 | |
| 17 | Nipple | 968695 | 1 | |
| 18 | Nipple | 976444 | 1 | |
| 19 | Fitting nut | 954356 | 1 | |
| 20 | Sleeve | 954364 | 1 | |
| 21 | Clamp | 952625 | 4 | |
| 22 | Flange screw | 946934 | 2 | |
| 23 | Flange lock nut | 949278 | 2 | |
| 24 | Hose assembly | 948525 | 1 | |
| 25 | Leak-off line | 479690 | 1 | |
| 27 | Reducing valve | 20399145 | 1 | |
| 28 | Nipple | 968695 | 1 | |
| 29 | Nipple | 976444 | 1 | |
| 30 | Nipple | 969324 | 1 | |
| 31 | Elbow nipple | 976958 | 1 | |
| 32 | Nipple | 976444 | 1 | |
| 33 | Tube | 980831 | 1 | L=2220mm |
| 34 | Flange screw | 965177 | 2 | |
| 35 | Flange lock nut | 949278 | 2 | |
| 36 | Bracket | 965536 | 2 | |
| 37 | Hexagon screw | 955560 | 2 | |
| 38 | Sealant | 591247 | 1 | |
| 40 | Flange screw | 946440 | 2 | |
| 41 | 3-way nipple | 976752 | 1 | |
| 42 | Nipple | 969324 | 1 | |
| 43 | Nipple | 976444 | 2 | |
| 44 | Nipple | 975539 | 1 | |
| 45 | Fitting nut | 954356 | 1 |
| Item | Part Name | Part No. |
| 12 | Flange screw 967949 | 967949 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1030G TAD1030GE, TAD1031GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1030V, TWD1031VE TAD1032GE TAD1230G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1230V TAD1230V, TWD1230VE TAD1240GE, TAD1241GE TAD1242GE TAD1630G, TAD1630GE TAD1630P, TWD1630P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD520GE TAD520GE, TAD720GE, TAD721GE, TAD722GE TAD520VE TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD530GE, TAD531GE TAD532GE TAD550GE, TAD551GE TAD550GE, TAD551GE, TAD750GE, TAD751GE TAD560VE, TAD561VE TAD620VE TAD650VE, TAD660VE TAD720GE TAD720GE, TAD730GE, TAD731GE TAD720VE, TAD721VE, TAD722VE TAD721GE, TAD722GE TAD730G TAD730GE, TAD731GE TAD730P TAD730V TAD732GE, TAD733GE TAD734GE TAD740GE, TAD741GE TAD750GE, TAD751GE TAD750VE TAD750VE, TAD760VE TAD752GE, TAD753GE, TAD754GE TAD761VE, TAD762VE, TAD763VE, TAD764VE, TAD765VE TAD940GE TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TAD941GE TD100G-87 TD1010G, TWD1010G TD1030VE TD121G-87 TD121G-87, TWD1210V, TWD1211V TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121GP-87 TD164KAE TD420VE, TAD420VE, TAD620VE TD520GE TD520GE, TAD530GE, TAD531GE, TAD532GE, TD720GE, TAD720GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TD520GE, TAD530GE, TAD531GE, TD720GE, TAD720GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TD520VE TD520VE, TD720VE TD610G, TWD610G TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD610M TD610M, TD630ME TD610V TD610V, TWD610V, TWD630VE, TD640VE TD630VE TD640VE TD710G TD710G, TWD710G TD71A, TD730VE, TAD730V TD71A, TD730VE, TWD731VE TD71A, TID71A TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TD71A, TWD710V, TWD731VE, TAD730V TD720GE TD720GE, TAD720GE TD720VE TD730ME TD730ME, TWD730ME, TWD731ME TD730ME, TWD731ME TD730VE, TWD731VE THD102KD, THD102KB TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TID71A, TWD710V TID71A, TWD710V, TWD731VE TWD1010G TWD1031VE TWD1210G, TWD1211G TWD1210P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V TWD1210V, TWD1211V, TWD1230VE TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1231VE TWD1240VE TWD1620G TWD1620G, TWD1630G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V TWD610P, TWD710P, TAD730P TWD610V, TWD630VE TWD710G TWD710G, TAD730G TWD710P, TAD730P TWD710V, TAD730V TWD730ME TWD730ME, TWD731ME TWD731ME TWD731VE TWD740GE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Air Compressor 15.5 W31 Air Compressor Knorr LP48 ESS Air Compressor PTO A 225cm³ Air Compressor PTO A 360cm³ Air Compressor PTO A 720cm³ Air Compressor Wabco 704 Air Filter Belt Guard Belt Guard for Engine with Radiator Cooling Belt Guard, Earlier Production Belt Guard, Later Production Belt Guard, SN2100277341-2100281207 Belt Guard, SN2100277341-: SN-2100309241 Belt Guard, SN2100277341-: SN2100309242- Belt Guard, SN2100281208- Belt Guard, SN2120230580- Belt Guard: ALT 1 Belt Guard: ALT 2 Belt Guard: ALT 3 Bracket for loose mounted ECU Bracket for wiring harness with ECU Bracket for wiring harness with mounted ECU Contacts and Sensors Control Motor for Speed Control Cooling System Cooling System, Motor Specification Number: 869335 Cooling System, Motor Specification Number: 869336 Cooling System, Motor Specification Number: 869337 Cooling System, Motor Specification Number: 869338 Coupling for Fuel Injection Pump with Cover Coupling for Fuel Injection Pump with Cover: A Coupling for Fuel Injection Pump with Cover: B Cover Plate for Flywheel Housing Crankcase Ventilation Crankcase Ventilation, Earlier Production Crankcase Ventilation, Open Crankcase Ventilation, Std. with Radiator Crankcase Ventilation, without Radiator Crankcase Ventilation. Flat Valve Cover Crankcase Ventilation. High Mounted Turbo. Stage 2, Tier 2 Crankcase Ventilation. Standard Valve Cover Crankcase Ventilation. Standard Valve Cover, Earlier Production Cylinder Block Cylinder Block: A Cylinder Block: B Cylinder Block: C Electronic Speed Control Exhaust Manifold, High Mounted Turbo Exhaust Pipe Exhaust Pipe: A Exhaust Pipe: B Exhaust Pressure Regulator Expansion Tank with Connection Components Expansion Tank with Connection Components SN-10914162 Expansion Tank with Connection Components SN10590632-10944313 Expansion Tank with Connection Components SN10914163- Flywheel and Flywheel Housing for Allison MD3060 Flywheel and Flywheel Housing for Allison MT643, MT653 Flywheel and Flywheel Housing SAE 1 for 14'' Disc, Vehicle Type Flywheel Housing SAE 1 Flywheel Housing SAE 1, Vehicle Type Flywheel Housing SAE 2 Flywheel Housing SAE 3 Flywheel Housing, SAE 1 for 14'' Disc Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel line and bracket Fuel line and bracket with mounted ECU Fuel line and bracket with remote mounted ECU Fuel System Fuel System for Separate Fan Bracket SN 0738075- Fuel System for Separate Fan Bracket SN-0738074 Fuel System with Electronic Speed Control Gearbox with Connecting Parts Heat Protection Heat Shield for Exhaust Manifold and Turbo Induction Manifold and Intercooler Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump, Fuel Filter and Shut-off Valve Inlet Manifold Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Inlet Manifold, Air Intake Left Side Lubricating System Lubricating System with Central Oil Sump Lubricating System, Standard Manual Speed Control Manual Speed Control SN-1101042674/XXXXXX Manual Speed Control SN1101042675/XXXXXX Manual Speed Control, Later Production Manual Speed Control: A Manual Speed Control: B Manual Speed Control: C Pneumatical Stop Control Radiator and Fan Radiator and Fan. Power Pac Radiator and Fan. Pusher Radiator and Fan. Pusher. 1, 09:1 Radiator and Plastic Fan Radiator: SN 2071145378- Radiator: SN 2071145378-2071170098 Radiator: SN 2071170098- Radiator: SN-2071145377 Regulator, EPA I, COM I, COM II: 2100rpm Regulator, EPA I, COM I, COM II: 2300rpm Regulator, EPA I, COM I, COM II: 2500rpm Remote Single Fuelfilter Remote Twin Fuelfilter with Crankshaftmounted Fan Speed Control, Control Cable Type Speed Control, Control Cable Type: C Speed Control, Control Rod Type Starter Motor 24V Stop Solenoid Thermostat and Water Pump Turbocharger, Low Mounted Water Pump and Thermostat Housing Water Pump and Thermostat Housing with Bracket for Fan.: A Water Pump and Thermostat Housing with Bracket for Fan.: B Water Pump and Thermostat Housing: A Water Pump and Thermostat Housing: B |
| Specification | |
| Descriptions | (20405729) (965175) 13 Nm For engines with oil tube cooler. For engines with oil tube cooler., TWD610V L=12mm M6x12 (965175) M6x12mm Replaced by 994442 Replaced by protecting plate 3829338., (965175) SN2100298533- |
Related Products
Tags: Flange screw, Volvo Penta, 967949
