Flange screw 968842

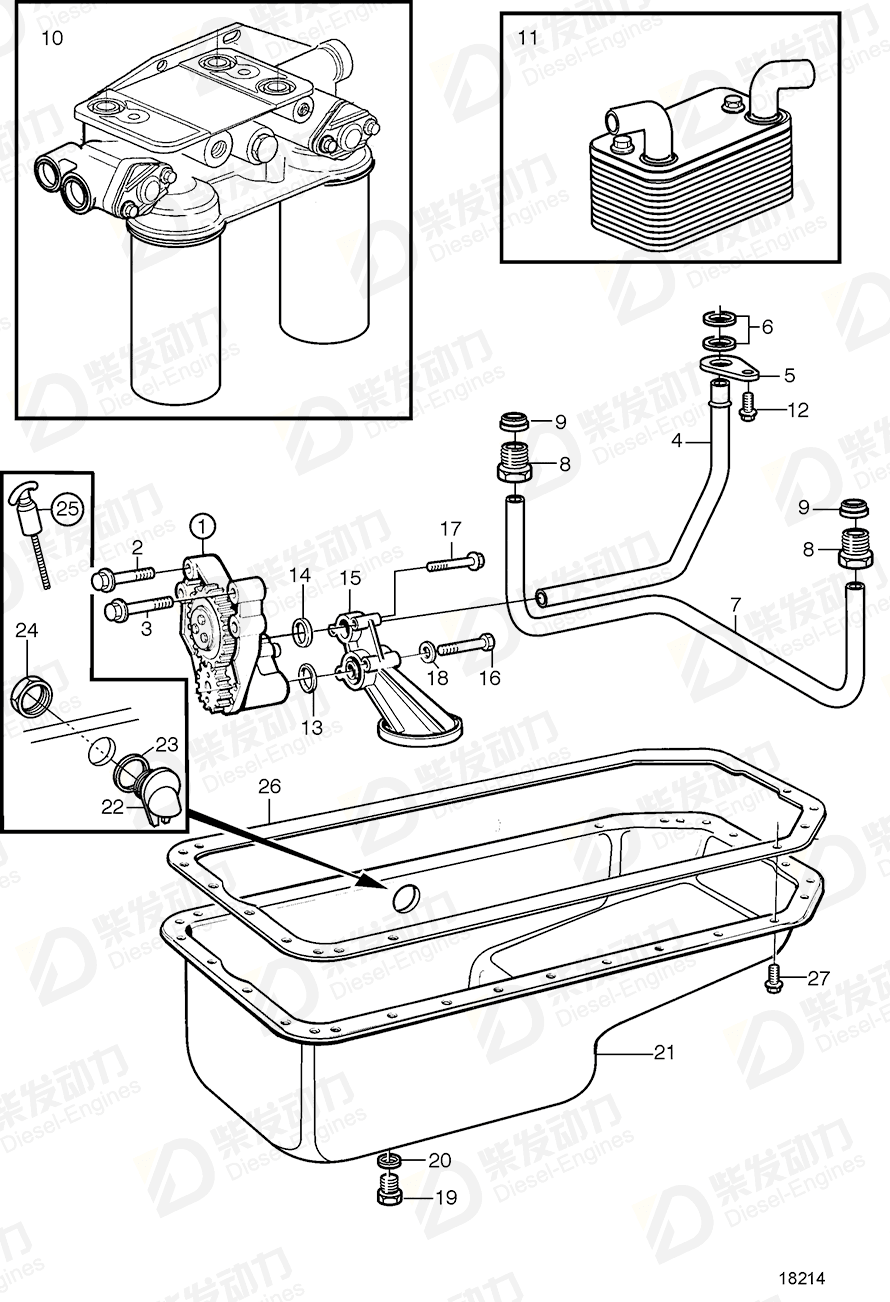

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 477547 | 1 | |
| 2 | Flange nut | 471513 | 4 | |
| 3 | Flange screw | 471734 | 2 | |
| 4 | Oil pressure pipe | 420885 | 1 | |
| 5 | Clamp | 471746 | 1 | |
| 6 | Gasket | 471956 | 2 | |
| 7 | Oil pressure pipe | 420995 | 1 | |
| 8 | Pressure pipe connec | 471595 | 2 | |
| 9 | Ferrule | 980786 | 2 | |
| 12 | Flange screw | 946440 | 1 | |
| 13 | O-ring | 949659 | 1 | |
| 14 | Gasket | 471956 | 1 | |
| 15 | Oil strainer | 420725 | 1 | |
| 16 | Flange screw | 968999 | 2 | L=75mm |
| 17 | Flange screw | 968842 | 2 | L=110mm |
| 18 | Washer | 955894 | 2 | |
| 19 | Magnetic plug | 949175 | 1 | |
| 20 | Gasket | 18813 | 1 | |
| 21 | Sump | 3831135 | 1 | |
| 22 | Retainer | 1543883 | 1 | |
| 23 | Rubber washer | 468947 | 1 | |
| 24 | Hexagon nut | 468948 | 1 | |
| 26 | Gasket | 11030778 | 1 | (865341) |
| 27 | Flange screw | 946440 | 34 |
| Item | Part Name | Part No. |
| 17 | Flange screw 968842 | 968842 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD740GE, TAD741GE TD610M, TD630ME TD610V TD610V, TD630VE TD630VE TD640VE TD710G, TWD710G TD71A TD71A, TID71A, TD730VE, TWD731VE TD730ME TD730ME, TWD730ME, TWD731ME TD730VE TWD1240VE, TAD1241VE, TAD1242VE TWD1240VE, TAD1241VE, TAD1242VE, TAD1250VE, TAD1251VE, TAD1252VE TWD630ME TWD630VE TWD710P TWD730ME, TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Air Filter: A Air Filter: B Heat Shield for Exhaust Manifold and Valve Cover Induction and Exhaust Manifold Induction Manifold, Low Mounted Turbocharger Induction Manifold, Low Mounted Turbocharger: A Inlet Manifold Lubricating System Lubricating System, 10° Inclination, Low Sump: A Lubricating System, 10° Inclination, Low Sump: B Lubricating System, 40° Inclination: A Lubricating System, 40° Inclination: B Lubricating System, Low Noise Sump Lubricating System, Low Noise Sump: C Lubricating System, Low Noise Sump: TD630VE SN2061139523- Lubricating System, SN-2012427926 Lubricating System, SN2012427927- Lubricating System, Standard Lubricating System, Standard: C Lubricating System, Standard: SN2061139523- Lubricating System, Vehicle Type Lubricating System: SN-2061097292 Radiator and Fan Radiator and Fan D=750mm Radiator and fan D=890mm |
| Specification | |
| Descriptions | (965184) (968553) Alt L=110mm M8x110, for 477547 M8x110mm |
