Flange screw 984835

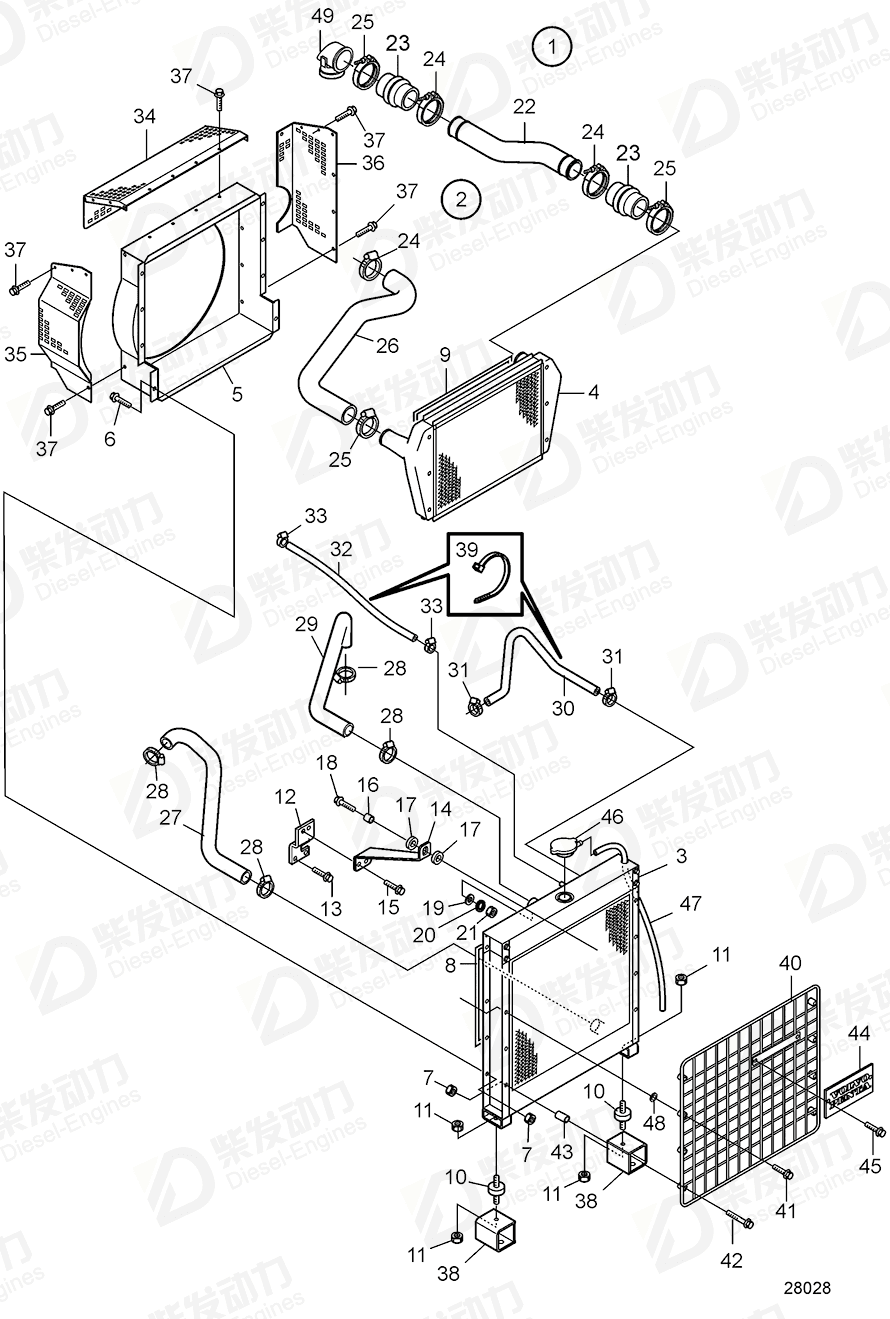

| No. | Part Name | Part Number | Qty | Description |
| 2 | Cooling unit | 3842532 | 1 | |
| 3 | Radiator | 3808951 | 1 | |
| 4 | Charge air cooler | 3808952 | 1 | |
| 5 | Fan shroud | 3842535 | 1 | |
| 6 | Flange screw | 947107 | 1 | |
| 7 | Flange nut | 990940 | 4 | |
| 10 | Vibration damper | 20405749 | 2 | |
| 11 | Flange nut | 971095 | 4 | Alt |
| 12 | Anchorage | 3812672 | 1 | |
| 13 | Flange screw | 946441 | 2 | |
| 14 | Radiator stay | 3808961 | 1 | |
| 15 | Flange screw | 984813 | 2 | |
| 16 | Bushing | 3812681 | 1 | |
| 17 | Rubber bushing | 866857 | 2 | |
| 18 | Flange screw | 984835 | 1 | |
| 19 | Washer | 191940 | 1 | |
| 20 | Spring washer | 941912 | 1 | |
| 21 | Flange nut | 990944 | 1 | |
| 22 | Charge air pipe | 3812900 | 1 | |
| 23 | Charge air hose | 3832458 | 2 | |
| 24 | Hose clamp | 1664785 | 3 | |
| 25 | Hose clamp | 1660379 | 3 | |
| 26 | Charge air hose | 3808953 | 1 | Without Heater |
| 26 | Charge air hose | 3812924 | 1 | When pre heater is mounted |
| 27 | Hose | 3808955 | 1 | |
| 28 | Hose clamp | 994564 | 4 | |
| 29 | Cooling hose | 3808954 | 1 | |
| 30 | Hose | 3808956 | 1 | |
| 31 | Hose clamp | 994560 | 2 | |
| 32 | Rubber hose | 980376 | 1 | |
| 33 | Hose clamp | 943471 | 2 | (951787) |
| 34 | Belt protector | 3808958 | 1 | |
| 35 | Belt protector | 3808960 | 1 | |
| 36 | Belt protector | 3808959 | 1 | |
| 37 | Flange screw | 984724 | 18 | |
| 38 | Radiator anchorage | 3812892 | 2 | |
| 39 | Cable tie | 948702 | 2 | |
| 40 | Radiator protector | 3812282 | 1 | |
| 41 | Flange screw | 947760 | 6 | M8x40mm |
| 42 | Flange screw | 968893 | 2 | |
| 43 | Spacer sleeve | 3812894 | 2 | |
| 44 | Emblem | 846118 | 1 | |
| 45 | Screw | 941651 | 2 | |
| 46 | Filler cap | 21115452 | 1 | |
| 47 | Rubber hose | 949564 | 1 | |
| 48 | O-ring | 947776 | 6 | Replaced by 1pc 1527192 gear and 1pc 1527202 sender., (925083) |
| 49 | Elbow | 3812918 | 1 |
| Item | Part Name | Part No. |
| 18 | Flange screw 984835 | 984835 |
| Details | |
| Engine model | TAD560VE, TAD561VE TAD620VE TAD660VE TAD720VE, TAD721VE |
| Application | Cooling System Cooling System Pusher Cooling System Suction |
Related Products
Tags: Flange screw, Volvo Penta, 984835
