Flange screw 984836

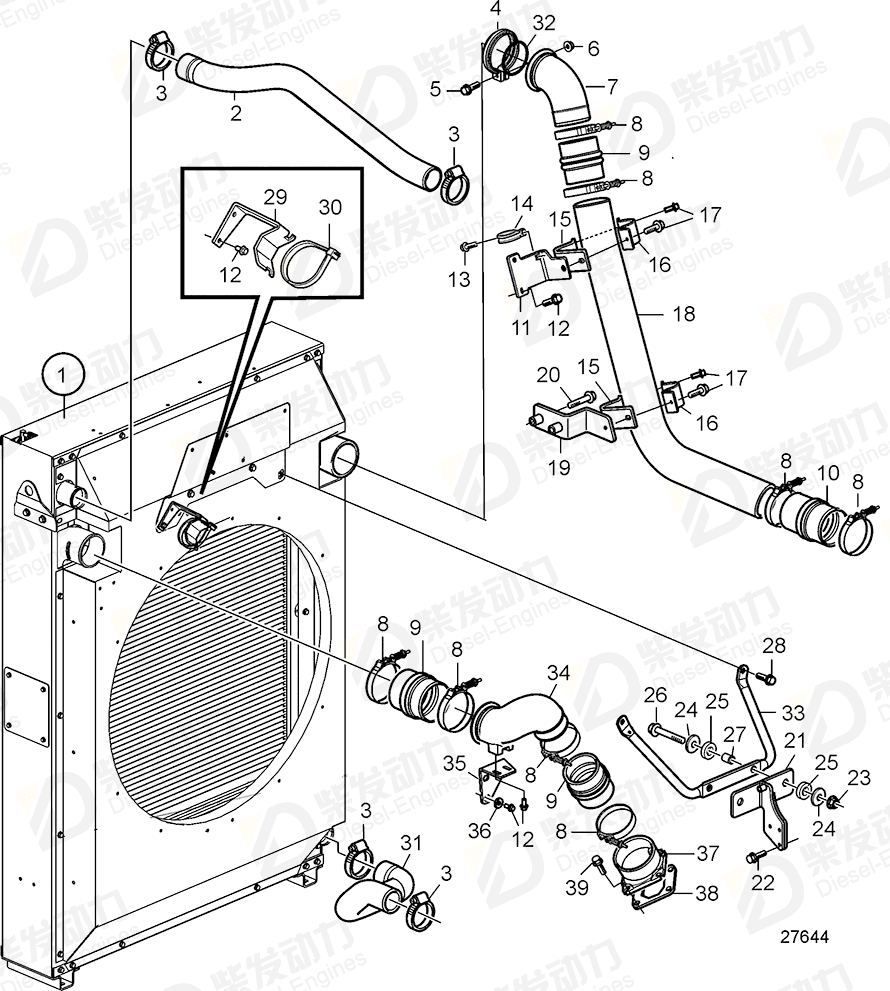

| No. | Part Name | Part Number | Qty | Description |
| 2 | Hose | 22140179 | 1 | |
| 3 | Hose clamp | 994565 | 4 | |
| 4 | V-clamp | 21211715 | 1 | |
| 5 | Flange screw | 994441 | 1 | |
| 6 | Flange lock nut | 990950 | 1 | |
| 7 | Connecting pipe | 22035260 | 1 | |
| 8 | Hose clamp | 20435760 | 8 | |
| 9 | Charge air hose | 3838792 | 3 | |
| 10 | Charge air hose | 3829133 | 1 | |
| 11 | Bracket | 22285210 | 1 | |
| 12 | Flange screw | 984733 | 9 | |
| 13 | Flange screw | 984734 | 1 | |
| 14 | Clamp | 941976 | 1 | |
| 15 | Clamping brace | 22285230 | 2 | |
| 16 | Clamping brace | 22285225 | 2 | |
| 17 | Flange screw | 984734 | 4 | |
| 18 | Charge air pipe | 22494914 | 1 | |
| 19 | Bracket | 22285216 | 1 | Replaced by 22757119 |
| 19 | Bracket | 22757119 | 1 | |
| 20 | Flange screw | 990813 | 2 | |
| 21 | Bracket | 3594409 | 1 | |
| 22 | Flange screw | 984753 | 3 | |
| 23 | Flange nut | 990944 | 2 | |
| 24 | Washer | 948556 | 4 | |
| 25 | Rubber bushing | 866857 | 4 | |
| 26 | Flange screw | 984836 | 2 | |
| 27 | Spacer sleeve | 252202 | 2 | |
| 28 | Flange screw | 984752 | 2 | |
| 29 | Bracket | 22162119 | 1 | |
| 30 | Cable tie | 978435 | 1 | |
| 31 | Hose | 22037699 | 1 | |
| 32 | O-ring | 949647 | 1 | |
| 33 | Stay | 3593807 | 1 | |
| 34 | Connecting pipe | 22446058 | 1 | |
| 35 | Bracket | 22471286 | 1 | |
| 36 | Washer | 976944 | 3 | |
| 37 | Connecting pipe | 22150844 | 1 | |
| 38 | Gasket | 21313833 | 1 | |
| 39 | Flange screw | 984744 | 4 |
| Item | Part Name | Part No. |
| 26 | Flange screw 984836 | 984836 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE, TAD1650GE, TAD1651GE TAD1641VE, TAD1642VE, TAD1643VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1641VE, TAD1642VE, TAD1643VE, TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B TAD1650VE TAD1650VE-B, TAD1651VE TAD1660VE, TAD1661VE, TAD1662VE TAD1670VE, TAD1671VE, TAD1672VE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1643GE, TWD1663GE TWD1652GE, TWD1653GE |
| Application | Radiator and Charge Air Cooler with Connections, Pushing, SN-2016087576 Radiator and Charge Air Cooler with Connections, Pushing, SN2016079648-SN2016084273 Radiator and Charge Air Cooler with Connections, Pushing, SN2016084274-SN2016087576 Radiator and Charge Air Cooler with Connections, Suction, SN2016079648-SN2016087576 Radiator and Charge Air Cooler with Connections. SN2016080036-SN2016087576 Radiator and Charge Air Cooler, Suction, SN-2016087576 Radiator and Fan. Pusher SN2016076785-2016080035 Radiator and Fan. Pusher, SN-2016080035. |
