Flange screw 994451

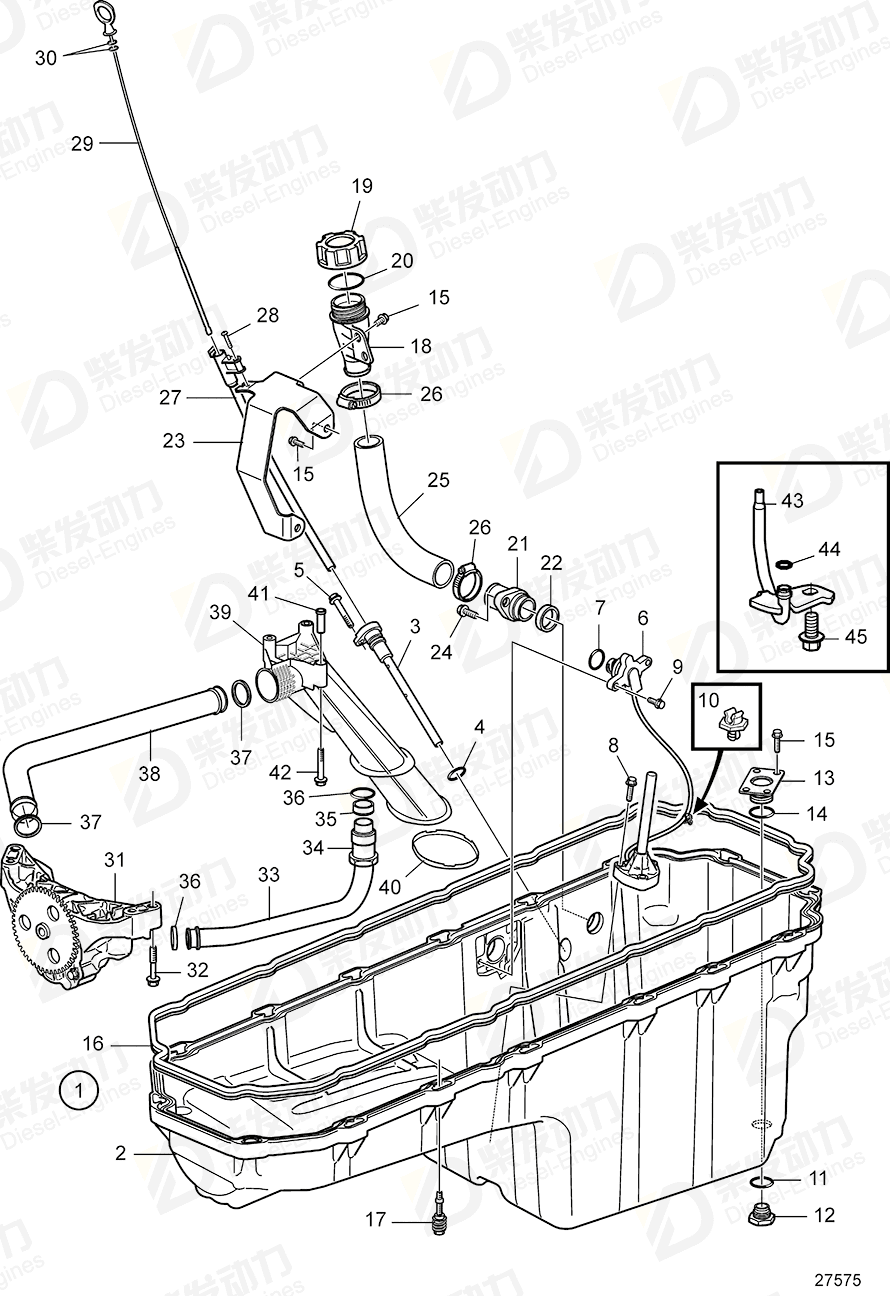

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pan | 20875333 | 1 | |
| 3 | Pipe | 21523327 | 1 | |
| 4 | O-ring | 949656 | 1 | |
| 5 | Flange screw | 984733 | 1 | |
| 6 | Oil level sensor | 22807993 | 1 | |
| 7 | O-ring | 990719 | 1 | |
| 8 | Flange screw | 984728 | 3 | |
| 9 | Flange screw | 984726 | 2 | |
| 10 | Retainer | 20700754 | 2 | |
| 11 | Sealing ring | 20579690 | 1 | |
| 12 | Magnetic plug | 11127354 | 1 | |
| 13 | Retainer | 20839219 | 1 | |
| 14 | O-ring | 20586720 | 1 | |
| 15 | Flange screw | 984733 | 8 | |
| 16 | Sealing strip | 20734156 | 1 | |
| 17 | Flange screw | 21035968 | 16 | Replaced by 22859764 |
| 17 | Flange screw | 22859764 | 16 | |
| 18 | Oil filler pipe | 20808091 | 1 | |
| 19 | Oil filler cap | 20807510 | 1 | |
| 20 | Rubber washer | 20365079 | 1 | |
| 21 | Connection pipe | 20462497 | 1 | |
| 22 | Sealing ring | 21780376 | 1 | |
| 23 | Bracket | 22422487 | 1 | |
| 24 | Flange screw | 984735 | 2 | |
| 25 | Hose | 3831383 | 1 | |
| 26 | Hose clamp | 994561 | 2 | |
| 27 | Pipe | 3829068 | 1 | L=369mm |
| 28 | Six point socket scr | 975371 | 1 | |
| 29 | Dipstick | 21839741 | 1 | |
| 30 | O-ring | 949187 | 2 | |
| 31 | Oil pump | 21708142 | 1 | |
| 32 | Flange screw | 21344756 | 4 | |
| 33 | Pressure pipe | 20708889 | 1 | |
| 35 | Ferrule | 980790 | 1 | |
| 36 | Sealing ring | 1543578 | 2 | |
| 37 | Sealing ring | 21780376 | 2 | |
| 38 | Suction pipe | 20553751 | 1 | |
| 39 | Oil strainer | 20547257 | 1 | |
| 40 | Strainer | 8131965 | 1 | |
| 41 | Spacer sleeve | 20547263 | 3 | |
| 42 | Flange screw | 994451 | 3 | |
| 43 | Piston cooling jet | 3839496 | 6 | |
| 44 | O-ring | 976012 | 6 | |
| 45 | Flange screw | 994445 | 6 |
| Item | Part Name | Part No. |
| 42 | Flange screw 994451 | 994451 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE |
| Application | Lubricating Oil System with Aluminum Sump Lubricating Oil System with Plastic Sump Lubricating System |
