Flange screw 995717

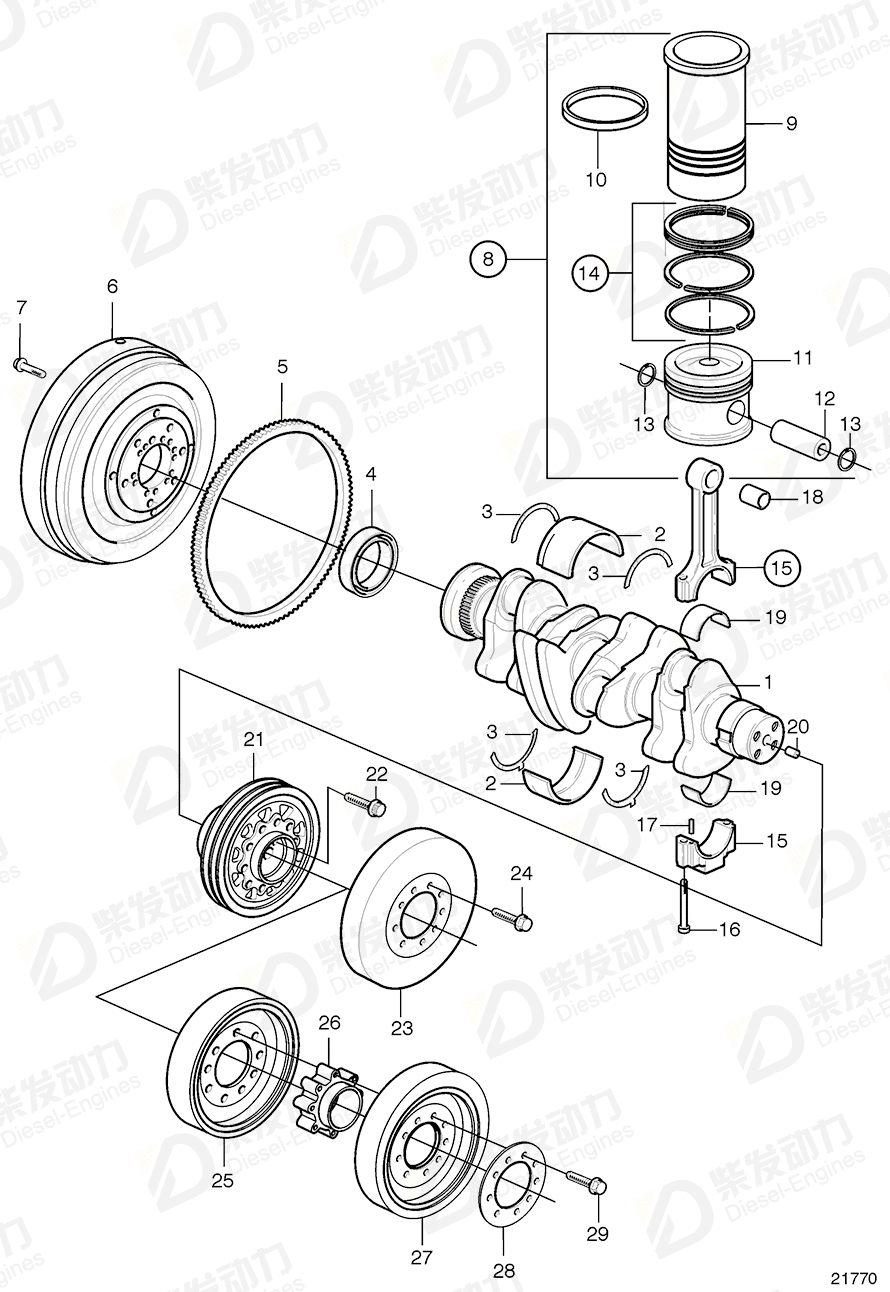

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 21245957 | 1 | SN01099469- |
| 2 | Main bearing | 20405541 | 7 | U.S=0.50mm |
| 2 | Main bearing | 21141948 | 7 | Std |
| 2 | Main bearing | 21234191 | 7 | U.S=0,25mm, SN10594935- |
| 3 | Safety washer | 11700315 | 2 | O.S=0.20mm (3.1mm) |
| 3 | Thrust washer kit | 20405899 | 2 | Std |
| 8 | Cylinder liner kit | 3843536 | 6 | |
| 10 | O-ring | 20412762 | 12 | |
| 12 | Gudgeon pin | 20405577 | 6 | |
| 13 | Snap ring | 20405576 | 12 | |
| 14 | Piston ring | 20450775 | 6 | |
| 15 | Connecting rod | 11700324 | 6 | Replaced by 20585982 |
| 16 | Flange screw | 11700326 | 12 | |
| 17 | Grooved pin | 20459134 | 6 | |
| 18 | Bushing | 11700325 | 6 | |
| 19 | Bearing | 20565150 | 6 | Std, Only for original part 11700324 |
| 19 | Bearing | 20565188 | 6 | U.S=0.50mm, Only for 11700324 |
| 19 | Bearing | 20717211 | 6 | U.S=0.25mm, Only for 11700324 |
| 20 | Spring pin | 20405634 | 1 | 18X24 |
| 21 | V-belt pulley | 20405725 | 1 | For fan mounted on coolant pump., Alternator dw/width 238,2/10., Pump dw/width 237,8/13. |
| 22 | Six point screw | 20405724 | 4 | |
| 23 | Vibration damper | 20412598 | 1 | Tropical radiator (high air temperature)., (340x32) |
| 24 | Flange screw | 888289 | 9 | |
| 25 | Vibration damper | 20546792 | 1 | (248x32) |
| 26 | Spacer | 20460799 | 1 | Twin vibration damper (248x32, 280x40) |
| 27 | Vibration damper | 20585446 | 1 | Replaced by 21165424, Mount with 21022723 and 970947 |
| 28 | Washer | 20460800 | 1 | |
| 28 | Flange plate | 21022723 | 1 | For 20585446 |
| 29 | Hexagon screw | 970947 | 9 | M10X25 |
| 29 | Flange screw | 995717 | 9 | for 21165424 |
| 29 | Hexagon screw | 20460205 | 9 |
| Item | Part Name | Part No. |
| 29 | Flange screw 995717 | 995717 |
| Details | |
| Engine model | TAD520VE TAD532GE TAD550GE, TAD551GE TAD620VE TAD720GE TAD720VE TAD721GE, TAD722GE TAD721VE TAD722VE TAD730GE, TAD731GE TAD750GE, TAD751GE TAD750VE, TAD760VE |
| Application | Crank Mechanism Crank Mechanism SN-1058413 Stage 2, Tier 2 Crank Mechanism SN-779906 Stage 2, Tier 2 Crank Mechanism SN1058414- Stage 2, Tier 2 Crank Mechanism SN779907- Stage 2, Tier 2 Crank Mechanism Stage 1, Tier 1 Crank Mechanism Stage 2, Tier 2 |
| Specification | |
| Descriptions | for 21165424 L=25mm, For 20585446 |
Related Products
Tags: Flange screw, Volvo Penta, 995717
