Volvo 984731 Flange screw, humidity/tempera ture 984731 Intake and Exhaust System spare parts-Generator engine parts Mall

Flange screw, humidity/tempera ture 984731

0 reviews Write a review

Qty

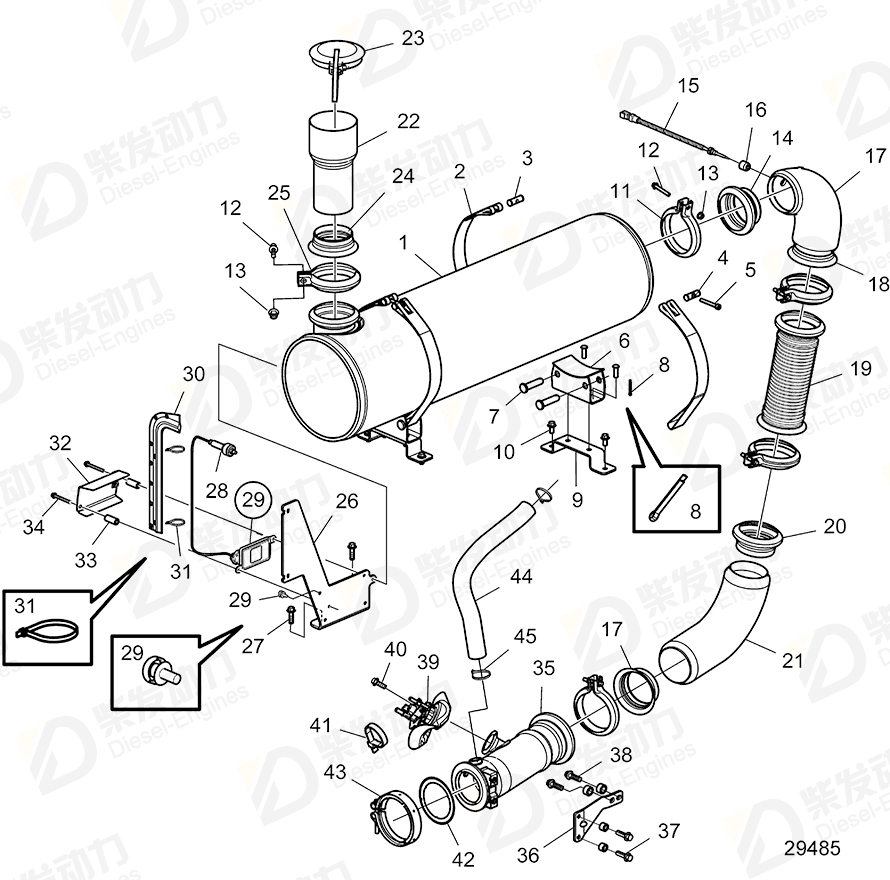

No.	Part Name	Part Number	Qty	Description
1	Silencer	22352090	1
2	Strap	20930690	4
3	Stub	20886397	2
4	Pin	20886399	2
5	Hex. socket screw	1076336	2
6	Bracket	21975162	2
7	Clevis pin	964907	4
8	Split pin	907861	4
9	Bracket	22748209	2
10	Flange screw	984752	4
11	V-clamp	20828464	5
12	Flange screw	994441	5
13	Flange nut	990940	5
14	Flange	21508792	1
15	Temperature sensor	21164790	1
16	Boss	22349354	1	M14x1.5
17	Exhaust pipe	22748637	1
18	Flange	21508790	3
19	Exhaust pipe	22003521	1	4''
20	Flange	21508792	2
21	Exhaust pipe	22748627	1
22	Tail pipe	23197878	1
23	Rain cap	21659349	1
24	Flange	21508790	1
25	V-clamp	20828464	1
26	Bracket	22830370	1
27	Flange screw	984754	2
28	Sensor	22827993	1
29	Cable tie	980881	1
30	Heat shield	22208630	1
31	Cable tie	983472	2	For cable to unit injectors.
32	Bracket	22394160	1
33	Spacer sleeve	847239	2
34	Flange screw, humidity/tempera ture	984731	2
35	Pipe	22338252	1
36	Bracket	22168591	1	TAD87XVE
37	Flange screw	984736	2
38	Flange screw	984754	2
39	Dosage valve	21575008	1	6 kg/h
40	Hex. socket screw	990413	3
41	Cable tie	983472	1	For cable to unit injectors.
42	Gasket	21588074	1
43	V-clamp	21472836	1
44	Tube	3170224	1
45	Cable tie	22240159	2

Item	Part Name	Part No.
34	Flange screw, humidity/tempera ture 984731	984731

Details
Engine model	TAD1170VE, TAD1171VE, TAD1172VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE TAD870VE, TAD871VE, TAD872VE, TAD873VE
Application	SCR. Exhaust Pipe, Open Power Unit SCR. Sensors and valves, Open Power Unit SCR.Mounting bracket AdBlue 70L tank,Open Power Uni
