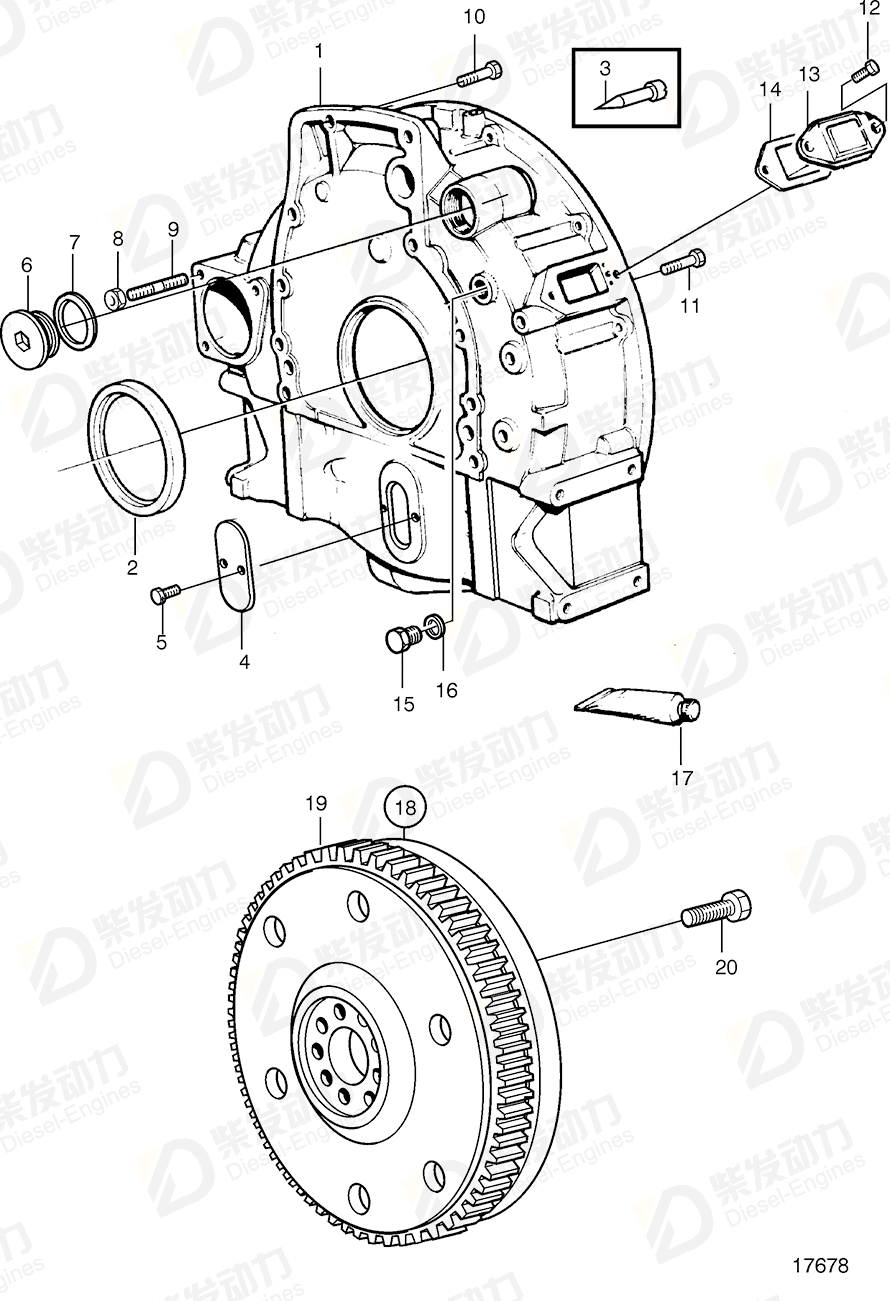

Flywheel 8192177
| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 3829352 | 1 | |
| 2 | Crankshaft seal | 477119 | 1 | (3825165) |
| 3 | Setting indicator | 864494 | 1 | |
| 4 | Plate | 3829353 | 1 | |
| 5 | Flange screw | 967949 | 2 | |
| 6 | Plug | 467367 | 1 | |
| 7 | Gasket | 469328 | 1 | |
| 8 | Flange nut | 971095 | 3 | Alt |
| 9 | Stud | 953067 | 3 | |
| 10 | Flange screw | 966363 | 2 | L=65mm |
| 11 | Flange screw | 966361 | 6 | L=55mm |
| 11 | Flange screw | 968753 | 2 | L=75mm |
| 12 | Flange screw | 946934 | 2 | |
| 13 | Cover | 4772168 | 1 | |
| 14 | Gasket | 4804167 | 1 | |
| 15 | Plug | 180761 | 1 | |
| 16 | Gasket | 11996 | 1 | |
| 17 | Sealant | 1161231 | 1 | 304ml |
| 18 | Flywheel | 8192177 | 1 | |
| 19 | Ring gear | 420314 | 1 | |
| 20 | Hexagon screw | 973875 | 9 |
| Item | Part Name | Part No. |
| 18 | Flywheel 8192177 | 8192177 |
| Details | |
| Engine model | TD640VE TWD740VE |
| Application | Flywheel and Flywheel Housing for Allison MD3060 Flywheel and Flywheel Housing for Allison MD3060, SAE 2, Vehicle Type Flywheel and Flywheel Housing for Allison MD3060, Vehicle Type |
