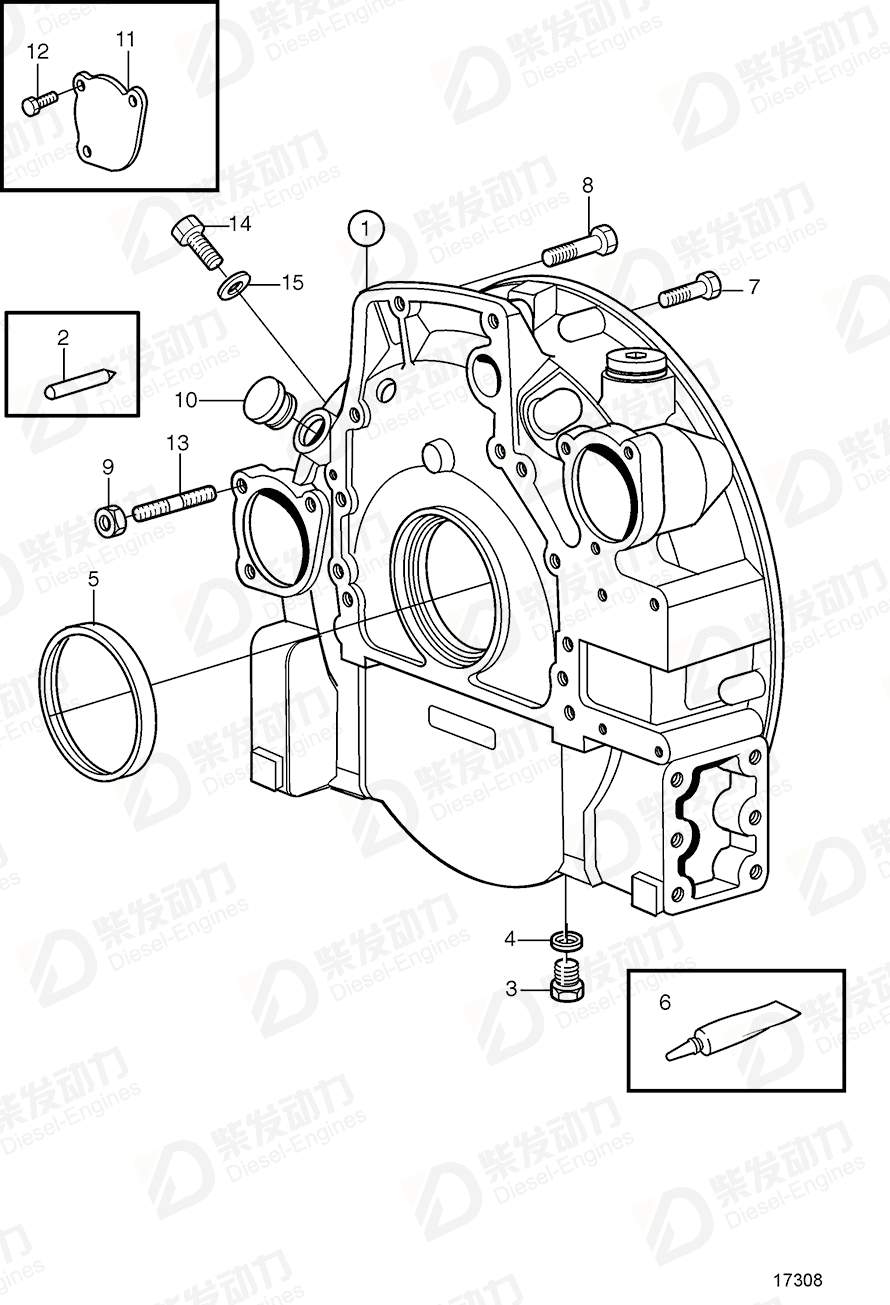

Flywheel housing 3826837
| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 3826837 | 1 | |
| 2 | Pin | 404069 | 1 | |
| 3 | Plug | 960632 | 1 | |
| 4 | Gasket | 957181 | 1 | |
| 5 | Crankshaft seal | 477119 | 1 | (3825165) |
| 6 | Sealant | 1161231 | 1 | 304ml |
| 7 | Flange screw | 966361 | 6 | L=55mm |
| 7 | Flange screw | 968753 | 2 | L=75mm |
| 8 | Flange screw | 966363 | 2 | L=65mm |
| 9 | Flange nut | 971095 | 3 | Alt |
| 10 | Rubber plug | 61822 | 1 | |
| 11 | Cover | 423081 | 1 | |
| 12 | Flange screw | 946471 | 3 | |
| 13 | Stud | 953067 | 3 | |
| 14 | Plug | 180761 | 1 | |
| 15 | Gasket | 11996 | 1 |
| Item | Part Name | Part No. |
| 1 | Flywheel housing 3826837 | 3826837 |
| Details | |
| Engine model | TD610G, TWD610G, TD710G, TWD710G TD610V, TWD610V |
| Application | Flywheel Housing for Twin Starter Motors |
