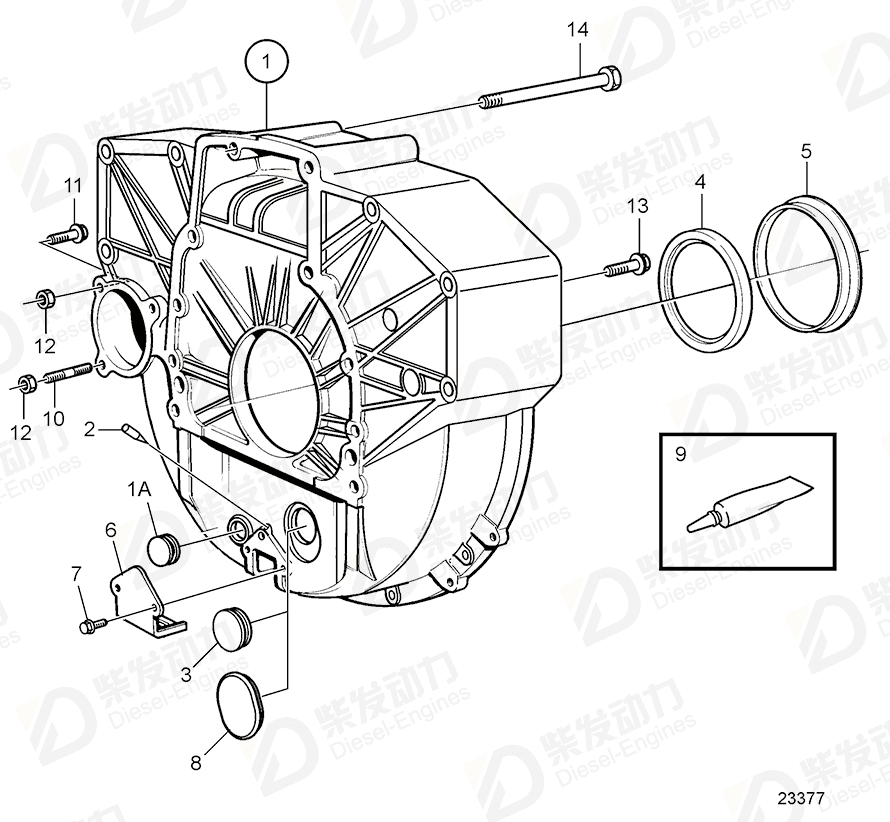

Flywheel housing 3978207
| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 3978207 | 1 | (3826499) |
| 2 | Setting indicator | 467077 | 1 | Repl early production marked: 5-4-3-2-1-A-B.If other marking is stamped 4PCS 829308 have to be used. |
| 3 | Plug | 420809 | 1 | |
| 4 | Crankshaft seal | 477119 | 1 | (3825165) |
| 5 | Protecting plate | 466963 | 1 | |
| 6 | Breather cap | 417429 | 1 | |
| 7 | Flange screw | 946544 | 2 | For THD102KB and THD102KD. |
| 8 | Rubber plug | 3978205 | 1 | |
| 9 | Sealant | 1161231 | 1 | 304ml |
| 10 | Stud | 953069 | 2 | |
| 11 | Flange screw | 965187 | 1 | |
| 12 | Flange nut | 971095 | 3 | Alt |
| 13 | Flange screw | 966361 | 6 | L=55mm |
| 13 | Flange screw | 968753 | 2 | L=75mm |
| 14 | Flange screw | 966371 | 2 | L=140mm |
| 1A | Plug | 961971 | 1 | (961960) |
| Item | Part Name | Part No. |
| 1 | Flywheel housing 3978207 | 3978207 |
| Details | |
| Engine model | TD640VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V TWD740VE |
| Application | Flywheel and Flywheel Housing for Allison MD3060, SAE 2, Vehicle Type Flywheel and Flywheel Housing for Allison MD3060, Vehicle Type Flywheel and Flywheel Housing for Clark 28000/32000 with Converter 270/320, Vehicle Type Flywheel and Flywheel Housing for ZF WG200 with Converter 340, Vehicle Type Flywheel and Flywheel Housing SAE 2 for Allison MT643, MT653, Vehicle Type Flywheel Housing SAE 2, Vehicle Type Flywheel Housing,Vehicle Type |
| Specification | |
| Descriptions | (3826499) Std |
