Flywheel housing 821242

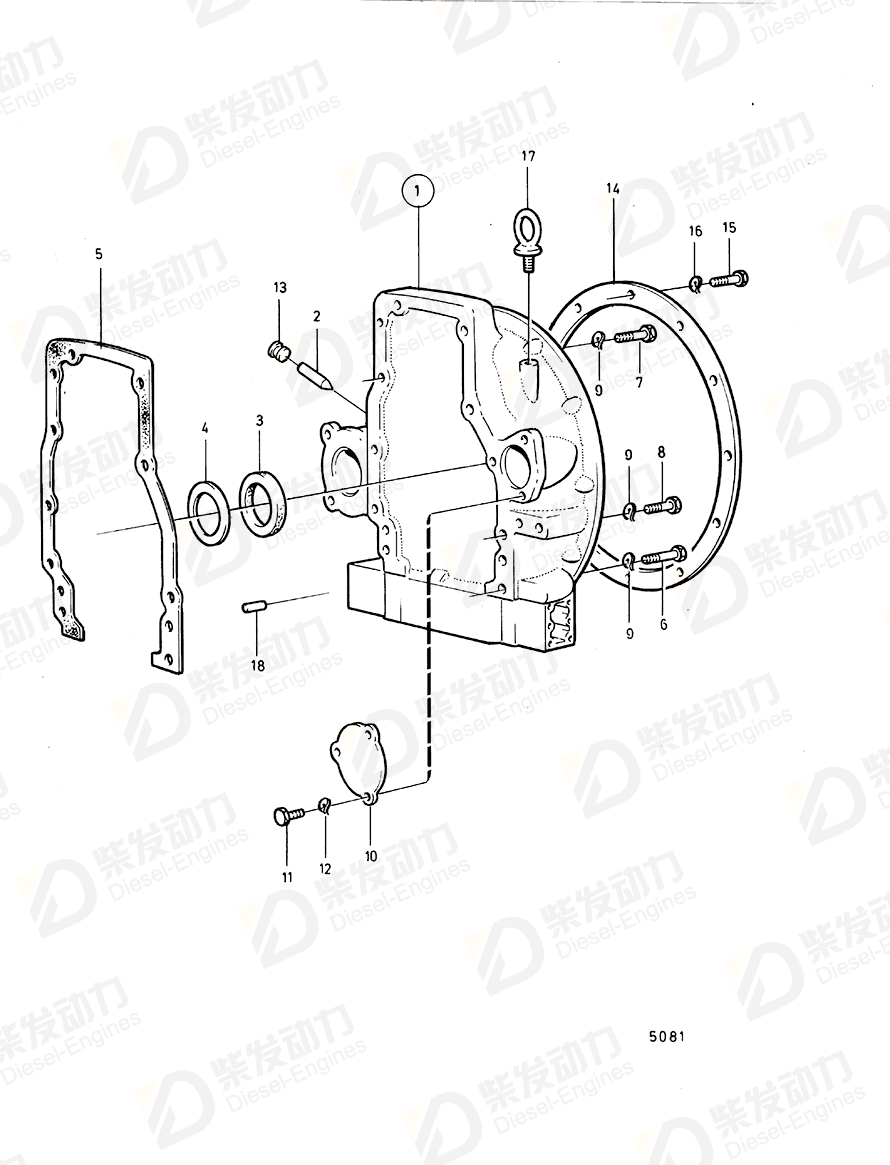

| No. | Part Name | Part Number | Qty | Description |
| 1 | Flywheel housing | 821242 | 1 | D70B spec. 867057, 867058, 867059. D70B classed |
| 1 | Flywheel housing | 821790 | 1 | Std |
| 2 | Pin | 404069 | 1 | |
| 3 | Sealing ring | 821755 | 1 | D42A PP SPEC. 16053, 867638. |
| 4 | Spacer ring | 821766 | 1 | Std |
| 5 | Gasket | 420167 | 1 | |
| 6 | Hexagon screw | 955581 | 2 | Casted pistons, MO 75015200-, MO 75035926-. |
| 8 | Hexagon screw | 955583 | 2 | |
| 9 | Spring washer | 941911 | 10 | |
| 10 | Cover | 423081 | 1 | |
| 11 | Hexagon screw | 940098 | 3 | |
| 12 | Spring washer | 942336 | 3 | |
| 13 | Rubber plug | 61822 | 1 | |
| 14 | Spacer ring | 846574 | 1 | D70B spec. 867057, 867058, 867059, 867079, TD70G with Allison converter, (731459) |
| 15 | Hexagon screw | 955535 | 12 | |
| 16 | Spring washer | 942336 | 12 | |
| 18 | Pin | 191171 | 2 |
| Item | Part Name | Part No. |
| 1 | Flywheel housing 821242 | 821242 |
| Details | |
| Engine model | D70B TD60A, TD60B TD60D TD60D-83 TD70G TD70G-83 TID60D TID70G |
| Application | Flywheel Housing Flywheel Housing: A FLYWHEEL HOUSING: B FLYWHEEL HOUSING: C |
| Specification | |
| Descriptions | Allison converter D70B spec. 867057, 867058, 867059. D70B classed |
