Fuel hose 22053471

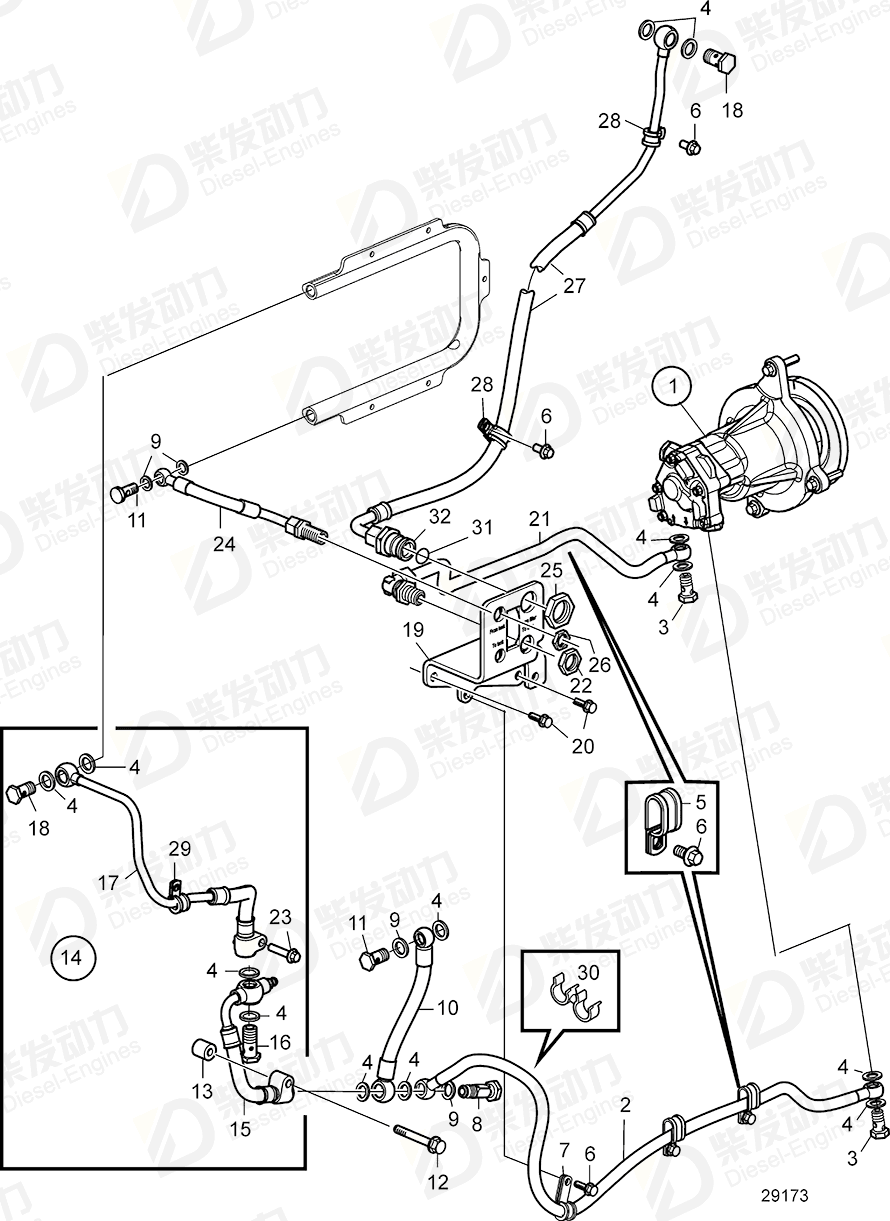

| No. | Part Name | Part Number | Qty | Description |
| 2 | Fuel pipe | 21755521 | 1 | |
| 3 | Hollow screw | 991046 | 2 | |
| 4 | Sealing ring | 20852765 | 13 | |
| 5 | Clamp | 981664 | 2 | |
| 6 | Flange screw | 984733 | 5 | |
| 7 | Clamp | 974582 | 1 | |
| 8 | Overflow valve | 21014054 | 1 | |
| 9 | Sealing ring | 20852764 | 4 | |
| 10 | Fuel hose | 21284489 | 1 | |
| 11 | Hollow screw | 991048 | 2 | |
| 12 | Flange screw | 984741 | 1 | L=70mm |
| 13 | Spacer sleeve | 823494 | 1 | For Fan guard 22389861 |
| 14 | Fuel hose | 22053471 | 1 | |
| 16 | Hollow screw | 190713 | 1 | |
| 17 | Fuel hose | 21948554 | 1 | |
| 18 | Hollow screw | 941686 | 2 | |
| 19 | Bracket | 15030907 | 1 | |
| 20 | Flange screw | 984735 | 2 | |
| 21 | Fuel hose | 21508598 | 1 | |
| 22 | Hexagon nut | 957020 | 1 | |
| 23 | Flange screw | 984737 | 1 | |
| 24 | Fuel hose | 21508585 | 1 | Replaced by 23112305 |
| 24 | Fuel hose | 23112305 | 1 | |
| 25 | Hexagon nut | 957021 | 1 | |
| 26 | Hexagon nut | 957019 | 1 | |
| 27 | Fuel hose | 22397724 | 1 | SN-2016102069 |
| 27 | Fuel hose | 23113066 | 1 | SN2016109366- |
| 27 | Fuel hose | 78467511 | 1 | SN2016102070-2016109365 |
| 28 | Clamp | 949747 | 2 | |
| 29 | Clamp | 949746 | 1 | |
| 30 | Retainer | 9194404 | 1 | |
| 31 | O-ring | 976971 | 1 | |
| 32 | Nipple | 8148326 | 1 |
| Item | Part Name | Part No. |
| 14 | Fuel hose 22053471 | 22053471 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Fuel System, Alternative Mounting |
