Fuel pipe 865770

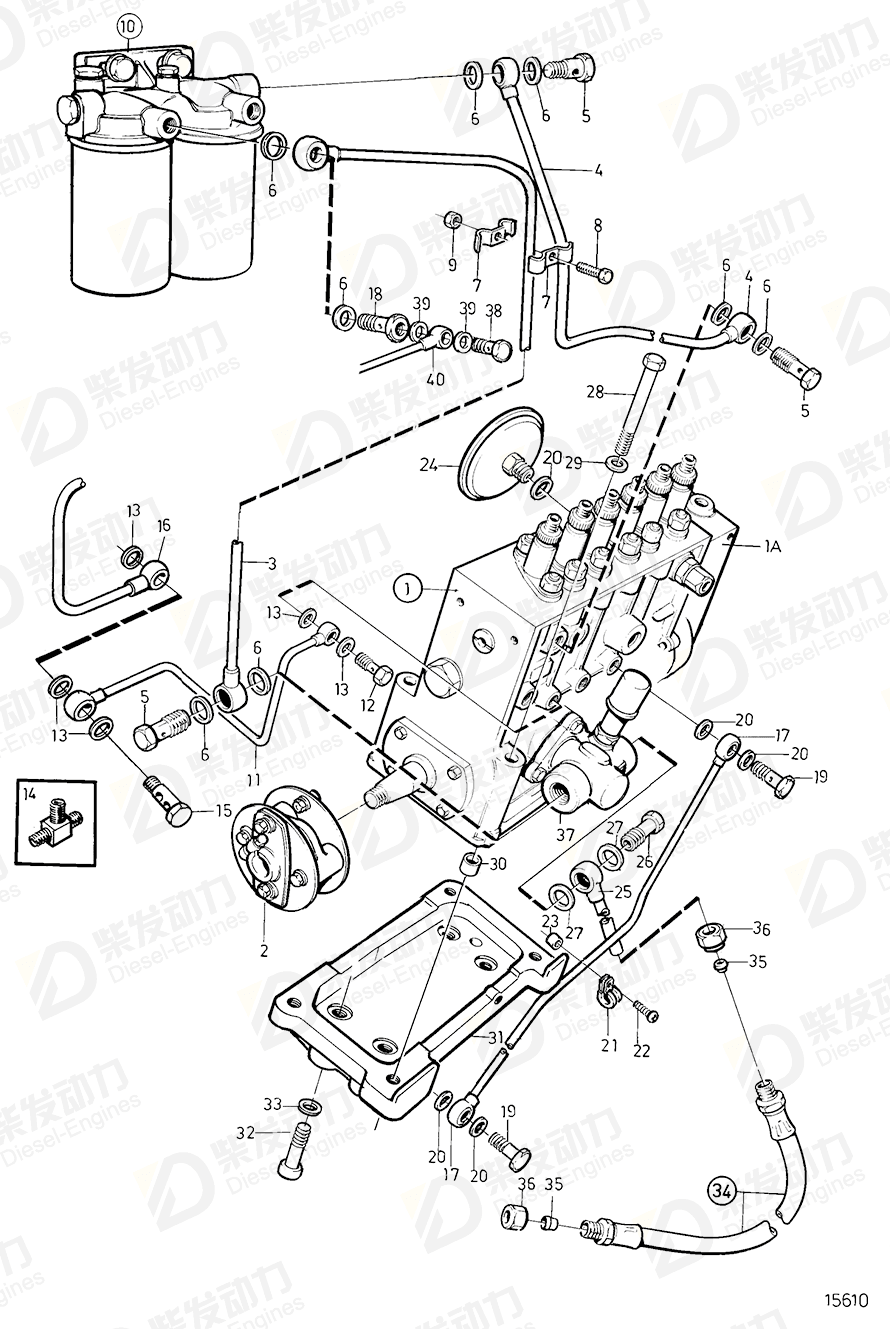

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 866200 | 1 | |
| 1 | Injection pump | 3803722 | 1 | |
| 3 | Fuel pipe | 865769 | 1 | |
| 4 | Fuel pipe | 865770 | 1 | |
| 5 | Hollow screw | 25167 | 3 | |
| 6 | Gasket | 969011 | 8 | |
| 7 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 8 | Cross recessed screw | 956095 | 1 | |
| 9 | Hexagon nut | 955781 | 1 | |
| 11 | Oil pressure pipe | 420944 | 1 | |
| 12 | Hollow screw | 48634 | 1 | |
| 13 | Gasket | 947281 | 5 | |
| 14 | T-nipple | 191936 | 1 | |
| 15 | Hollow screw | 943103 | 1 | When oil supervision is mounted. |
| 16 | Oil pressure pipe | 420945 | 1 | |
| 17 | Oil return pipe | 865773 | 1 | |
| 18 | Hollow screw | 16496 | 1 | |
| 19 | Hollow screw | 25167 | 2 | |
| 1A | Governor | 866884 | 1 | |
| 20 | Gasket | 969011 | 5 | |
| 21 | Clamp | 942542 | 1 | |
| 22 | Flange screw | 945444 | 1 | |
| 23 | Spacer washer | 946048 | 1 | |
| 24 | Pressure equalizer | 477173 | 1 | (466398) |
| 25 | Fuel pipe | 837608 | 1 | Alt |
| 26 | Hollow screw | 25167 | 1 | |
| 27 | Gasket | 969011 | 2 | |
| 28 | Flange screw | 965189 | 4 | |
| 29 | Washer | 190509 | 4 | |
| 30 | Guide sleeve | 417588 | 2 | |
| 31 | Shelf | 420926 | 1 | |
| 32 | Hex. socket screw | 959241 | 4 | |
| 33 | Spring washer | 941908 | 4 | |
| 34 | Fuel hose | 865737 | 1 | |
| 35 | Ferrule | 956969 | 2 | |
| 36 | Fitting nut | 956983 | 2 | |
| 37 | Feed pump | 244825 | 1 | |
| 38 | Hollow screw | 74033 | 1 | |
| 39 | Gasket | 947620 | 2 | (233321) |
| 40 | Leak-off line | 865771 | 1 |
| Item | Part Name | Part No. |
| 4 | Fuel pipe 865770 | 865770 |
| Details | |
| Engine model | TWD630ME TWD630VE |
| Application | Fuel Injection Pump and Fuel Filter. Standard Fuel System |
