Fuel pump 1542170

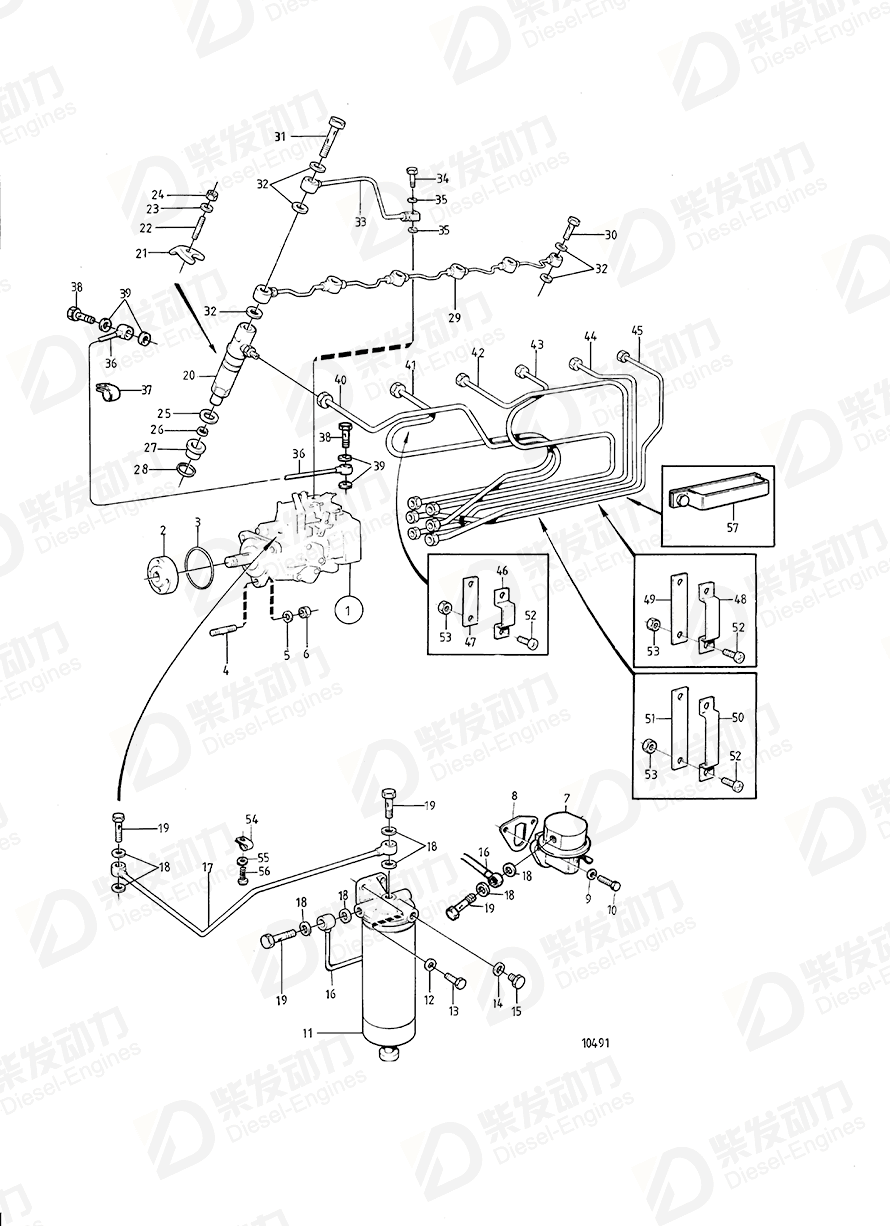

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 1542150 | 1 | MO-30497 |
| 1 | Injection pump | 1542185 | 1 | MO30498- |
| 1 | Injection pump | 1545367 | 1 | |
| 2 | Hub | 1542171 | 1 | See group 2C |
| 3 | O-ring | 968971 | 1 | |
| 4 | Stud | 953046 | 3 | |
| 5 | Washer | 191172 | 3 | Spec.867054, 867221. |
| 6 | Hexagon nut | 955782 | 3 | |
| 7 | Repair kit | 273663 | 1 | |
| 7 | Fuel pump | 860320 | 1 | |
| 7 | Fuel pump | 1542170 | 1 | Replaced by fuel pump 860320 and pipe 860447 |
| 8 | Gasket | 3501530 | 1 | (463392) |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Hexagon screw | 955295 | 2 | |
| 11 | Fuel filter | 838472 | 1 | |
| 11 | Fuel filter | 1542209 | 1 | Repl by 838472 |
| 12 | Washer | 960148 | 2 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 13 | Hexagon screw | 955318 | 2 | |
| 14 | Gasket | 18839 | 2 | |
| 15 | Plug | 960629 | 2 | |
| 16 | Fuel pipe | 860448 | 1 | For 860320 |
| 16 | Fuel pipe | 1542277 | 1 | For 1542170 |
| 17 | Fuel pipe | 1542188 | 1 | (1542278) |
| 18 | Gasket | 11994 | 8 | |
| 19 | Hollow screw | 969299 | 4 | |
| 20 | Injector | 1542155 | 6 | |
| 20 | Injector | 3803239 | 6 | |
| 21 | Yoke | 1542156 | 6 | |
| 22 | Stud | 924068 | 6 | |
| 23 | Washer | 1542197 | 6 | |
| 24 | Hexagon nut | 955782 | 6 | |
| 25 | Washer | 1542159 | 6 | |
| 26 | Washer | 1542158 | 6 | |
| 27 | Heat shield | 1542154 | 6 | |
| 28 | Washer | 1542157 | 6 | |
| 29 | Leak-off pipe | 1542167 | 1 | |
| 30 | Hollow screw | 74033 | 5 | |
| 31 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 32 | Gasket | 957171 | 13 | |
| 33 | Fuel pipe | 1542301 | 1 | |
| 34 | Hollow screw | 969299 | 1 | |
| 35 | Gasket | 11994 | 2 | |
| 36 | Delivery pipe | 1542189 | 1 | |
| 37 | Clamp | 190601 | 1 | |
| 38 | Hollow screw | 74033 | 2 | |
| 39 | Gasket | 957171 | 4 | |
| 40 | Delivery pipe | 1542111 | 1 | For 1542185 |
| 40 | Delivery pipe | 1542161 | 1 | For 1542150 |
| 40 | Delivery pipe | 1545441 | 1 | For 1545367 |
| 41 | Delivery pipe | 1542112 | 1 | For 1542185 |
| 41 | Delivery pipe | 1542162 | 1 | For 1542150 |
| 41 | Delivery pipe | 1545442 | 1 | For 1545367 |
| 42 | Delivery pipe | 1542113 | 1 | For 1542185 |
| 42 | Delivery pipe | 1542163 | 1 | For 1542150 |
| 42 | Delivery pipe | 1545443 | 1 | For 1545367 |
| 43 | Delivery pipe | 1542114 | 1 | For 1542185 |
| 43 | Delivery pipe | 1542164 | 1 | For 1542150 |
| 43 | Delivery pipe | 1545444 | 1 | For 1545367 |
| 44 | Delivery pipe | 1542115 | 1 | For 1542185 |
| 44 | Delivery pipe | 1542165 | 1 | For 1542150 |
| 44 | Delivery pipe | 1545445 | 1 | For 1545367 |
| 45 | Delivery pipe | 1542116 | 1 | For 1542185 |
| 45 | Delivery pipe | 1542166 | 1 | For 1542150 |
| 45 | Delivery pipe | 1545446 | 1 | For 1545367 |
| 46 | Clamp | 466760 | 1 | |
| 46 | Clamp | 1542109 | 3 | (1542367) |
| 47 | Clamp | 466761 | 4 | (1542368) |
| 48 | Clamp | 1542369 | 1 | |
| 49 | Clamp | 1542370 | 1 | |
| 50 | Clamp | 1542371 | 1 | |
| 51 | Clamp | 1542372 | 1 | |
| 52 | Cross recessed screw | 956092 | 6 | (241793) |
| 53 | Hexagon nut | 955781 | 6 | |
| 54 | Clamp | 942400 | 1 | |
| 55 | Spring washer | 941908 | 1 | |
| 56 | Screw | 956129 | 1 | |
| 57 | Clamp, 3-pipes | 470182 | 1 | |
| 57 | Clamp, 4-pipes | 470183 | 1 | |
| 57 | Clamp | 470184 | 1 | For four pipes., Later prod |
| Item | Part Name | Part No. |
| 7 | Fuel pump 1542170 | 1542170 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Fuel System |
| Specification | |
| Descriptions | Replaced by fuel pump 860320 and pipe 860447 Replaced by fuel pump 860320 and pipe 860448 |
