Fuel valve 3828982

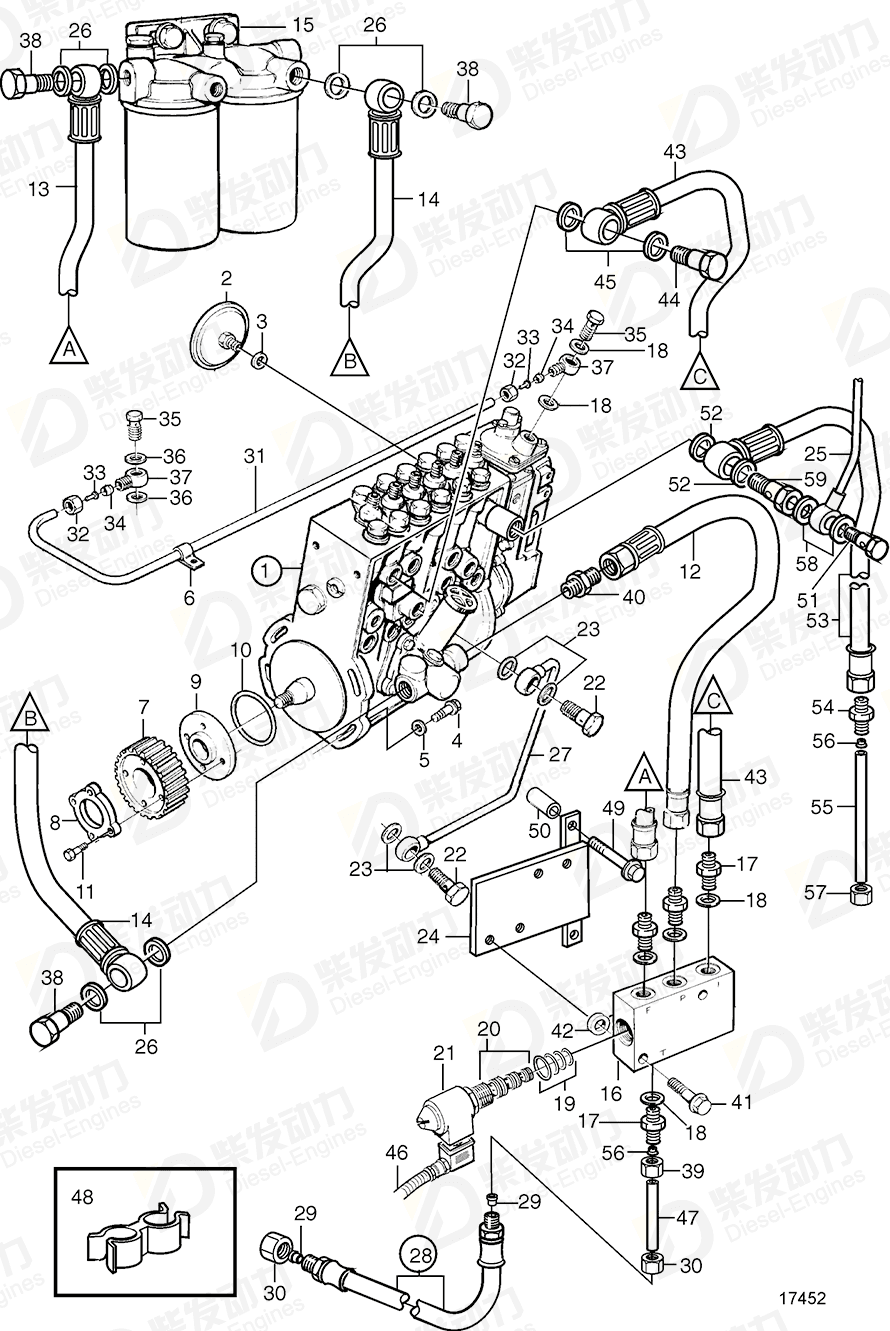

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803732 | 1 | |
| 2 | Pressure equalizer | 477173 | 1 | (466398) |
| 3 | Gasket | 969011 | 1 | |
| 4 | Flange screw | 946472 | 3 | |
| 5 | Spring washer | 941908 | 3 | |
| 6 | Clamp | 940374 | 1 | |
| 7 | Gear, fuel inj. pump | 465870 | 1 | |
| 8 | Spacer | 465771 | 1 | |
| 9 | Hub | 465968 | 1 | |
| 10 | O-ring | 925256 | 1 | |
| 11 | Flange screw | 465782 | 4 | |
| 12 | Hose | 3825848 | 1 | |
| 13 | Hose | 3827019 | 1 | |
| 14 | Hose | 3825670 | 1 | |
| 16 | Fuel valve | 3828982 | 1 | |
| 17 | Nipple | 941754 | 4 | |
| 18 | Gasket | 969011 | 4 | |
| 19 | Gasket kit | 3828981 | 1 | |
| 20 | Valve | 3825235 | 1 | |
| 21 | Magnet | 3825239 | 1 | |
| 22 | Hollow screw | 48634 | 2 | |
| 23 | Gasket | 947281 | 4 | |
| 24 | Bracket | 3826159 | 1 | |
| 25 | Leak-off line | 848466 | 1 | |
| 26 | Gasket | 969011 | 5 | |
| 27 | Oil pressure pipe | 420949 | 1 | Cylinder block - fuel injection pump. |
| 28 | Fuel hose | 865737 | 1 | |
| 29 | Ferrule | 956969 | 2 | |
| 30 | Fitting nut | 956983 | 2 | |
| 31 | Tube | 945460 | 1 | L=900mm |
| 32 | Fitting nut | 954356 | 2 | |
| 33 | Support sleeve | 944717 | 2 | |
| 34 | Sleeve | 954364 | 2 | |
| 35 | Hollow screw | 969299 | 2 | |
| 36 | Gasket | 11994 | 4 | |
| 37 | Banjo nipple | 945417 | 2 | |
| 38 | Hollow screw | 25167 | 2 | |
| 39 | Fitting nut | 956983 | 1 | |
| 40 | Nipple | 941754 | 1 | |
| 41 | Flange screw | 969313 | 2 | |
| 42 | Spacer sleeve | 822779 | 2 | |
| 43 | Hose | 3826284 | 1 | |
| 44 | Hollow screw | 25167 | 1 | |
| 45 | Gasket | 969011 | 2 | |
| 46 | Cable kit | 866927 | 1 | |
| 47 | Fuel pipe | 3825770 | 1 | |
| 48 | Retainer | 9205207 | 1 | |
| 49 | Flange screw | 969313 | 2 | |
| 50 | Spacer sleeve | 822779 | 2 | |
| 51 | Hollow screw | 74033 | 1 | |
| 52 | Gasket | 969011 | 2 | |
| 53 | Hose | 3826284 | 1 | |
| 54 | Nipple | 957055 | 1 | |
| 55 | Fuel pipe | 3825770 | 1 | |
| 56 | Ferrule | 956969 | 1 | |
| 57 | Fitting nut | 956983 | 1 | |
| 58 | Gasket | 947620 | 2 | (233321) |
| 59 | Hollow screw | 16496 | 1 |
| Item | Part Name | Part No. |
| 16 | Fuel valve 3828982 | 3828982 |
| Details | |
| Engine model | TAD730V TD630ME TD630VE TD71A TD730ME TD730VE TID71A TWD630ME TWD630VE TWD710V TWD731ME TWD731VE |
| Application | Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Injection Pump, Fuel Filter and Shut-off Valve Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C |
| Specification | |
| Descriptions | Incl 4pcs nipple 941754 and 4pcs gasket 969011., 12V |
