Fuse, blue 943905

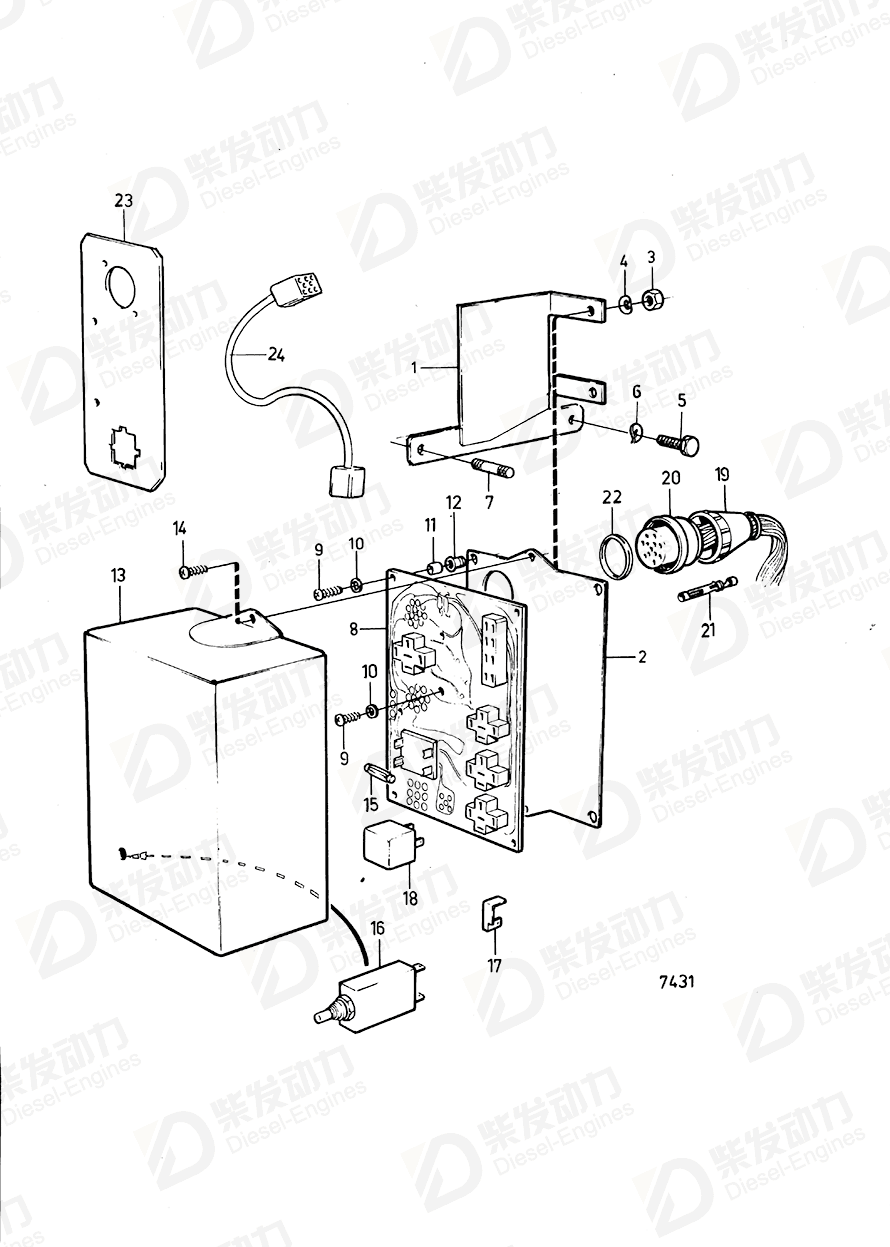

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 848060 | 1 | |
| 2 | Mounting plate | 846914 | 1 | |
| 3 | Lock nut | 963105 | 2 | |
| 4 | Spring washer | 941906 | 2 | |
| 5 | Hexagon screw | 940133 | 2 | |
| 6 | Spring washer | 942336 | 2 | |
| 8 | Circuit board | 849192 | 1 | |
| 9 | Cross recessed screw | 956061 | 4 | D70B spec. 867055, 867060. TD70B spec. 867066. |
| 10 | Washer | 962653 | 4 | |
| 11 | Hose | 192034 | 4 | L=10mm |
| 13 | Protecting casing | 846986 | 1 | |
| 14 | Cross recessed screw | 956057 | 2 | |
| 15 | Fuse | 942545 | 5 | 4 pcs as reserve., 5A |
| 15 | Fuse, blue | 943905 | 1 | Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 25A |
| 16 | Fuse | 948843 | 1 | 8A |
| 17 | Cable terminal | 847112 | 1 | Stop solenoid is connected while engine is stopping., Power-Pack |
| 18 | Relay | 1504951 | 4 | For instrument panel 841096 and 841097., 24Vlate production. |
| 18 | Timer relay | 1593966 | 1 | 24V |
| 19 | Unloading cable | 846613 | 1 | |
| 20 | Housing | 846612 | 1 | 16-pole |
| 21 | Cable terminal | 849959 | 1 | |
| 22 | Sealing ring | 846615 | 1 | |
| 23 | Mounting plate | 847253 | 1 | Is used when the electrical box is removed |
| 24 | Cable kit | 847256 | 1 | CABLE UNIT TO BE USED WHEN VOLVOPENTA ELECTRICAL BOX IS NOT USED |
| Item | Part Name | Part No. |
| 15 | Fuse, blue 943905 | 943905 |
| Details | |
| Engine model | D100A D100B D100B, TD100A D120A, TD120A D42A D70B TD100A TD120C TD120G TD120GG TD120HPP TD60A TD60B TD60D TD70B TD70G TID120FG TID120FPP TID120HPP TID121FG |
| Application | Conn.box and Installation Comp., Classed Engine, Spec 867108, 86 Connecting Box and Installation Components Connecting Box and Installation Components, Classed Engine Connecting Box and Interm. Relay with Installation Components CONNECTING BOX AND INTERM.RELAY WITH INSTALLATION COMPONENTS Connecting Box and Interm.relay with Installation Components: A Connecting Box and Interm.relay with Installation Components: B Connector Box and Fuse Box with Installation Components Connector Box and Fuse Box with Installation Components: A Connector Box and Fuse Box with Installation Components: B Connector Box and Fuse Box with Installation Components: C ELECTRICAL BOX AND INSTALLATION COMPONENTS ELECTRICAL BOX AND INSTALLATION COMPONENTS: B ELECTRICAL BOX AND INSTALLATION COMPONENTS: TID121FP Electrical System and Instrument Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Instrument Panel and Installation Components, Power Pack |
| Specification | |
| Descriptions | Åkerman spec. 867446., 25A Åkerman spec. 867477., 25A 25 amp 25A Acc. to classification. AQ200D MO 11577-, AQ225D MO 11737-, AQ260A MO 11507-, AQ290A MO12260-. MO 12770/XXXXX-. MO-12769/XXXXX,replaced by 841378. Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 25A Spec. 867474, TD70GG., 25A |
