Gasket 1697703

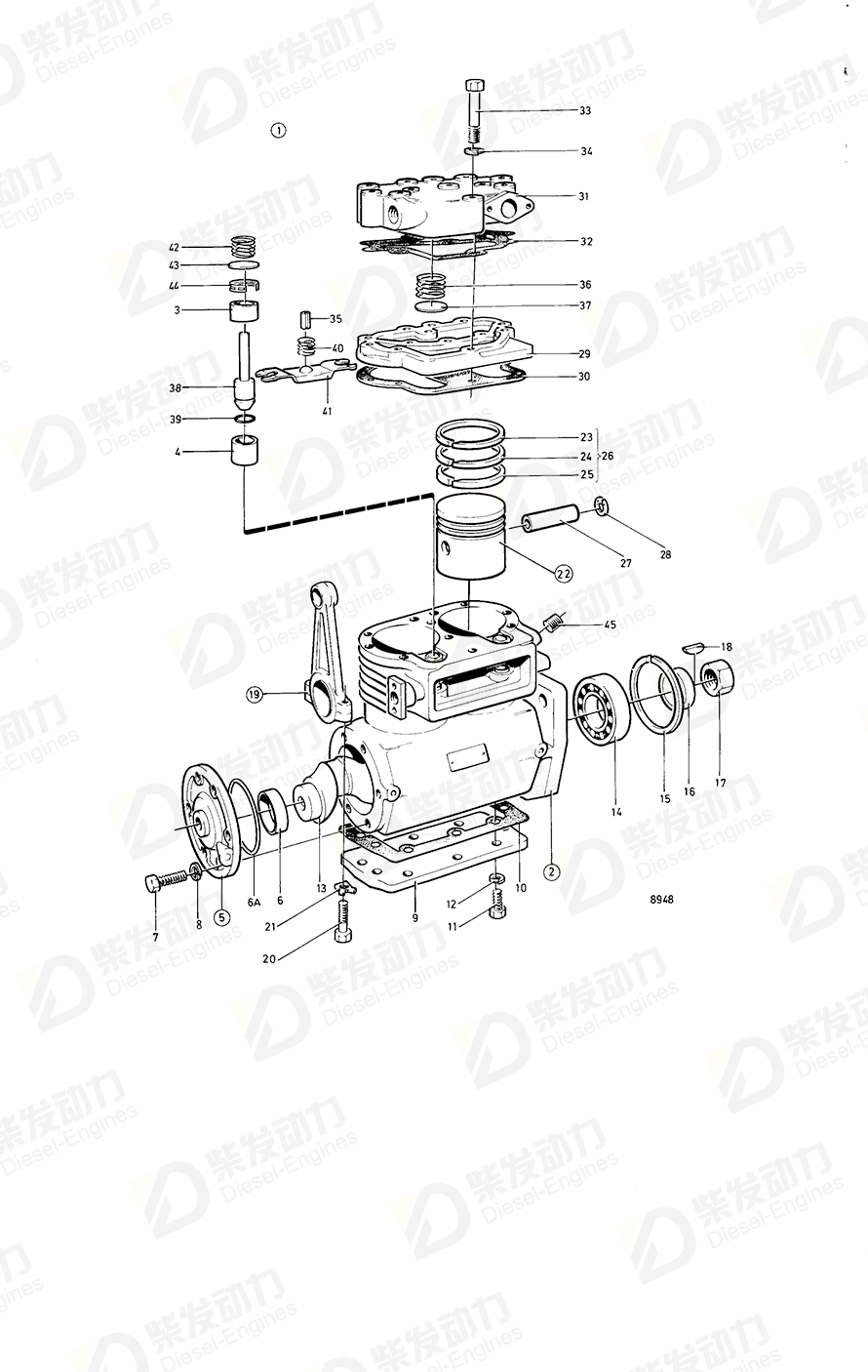

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor | 1612335 | 1 | Also available as an exchange part., Repl by 1080437 |
| 3 | Valve seat | 1518347 | 2 | |
| 4 | Bushing | 1518348 | 2 | |
| 6 | Bushing | 1518350 | 1 | |
| 9 | Cover | 1518351 | 1 | |
| 10 | Gasket | 1697703 | 1 | (1695152) |
| 13 | Crankshaft | 1518353 | 1 | |
| 14 | Ball bearing | 11014 | 1 | |
| 15 | Lock ring | 346520 | 1 | |
| 16 | Spacer ring | 1518354 | 1 | |
| 17 | Nut | 1518355 | 1 | |
| 18 | Key | 1517545 | 1 | (346916) |
| 19 | Connecting rod | 3090257 | 2 | (1518356) |
| 20 | Screw | 1518357 | 4 | |
| 21 | Lock washer | 328738 | 4 | |
| 22 | Piston | 1697706 | 2 | Std D |
| 22 | Piston | 1697707 | 2 | (1518359) |
| 22 | Piston | 1697708 | 2 | 0,50mm o.s |
| 26 | Piston ring kit | 270613 | 2 | 0,25mm o.s |
| 26 | Piston ring kit | 270614 | 2 | 0,50mm o.s |
| 26 | Piston ring kit | 272896 | 2 | Std D |
| 28 | Lock ring | 1518371 | 4 | |
| 29 | Plate | 1518372 | 1 | |
| 30 | Gasket | 1697704 | 1 | (1518373) |
| 31 | Cylinder head | 1518374 | 1 | |
| 32 | Gasket | 1697705 | 1 | (1518375) |
| 33 | Screw | 1518376 | 11 | |
| 33 | Screw | 1518377 | 2 | |
| 35 | Lock pin | 1518378 | 1 | |
| 41 | Pressure plate | 1518379 | 1 | |
| 45 | Plug | 191026 | 1 | |
| 45 | Repair kit, air compr. | 3090471 | 1 | |
| 6A | O-ring | 1696201 | 1 | Late type |
| Item | Part Name | Part No. |
| 10 | Gasket 1697703 | 1697703 |
| Details | |
| Engine model | TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP |
| Application | Air Compressor 15.5, Components: 1590264 Air Compressor: 1590264 Air Compressor: 1612335 Repair Kits |
| Specification | |
| Descriptions | (1695152) |
