Gasket 18706

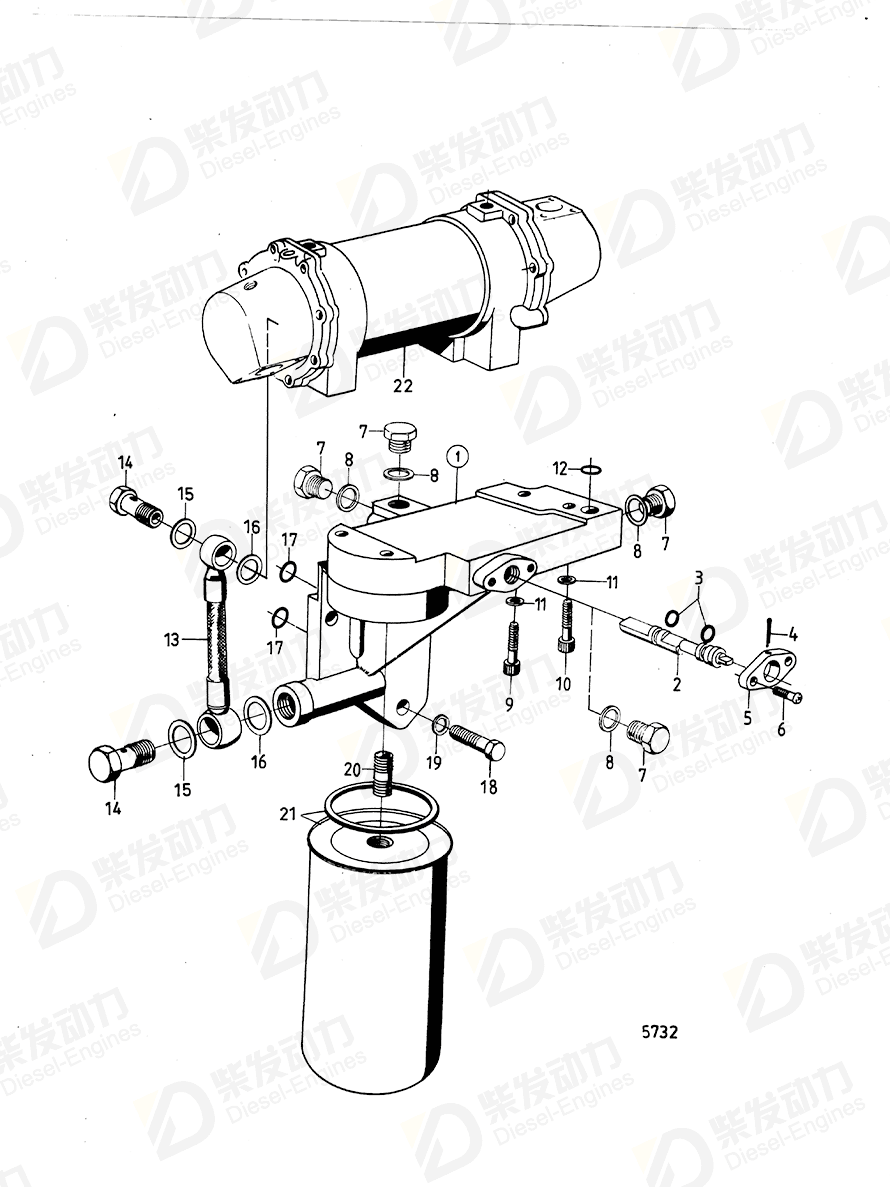

| No. | Part Name | Part Number | Qty | Description |
| 1 | Bracket | 820513 | 1 | |
| 1 | Selector valve | 823509 | 1 | SEE GROUP 2B |
| 2 | Valve peg | 823511 | 1 | EXCL. SPEC. 9882, 9961, 9982 |
| 3 | O-ring | 925057 | 2 | |
| 4 | Split pin | 907861 | 1 | |
| 5 | Flange | 823513 | 1 | EXCL. SPEC. 9882, 9961, 9982 |
| 6 | Cross recessed screw | 950022 | 2 | EXCL. SPEC. 9882, 9961, 9982 |
| 7 | Plug | 914391 | 5 | EXCL. SPEC. 9882, 9961, 9982. |
| 8 | Gasket | 18706 | 5 | EXCL. SPEC. 9882, 9961, 9982. |
| 9 | Hex. socket screw | 956571 | 3 | SEE GROUP 2B |
| 10 | Hex. socket screw | 956572 | 1 | SEE GROUP 2B |
| 11 | Gasket | 11992 | 4 | |
| 12 | O-ring | 925057 | 1 | |
| 13 | Oil feed hose | 820538 | 1 | |
| 14 | Hollow screw | 804478 | 2 | |
| 15 | Gasket | 957184 | 2 | AQ115A MOXXXX/86909-. |
| 16 | Gasket | 957185 | 2 | |
| 17 | O-ring | 925060 | 2 | |
| 18 | Hexagon screw | 940162 | 3 | MO-XXXXX/105194 |
| 19 | Spring washer | 942336 | 3 | |
| 20 | Nipple | 423067 | 2 | |
| 21 | Oil filter | 4785974 | 2 |
| Item | Part Name | Part No. |
| 8 | Gasket 18706 | 18706 |
| Details | |
| Engine model | D100BHC, TD100AHC TAD121CHC TD120AHC, TAD120AHC TD121CHC TD121CRC |
| Application | OIL FILTER WITH INSTALLATION COMPONENTS Repair Kits Repair Kits: A Repair Kits: B |
| Specification | |
| Descriptions | EXCL. SPEC. 9882, 9961, 9982. SPEC. 9882, 9961. |
