Gasket 20495666

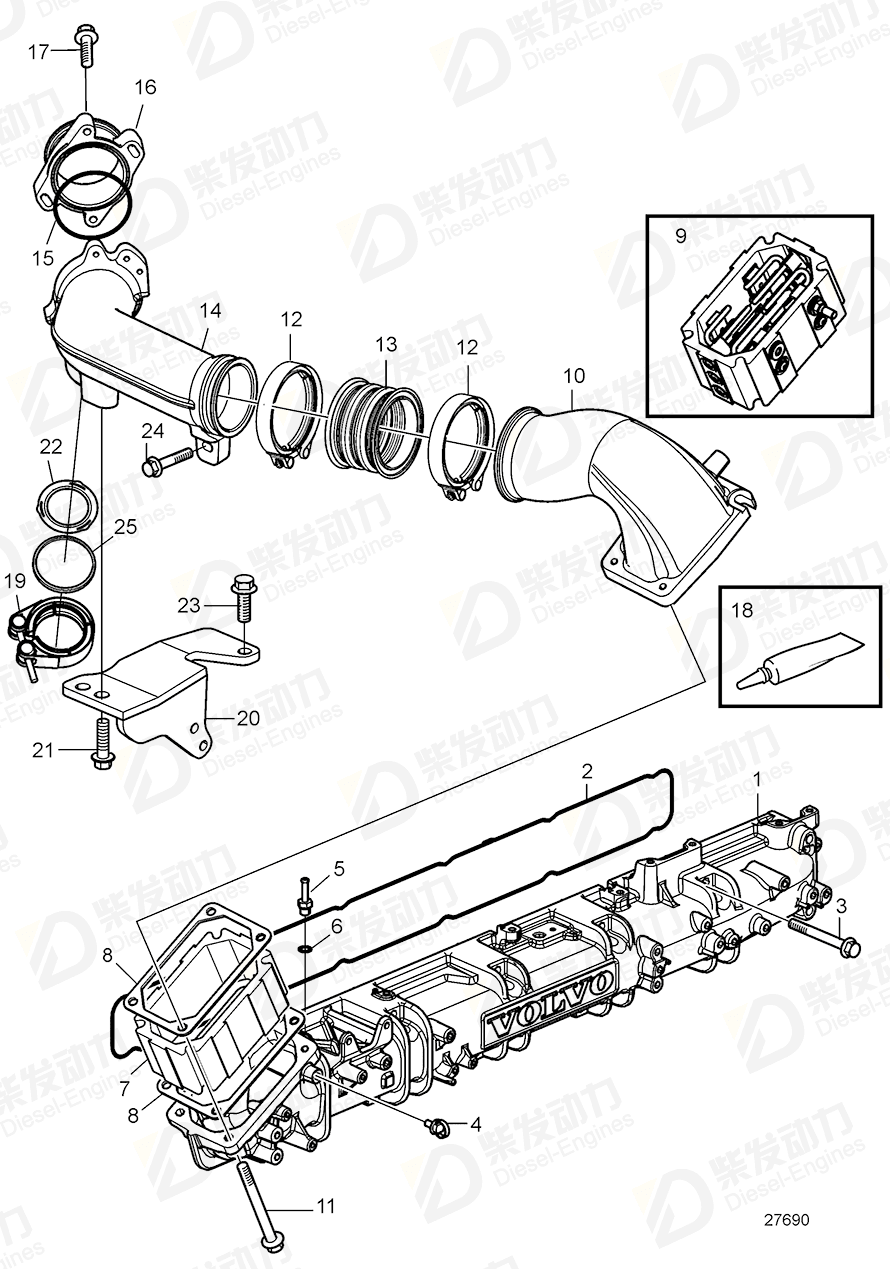

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 21647366 | 1 | |
| 2 | Gasket | 20850506 | 1 | |
| 3 | Flange screw | 996457 | 12 | |
| 4 | Cable tie | 980881 | 1 | |
| 5 | Hose nipple | 945713 | 1 | |
| 6 | Gasket | 947281 | 1 | |
| 7 | Intermediate housing | 21734948 | 1 | |
| 8 | Plane gasket | 3979639 | 2 | |
| 10 | Charge air pipe | 21714924 | 1 | |
| 11 | Flange screw | 984744 | 4 | |
| 12 | V-clamp | 20592783 | 2 | |
| 13 | Charge air hose | 21850594 | 1 | |
| 14 | Mixing chamber | 21725026 | 1 | |
| 15 | O-ring | 948980 | 1 | |
| 16 | Dummy | 22316750 | 1 | |
| 17 | Flange screw | 994385 | 4 | L=45mm |
| 18 | Sealant | 1161231 | 1 | 304ml |
| 18 | Sealant | 1161277 | 1 | 20g |
| 19 | V-clamp | 20504406 | 1 | |
| 20 | Bracket | 22074604 | 1 | |
| 21 | Flange screw | 984754 | 2 | |
| 22 | Gasket | 20495666 | 1 | |
| 23 | Flange screw | 984735 | 1 | |
| 24 | Flange screw | 968163 | 1 | |
| 25 | Cover | 22345636 | 1 |
| Item | Part Name | Part No. |
| 22 | Gasket 20495666 | 20495666 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Inlet Manifold, Air Intake Left Side Inlet Manifold, Air Intake Left Side, forward Inlet Manifold, Air Intake Right Side Repair Kits |
