Gasket 20933261

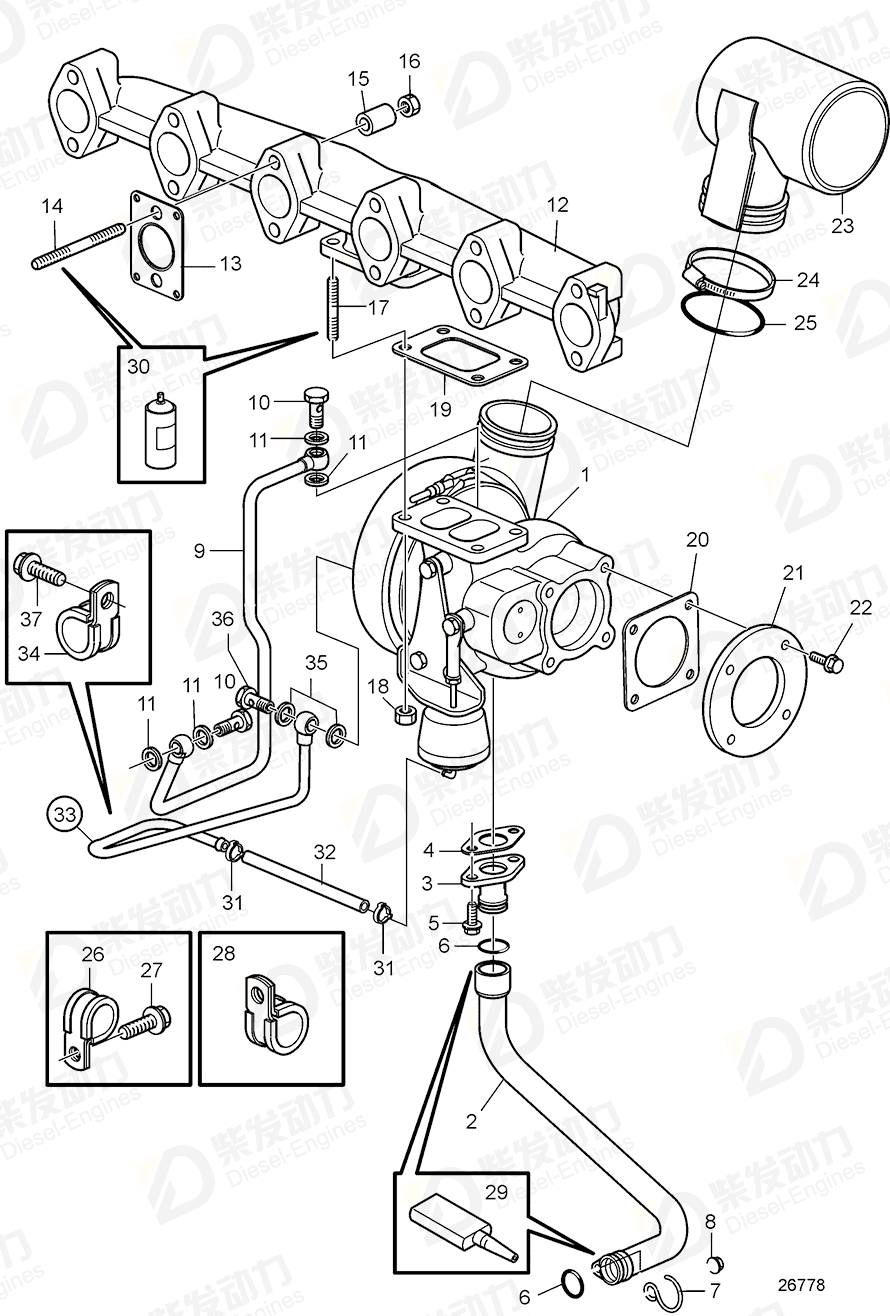

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801533 | 1 | |
| 2 | Return line | 20916677 | 1 | |
| 3 | Flange | 20801403 | 1 | |
| 4 | Plane gasket | 20405790 | 1 | |
| 5 | Flange screw | 975197 | 2 | |
| 6 | O-ring | 20405822 | 2 | |
| 7 | Hook | 21524802 | 1 | |
| 8 | Flange screw | 20405792 | 1 | |
| 9 | Lubricant line | 20903738 | 1 | |
| 10 | Hollow screw | 21527800 | 2 | |
| 11 | Gasket | 969011 | 4 | |
| 12 | Exhaust manifold | 20534529 | 1 | |
| 13 | Gasket | 20933261 | 6 | |
| 14 | Stud | 21456567 | 12 | |
| 15 | Spacer sleeve | 20847865 | 12 | |
| 16 | Nut retainer | 20505959 | 12 | (20405593) |
| 17 | Stud | 20990106 | 4 | |
| 18 | Hexagon nut | 20412308 | 4 | |
| 19 | Gasket | 20559835 | 1 | |
| 20 | Gasket | 20792408 | 1 | |
| 21 | Flange | 21034013 | 1 | |
| 22 | Screw | 20801195 | 4 | |
| 26 | Clamp | 20916686 | 1 | |
| 27 | Flange screw | 20405792 | 1 | |
| 28 | Clamp | 20916692 | 1 | |
| 29 | Adjusting device | 21018254 | 1 | |
| 30 | Adhesive | 21076484 | 1 | |
| 31 | Hose clamp | 20405568 | 2 | |
| 32 | Rubber hose | 21327635 | 1 | L=215mm |
| 33 | Pipe | 21090006 | 1 | |
| 34 | Hose clamp | 21090008 | 1 | |
| 35 | Sealing ring | 20971248 | 2 | |
| 36 | Hollow screw | 888767 | 1 | |
| 37 | Flange screw | 20405898 | 1 |
| Item | Part Name | Part No. |
| 13 | Gasket 20933261 | 20933261 |
| Details | |
| Engine model | TAD550GE, TAD551GE TAD750GE, TAD751GE TAD750VE, TAD760VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo -SN10520359 Exhaust Manifold and Turbocharger. High Mounted Turbo SN10520360- Exhaust Manifold and Turbocharger. Low Mounted Turbo Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front. Charge Air Upwards. |
