Gasket 239058

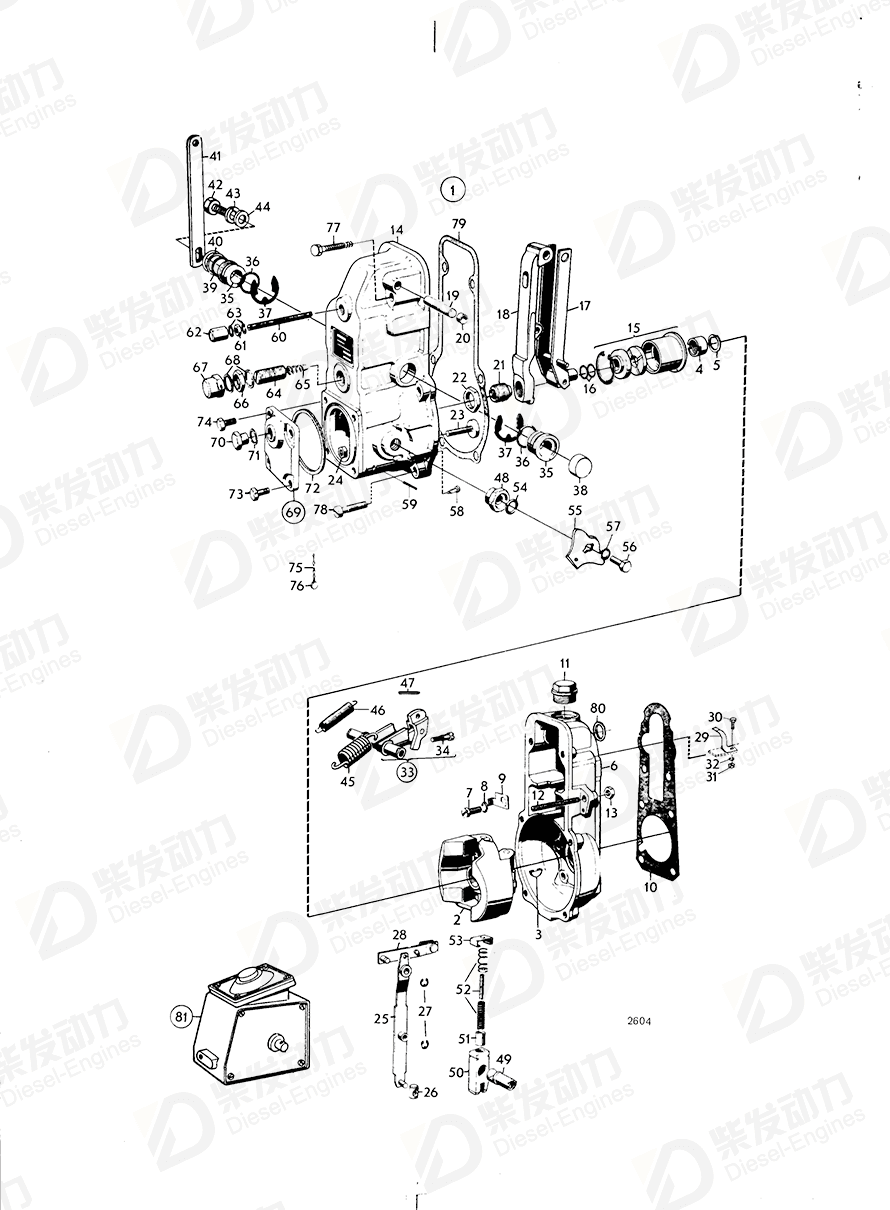

| No. | Part Name | Part Number | Qty | Description |
| 1 | Centrifugal governor | 243455 | 1 | |
| 2 | Weight | 870919 | 1 | |
| 3 | Key | 25464 | 1 | |
| 4 | Round nut | 238994 | 1 | |
| 5 | Spring washer | 238995 | 1 | |
| 6 | Regulator housing | 870907 | 1 | |
| 7 | Cross recessed screw | 956095 | 8 | |
| 8 | Spring washer | 941906 | 8 | |
| 9 | Bracket | 870908 | 1 | |
| 10 | Gasket | 240058 | 1 | |
| 11 | Plug | 240919 | 1 | |
| 12 | Adjusting screw | 243451 | 1 | |
| 13 | Hexagon nut | 955781 | 1 | |
| 14 | Cover | 243775 | 1 | |
| 15 | Bushing | 870878 | 1 | |
| 16 | Spacer | 239007 | 1 | TH=0.2mm |
| 16 | Washer | 239008 | 1 | TH=0.4mm |
| 16 | Washer | 239009 | 1 | TH=1.0mm |
| 17 | Arm | 240373 | 1 | |
| 18 | Tensioning arm | 241008 | 1 | |
| 19 | Shaft | 239017 | 1 | |
| 20 | Plug | 240374 | 2 | |
| 21 | Cover | 239019 | 1 | |
| 22 | Nut | 239020 | 1 | |
| 23 | Screw | 239021 | 1 | |
| 24 | Hexagon nut | 955781 | 1 | |
| 25 | Lever | 240375 | 1 | |
| 26 | Cube | 240376 | 1 | |
| 27 | E-circlip | 951667 | 2 | |
| 29 | Companion flange | 243449 | 1 | |
| 30 | Hexagon screw | 955243 | 1 | |
| 31 | Hexagon nut | 955780 | 1 | |
| 32 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 33 | Swivel arm | 870887 | 1 | |
| 34 | Screw | 239031 | 1 | |
| 35 | Bearing bushing | 240382 | 2 | |
| 36 | Gasket | 240383 | 2 | |
| 37 | E-circlip | 942796 | 2 | |
| 38 | Cover | 239037 | 1 | |
| 39 | Sealing ring | 240063 | 1 | |
| 40 | Adjusting washer | 233994 | 1 | TH=0.5mm |
| 40 | Washer | 238132 | 1 | |
| 40 | Adjusting washer | 240046 | 1 | TH=0.3mm |
| 41 | Arm | 239039 | 1 | |
| 42 | Hexagon screw | 955270 | 1 | |
| 43 | Spring washer | 941906 | 1 | |
| 44 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 45 | Spring | 243643 | 1 | |
| 46 | Spring | 845009 | 1 | (239041) |
| 47 | Hose | 240370 | 2 | |
| 48 | Bearing bushing | 239048 | 1 | |
| 49 | Shaft | 239049 | 1 | |
| 50 | Link | 870917 | 1 | |
| 51 | Sleeve | 239051 | 1 | |
| 52 | Spring | 240386 | 1 | |
| 52 | Spring | 240387 | 1 | |
| 52 | Spring | 240388 | 1 | |
| 53 | Brace | 870916 | 1 | |
| 54 | Gasket | 239058 | 1 | |
| 56 | Hexagon screw | 955270 | 1 | |
| 57 | Spring washer | 941906 | 1 | |
| 58 | Pin | 240390 | 1 | |
| 59 | Pin | 240391 | 1 | |
| 60 | Adjusting screw | 240384 | 1 | |
| 61 | Hexagon nut | 955781 | 1 | |
| 62 | Nut | 870636 | 1 | |
| 63 | Gasket | 190990 | 2 | |
| 64 | Screw | 239044 | 1 | |
| 65 | Spring | 239045 | 1 | |
| 66 | Nut | 239046 | 1 | (870933) |
| 67 | Nut | 870637 | 1 | |
| 68 | Gasket | 18839 | 2 | |
| 69 | Regulator cover | 240393 | 1 | |
| 70 | Screw | 240570 | 1 | |
| 71 | Gasket | 18836 | 1 | |
| 72 | Gasket | 240394 | 1 | |
| 73 | Screw | 870935 | 2 | |
| 74 | Hexagon screw | 955269 | 2 | For 1570594 |
| 77 | Cross recessed screw | 956100 | 2 | |
| 78 | Cross recessed screw | 956097 | 4 | |
| 79 | Gasket | 6643417 | 1 | (239071) |
| 80 | Gasket | 240017 | 1 | Spec.867473 alt |
| 81 | Smoke limiter | 243257 | 1 |
| Item | Part Name | Part No. |
| 54 | Gasket 239058 | 239058 |
| Details | |
| Application | Centrifugal Governor Centrifugal Governor: 240909 Centrifugal Governor: 240910 Centrifugal Governor: 844960 CENTRIFUGAL GOVERNOR: 845390 Centrifugal Governor: 845406 CENTRIFUGAL GOVERNOR: 846602 CENTRIFUGAL GOVERNOR: 847422 CENTRIFUGAL GOVERNOR: 848210 GOVERNOR |
