Gasket 240004

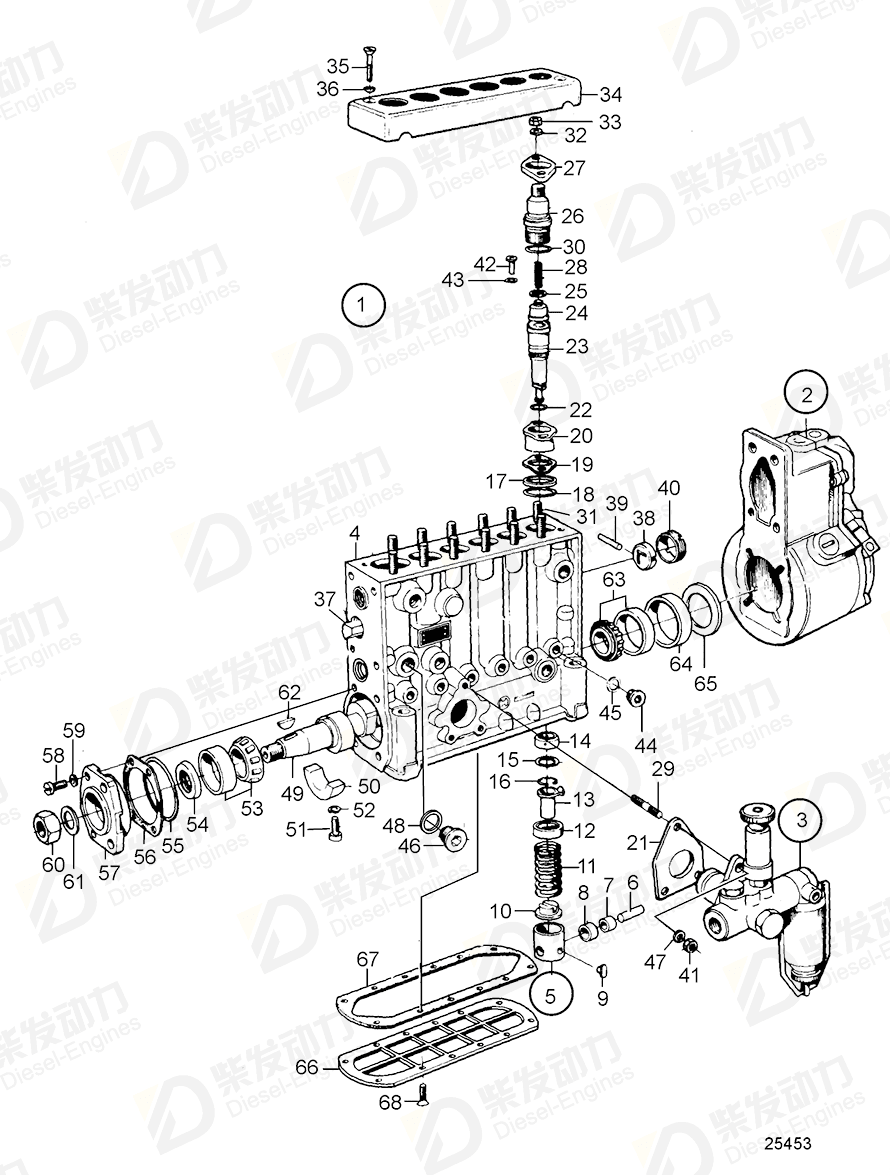

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 467466 | 1 | Included in repair kit 6210761., Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171 |
| 2 | Centrifugal governor | 243829 | 1 | |
| 3 | Feed pump | 243083 | 1 | |
| 5 | Push rod | 244404 | 6 | |
| 6 | Bearing bolt | 240779 | 6 | |
| 7 | Bushing | 240780 | 6 | |
| 8 | Roller | 240781 | 6 | |
| 9 | Plate | 238379 | 6 | |
| 10 | Spring disc | 244685 | 6 | (6211952) |
| 11 | Adjusting washer | 244085 | 6 | (239985) |
| 12 | Spring disc | 239984 | 6 | |
| 13 | Control sleeve | 240782 | 6 | |
| 14 | Cover | 239991 | 6 | |
| 15 | Washer | 241677 | 6 | |
| 16 | Lock ring | 239990 | 6 | |
| 17 | Spacer ring | 240003 | 6 | |
| 18 | Gasket | 240002 | 6 | |
| 19 | Gasket | 240004 | 1 | TH=0.40mm |
| 19 | Gasket | 240005 | 1 | TH=0.50mm |
| 19 | Gasket | 240006 | 1 | TH=0.60mm |
| 19 | Gasket | 240007 | 1 | TH=0.70mm |
| 19 | Gasket | 240008 | 1 | TH=0.80mm |
| 19 | Gasket | 240424 | 1 | TH=0.15mm |
| 20 | Bushing | 243741 | 6 | |
| 21 | Gasket | 863370 | 1 | |
| 22 | O-ring | 240422 | 6 | |
| 23 | Pump element | 240808 | 6 | |
| 24 | Delivery valve | 240423 | 6 | |
| 25 | Sealing washer | 239993 | 6 | |
| 26 | Retainer | 243742 | 6 | |
| 27 | Washer | 243743 | 12 | |
| 28 | Compression spring | 240969 | 6 | |
| 29 | Stud | 130673 | 3 | |
| 30 | O-ring | 240001 | 6 | |
| 31 | Screw | 240010 | 12 | |
| 32 | Spring washer | 941908 | 12 | |
| 33 | Hexagon nut | 955783 | 12 | |
| 34 | Cover | 240011 | 1 | |
| 35 | Cross recessed screw | 956209 | 2 | |
| 36 | Lock washer | 18891 | 2 | |
| 37 | Control rod | 241746 | 1 | |
| 38 | Bushing | 240014 | 2 | |
| 39 | Spring pin | 244008 | 1 | (131015) |
| 40 | Washer | 244699 | 1 | (240015) |
| 41 | Hexagon nut | 955781 | 3 | |
| 42 | Peg | 240971 | 6 | |
| 43 | Washer | 240972 | 1 | TH=0.2mm |
| 43 | Washer | 240973 | 1 | TH=0.5mm |
| 44 | Plug | 837735 | 6 | |
| 45 | Gasket | 18836 | 6 | |
| 46 | Sealing plug | 243263 | 1 | |
| 47 | Spring washer | 941906 | 3 | |
| 48 | Gasket | 240017 | 1 | Spec.867473 alt |
| 49 | Camshaft | 240789 | 1 | |
| 50 | Bearing | 240426 | 1 | |
| 51 | Screw | 240427 | 2 | |
| 52 | Spring washer | 941906 | 2 | |
| 53 | Roller bearing | 240023 | 1 | |
| 54 | Camshaft seal | 864299 | 1 | |
| 55 | O-ring | 243299 | 1 | |
| 56 | Shim | 240024 | 1 | TH=0.15mm |
| 56 | Shim | 240025 | 1 | TH=0.12mm |
| 56 | Shim | 240026 | 1 | TH=0.14mm |
| 56 | Shim | 240027 | 1 | TH=0.16mm |
| 56 | Shim | 240028 | 1 | TH=0.18mm |
| 56 | Shim | 240029 | 1 | TH=0.30mm |
| 56 | Shim | 240030 | 1 | TH=0.50mm |
| 57 | Bearing cover | 240021 | 1 | |
| 58 | Cross recessed screw | 956094 | 4 | |
| 59 | Spring washer | 941906 | 4 | |
| 60 | Hexagon nut | 955806 | 1 | |
| 61 | Spring washer | 941913 | 1 | |
| 62 | Key | 35168 | 1 | |
| 63 | Roller bearing | 240023 | 1 | |
| 64 | Ring | 240032 | 1 | |
| 65 | Shim | 240033 | 1 | TH=1.2mm |
| 65 | Shim | 240034 | 1 | TH=1.5mm |
| 65 | Shim | 240035 | 1 | TH=1.8mm |
| 65 | Shim | 240036 | 1 | TH=2.0mm |
| 66 | Cover | 240947 | 1 | |
| 67 | Gasket | 1698192 | 1 | (240948) |
| 68 | Cross recessed screw | 956205 | 12 |
| Item | Part Name | Part No. |
| 19 | Gasket 240004 | 240004 |
| Details | |
| Application | Fuel Injection Pump Fuel Injection Pump: 240343 Fuel Injection Pump: 240406 Fuel Injection Pump: 240532 Fuel Injection Pump: 241510 Fuel Injection Pump: 241699 Fuel Injection Pump: 243440 Fuel Injection Pump: 243625 Fuel Injection Pump: 467466 FUEL INJECTION PUMP: 836908 Fuel Injection Pump: 836909 Fuel Injection Pump: 836910 Fuel Injection Pump: 836911 Fuel Injection Pump: 837046 Fuel Injection Pump: 837914 Fuel Injection Pump: 842287 Fuel Injection Pump: 843512 FUEL INJECTION PUMP: 843550 Fuel Injection Pump: 843569 Fuel Injection Pump: 843978 Fuel Injection Pump: 843979 Fuel Injection Pump: 845124 Fuel Injection Pump: 846605 Fuel Injection Pump: 846606 Fuel Injection Pump: 846607 Fuel Injection Pump: 870988 |
| Specification | |
| Descriptions | TH = 0.40 mm TH = 0.40mm TH=0.40mm |
Related Products
Tags: Gasket, Volvo Penta, 240004
