Gasket 244338

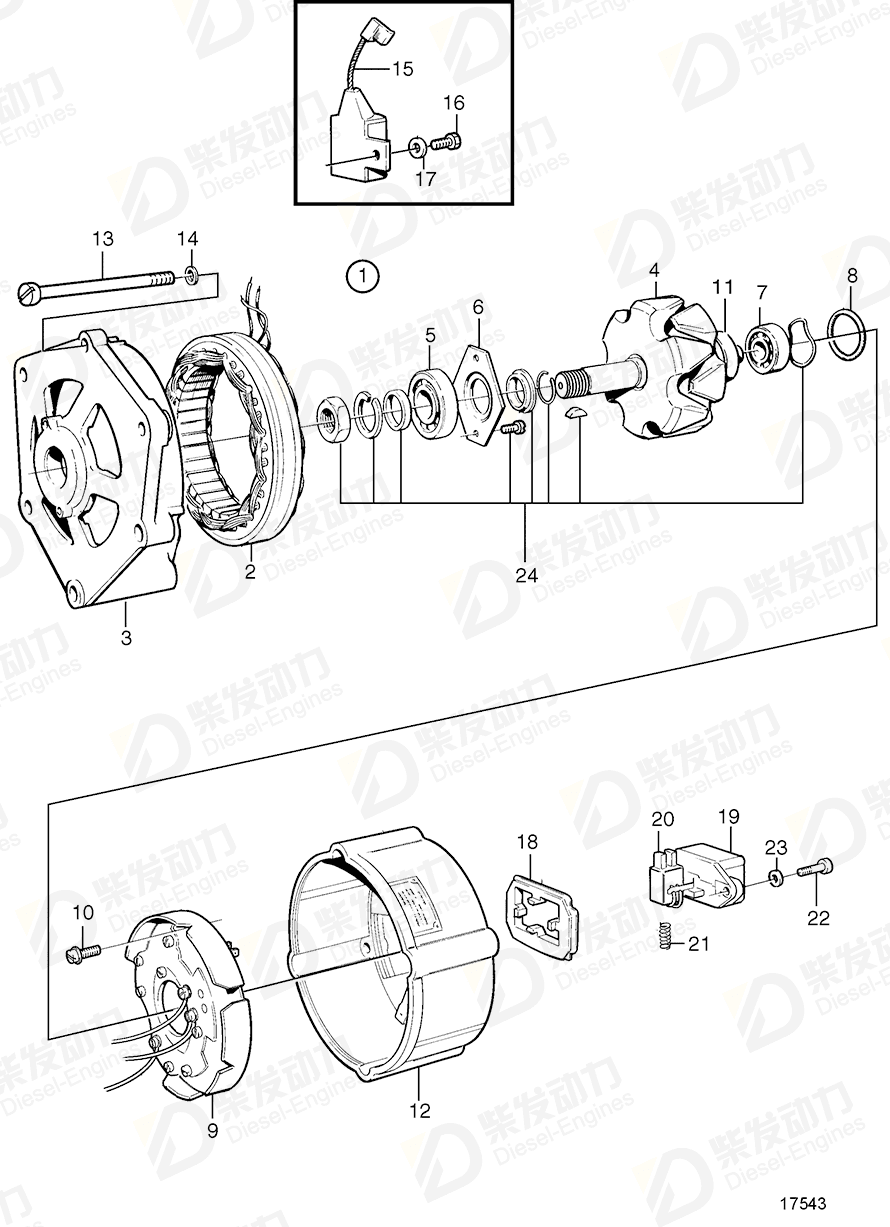

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578938 | 1 | For 12 voltage electric system., 14V 90A,alt |
| 2 | Stator | 244334 | 1 | |
| 5 | Ball bearing | 183486 | 1 | |
| 6 | Retainer | 1698179 | 1 | |
| 7 | Ball bearing | 244328 | 1 | |
| 8 | O-ring | 244331 | 1 | |
| 9 | Rectifier | 3094731 | 1 | (244610) |
| 10 | Screw | 244336 | 3 | |
| 13 | Screw | 1324962 | 4 | |
| 14 | Washer | 940090 | 4 | |
| 15 | Capacitor | 244347 | 1 | (244357) |
| 16 | Cross recessed screw | 956075 | 1 | |
| 17 | Spring washer | 941904 | 1 | |
| 18 | Gasket | 244338 | 1 | |
| 19 | Charge regulator | 244612 | 1 | |
| 20 | Brush set | 244427 | 1 | |
| 21 | Carbon brush set | 1698435 | 2 | (1323485) |
| 22 | Screw | 1323069 | 2 | |
| 23 | Spring washer | 941904 | 2 | |
| 24 | Repair kit | 273503 | 1 |
| Item | Part Name | Part No. |
| 18 | Gasket 244338 | 244338 |
| Details | |
| Application | Alternator Alternator 14V 90A / 28V 45A, Components: 1578140 Alternator 14V 90A / 28V 45A, Components: 1578938 Alternator 28V 45A, Components Alternator, 14V 90A, Components Alternator: 1578140 Alternator: 1578938 |
