Gasket 3979052

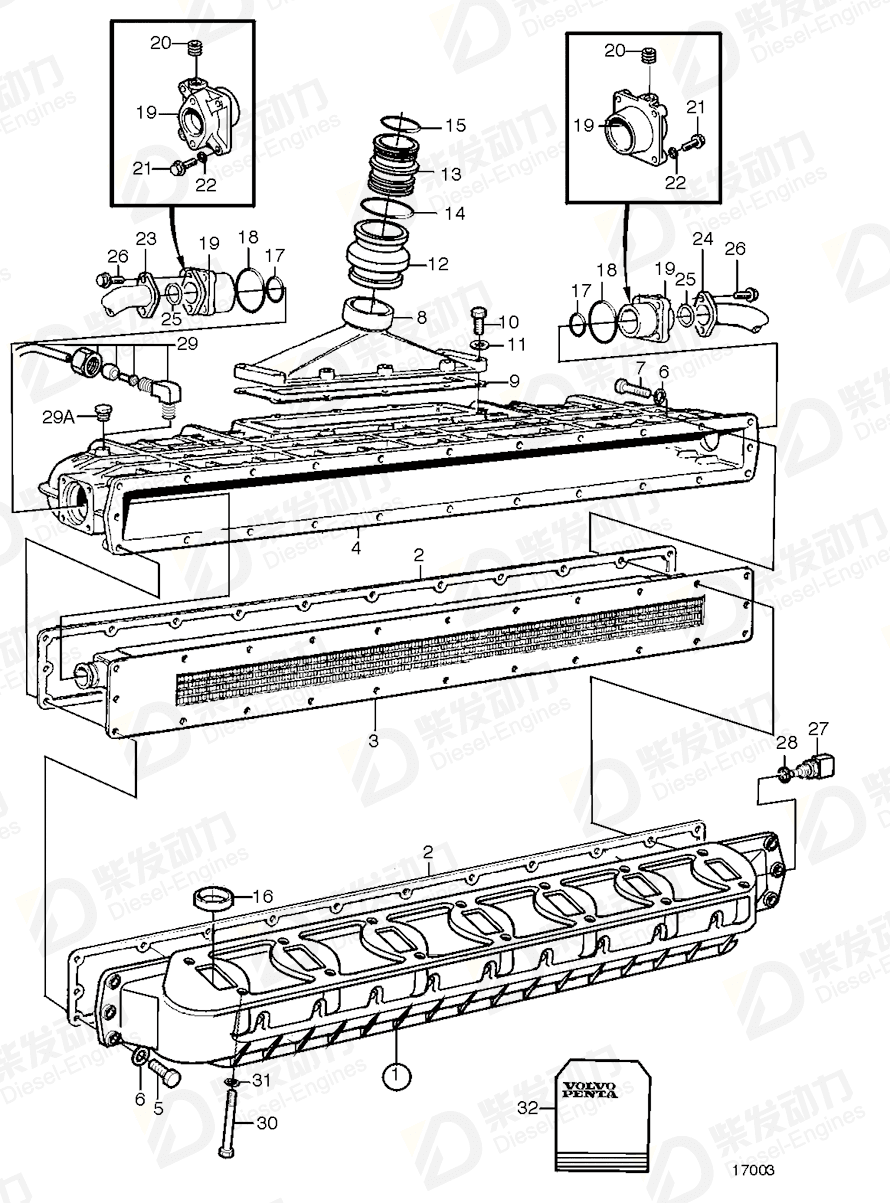

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe, incl. starter element | 425462 | 1 | |
| 1 | Inlet pipe | 3828545 | 1 | |
| 1 | Inlet pipe, incl. starter element | 3979142 | 1 | |
| 2 | Gasket | 3979052 | 2 | |
| 3 | Charge air cooler | 425210 | 1 | |
| 4 | Inlet manifold | 469657 | 1 | |
| 5 | Hexagon screw | 940186 | 14 | |
| 6 | Spring washer | 941907 | 24 | |
| 7 | Hex. socket screw | 956572 | 10 | SEE GROUP 2B |
| 8 | Connecting pipe | 469659 | 1 | |
| 9 | Gasket | 469662 | 1 | |
| 10 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 11 | Washer | 955894 | 10 | |
| 12 | Bellows | 469932 | 1 | |
| 13 | Intermediate pipe | 469510 | 1 | |
| 14 | O-ring | 469508 | 1 | Included in gasket kit. |
| 15 | O-ring | 469509 | 1 | Included in gasket kit. |
| 16 | Sealing ring | 469829 | 6 | Included in gasket kit. |
| 17 | O-ring | 425695 | 2 | |
| 18 | O-ring | 949332 | 2 | |
| 19 | Flange connection | 425824 | 2 | |
| 20 | Plug | 968063 | 2 | |
| 21 | Hexagon screw | 940159 | 8 | |
| 22 | Spring washer | 941907 | 8 | |
| 30 | Hexagon screw | 955530 | 6 | |
| 30 | Hexagon screw | 959793 | 6 | |
| 31 | Washer | 955894 | 12 | |
| 32 | Overhaul kit | 276052 | 1 | See group 99 |
| 29A | Plug | 479979 | 1 |
| Item | Part Name | Part No. |
| 2 | Gasket 3979052 | 3979052 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1631G, TAD1631GE TD1010G, TWD1010G TD164KAE THD102KB THD102KD TID162AG, TID162AGP, TID162AP, TID162APB TWD1010G TWD1031VE TWD1210G TWD1210G, TWD1211G TWD1210P, TWD1211P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1210V, TWD1211V, TWD1230VE TWD1211G TWD1230ME TWD1230VE TWD1230VE, TWD1231VE TWD1231VE TWD1240VE TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | External Cooling System, Induction Manifold and Intercooler Induction Manifold and Intercooler Inlet Manifold and Aftercooler Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, low mounted Turbo Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Repair Kits Repair Kits: A Repair Kits: B |
| Specification | |
| Descriptions | (469661) Included in gasket kit 876025 for induction manifold+intercooler. Included in gasket kit 876025 for induction manifold+intercooler., (469661) |
