Gasket 420171

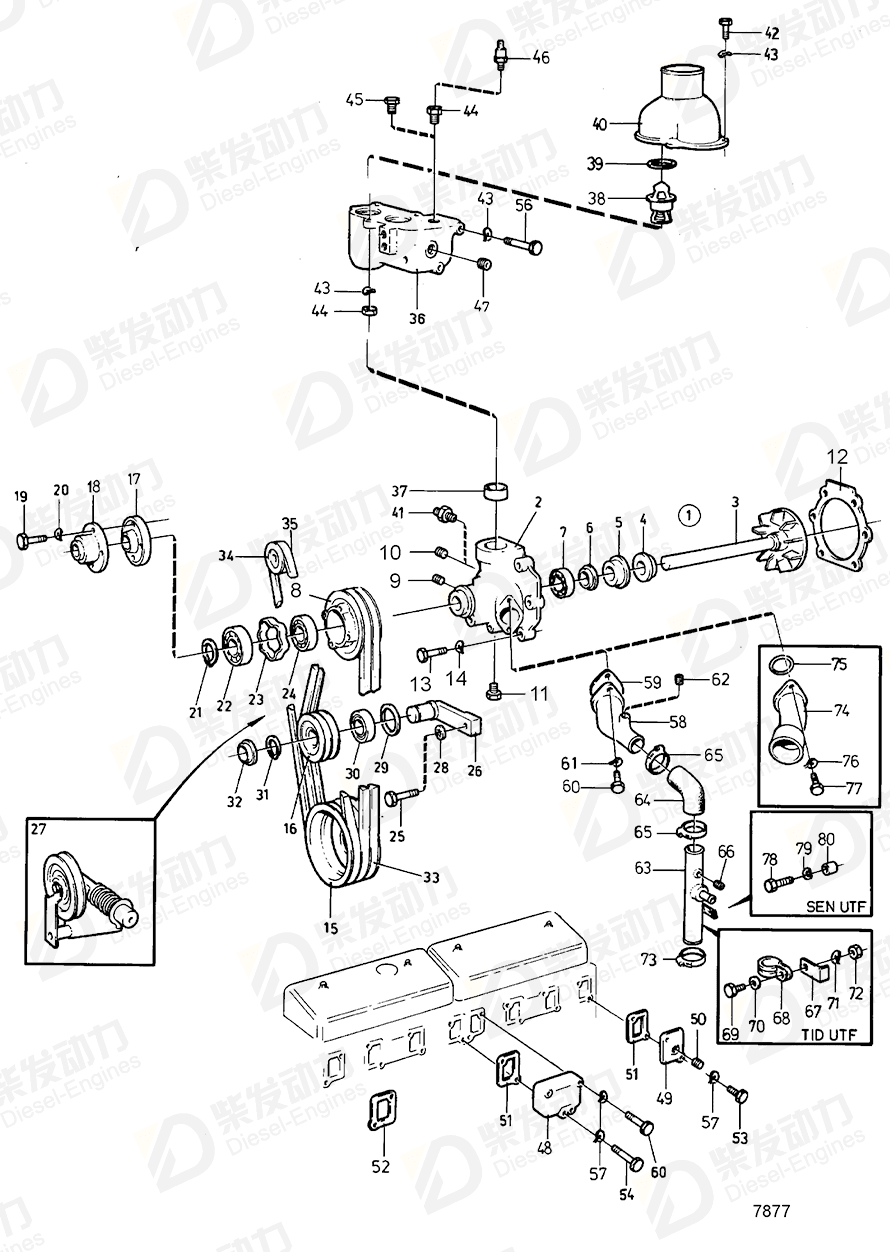

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump | 466833 | 1 | MOXXXXX/98708-., (875629) |
| 1 | Coolant pump | 3803202 | 1 | MOXXXXX/98708-., (875629) |
| 3 | Shaft | 421148 | 1 | |
| 4 | Wear ring | 421306 | 1 | |
| 5 | Sealing ring | 1545283 | 1 | (1542833) |
| 6 | Deflector | 70913 | 1 | |
| 7 | Ball bearing | 181670 | 1 | |
| 8 | V-belt pulley | 466269 | 1 | MAFI spec. 867578. |
| 8 | Pulley | 843741 | 1 | MOXXXXX/98708-. |
| 9 | Plug | 968145 | 1 | (952357) |
| 10 | Plug | 952077 | 1 | |
| 11 | Plug | 192154 | 1 | MO 21083/XXXXX- |
| 12 | Gasket | 421215 | 1 | |
| 13 | Hexagon screw | 940161 | 5 | For engine with 40° angle of inclination, L=45mm |
| 13 | Hexagon screw | 955526 | 1 | MD70BK spec 867116 MOXXXX/9685- |
| 14 | Spring washer | 941907 | 6 | |
| 15 | Pulley | 843742 | 1 | 3-groove |
| 15 | Pulley | 844592 | 1 | 4-groove |
| 15 | Pulley, pulley | 846261 | 1 | 6-groove |
| 16 | V-belt pulley | 411670 | 1 | MO-24392/XXXX |
| 17 | Hub | 466270 | 1 | MAFI spec. 867578. |
| 17 | Hub | 466286 | 1 | MOXXXXX/98708-. |
| 18 | Hub | 422493 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 19 | Hexagon screw | 940159 | 4 | |
| 20 | Spring washer | 941907 | 4 | |
| 21 | Retaining ring | 914462 | 1 | |
| 22 | Ball bearing | 11013 | 1 | |
| 23 | Spacer sleeve | 422202 | 1 | |
| 24 | Ball bearing | 181538 | 1 | |
| 25 | Hexagon screw | 955578 | 1 | |
| 26 | Intermediate lever | 465473 | 1 | MOXXXXX/98708-. |
| 26 | Intermediate lever | 466753 | 1 | |
| 28 | Spring washer | 941911 | 1 | |
| 29 | Retaining ring | 914533 | 1 | |
| 30 | Ball bearing | 1544092 | 1 | (181430) |
| 31 | Retaining ring | 914462 | 1 | |
| 32 | Protecting plate | 420416 | 1 | |
| 33 | V-belt | 947960 | 1 | MO-XXXXX/98707., L=1125mm |
| 33 | V-belt | 947961 | 1 | L=2x1225mm |
| 33 | V-belt | 958539 | 1 | MAFI spec. 867578 MO-144552/222761., L=2X1100mm |
| 33 | V-belt, drive belt kit | 958540 | 1 | MAFI spec. 867578 MO144553/222762-., L=2X1125mm |
| 34 | Pulley | 823006 | 1 | |
| 34 | Pulley | 843248 | 1 | |
| 35 | V-belt | 958314 | 1 | L=1100mm |
| 35 | V-belt | 958365 | 1 | SPEC. 867131., D42A PP SPEC. 16053, 867638., L = 1250 MM |
| 36 | Thermostat housing | 466202 | 1 | |
| 36 | Housing | 466565 | 1 | MAFI spec. 867578. |
| 37 | Seal | 420162 | 1 | |
| 38 | Thermostat kit | 273952 | 2 | MAFI spec. 867578., 81° |
| 38 | Thermostat kit | 875787 | 2 | 76° |
| 38 | Thermostat kit | 875788 | 2 | 70° |
| 39 | Sealing ring | 416033 | 2 | |
| 40 | Tube | 420155 | 1 | |
| 40 | Upper section | 466636 | 1 | MAFI spec. 867578. |
| 41 | Nipple | 943192 | 1 | |
| 42 | Hexagon screw | 940162 | 3 | MO-XXXXX/105194 |
| 42 | Hexagon screw | 955538 | 1 | |
| 42 | Hexagon screw | 955542 | 2 | |
| 43 | Spring washer | 942336 | 3 | |
| 44 | Nipple | 843586 | 1 | |
| 45 | Plug | 952078 | 1 | |
| 47 | Plug | 952077 | 2 | |
| 48 | Flange | 421159 | 1 | |
| 49 | Cover | 421161 | 1 | |
| 50 | Plug | 952077 | 1 | |
| 51 | Gasket | 421160 | 3 | |
| 52 | Gasket | 420160 | 1 | |
| 53 | Hexagon screw | 955535 | 2 | |
| 55 | Hexagon screw | 955537 | 2 | |
| 56 | Hexagon screw | 955539 | 2 | |
| 57 | Spring washer | 942336 | 8 | |
| 58 | Pipe elbow | 820800 | 1 | |
| 59 | Gasket | 420171 | 1 | |
| 60 | Hex. socket screw | 956570 | 1 | |
| 60 | Hex. socket screw | 956571 | 1 | SEE GROUP 2B |
| 61 | Spring washer | 941907 | 2 | |
| 62 | Plug | 952077 | 1 | |
| 63 | Coolant pipe | 846465 | 1 | LMW |
| 64 | Radiator hose | 821128 | 1 | |
| 65 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| 66 | Plug | 952077 | 1 | |
| 67 | Bracket | 965556 | 1 | |
| 68 | Clamp | 945734 | 1 | |
| 69 | Hexagon screw | 955274 | 1 | |
| 70 | Washer | 960140 | 1 | 3-6mm², yellow |
| 71 | Spring washer | 941906 | 1 | |
| 72 | Hexagon nut | 955781 | 1 | |
| 73 | Hose clamp | 943480 | 1 | MO-XXXXX/98707., (951797) |
| 74 | Connecting pipe | 845143 | 1 | For engine with automatic belt tensioner. |
| 75 | O-ring | 925069 | 1 | |
| 76 | Spring washer | 941907 | 2 | |
| 77 | Hexagon screw | 940135 | 2 | |
| 78 | Hexagon screw | 955531 | 1 | Late type |
| 79 | Spring washer | 941907 | 1 | |
| 80 | Overhaul kit | 275607 | 1 | |
| 80 | Spacer sleeve | 823496 | 1 | Late type |
| Item | Part Name | Part No. |
| 59 | Gasket 420171 | 420171 |
| Details | |
| Engine model | D70B D70CHC D70CHC, TD70CHC D70CRC D70CRC, TD70CRC TD60B TD60D TD70B TD70CHC TD70CRC TD70G TD70G-83 TID70G |
| Application | Circulation Pump and Drive Device with Installation Components Circulation Pump and Thermostat with Installation Components Circulation Pump and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components Radiator with Installation Components Repair Kit Repair Kit: A Repair Kit: B Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | LMV LMW |
