Gasket 424628

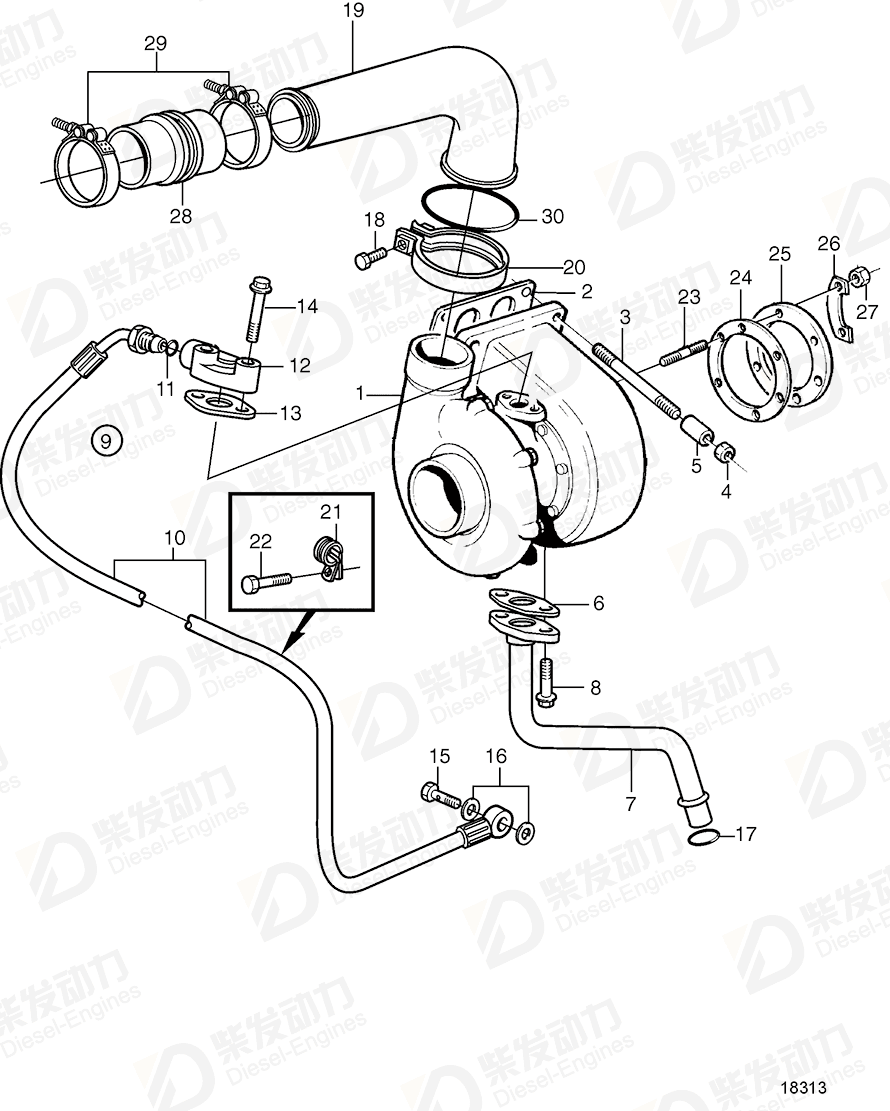

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802121 | 1 | (3827040) |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 2 | |
| 3 | Stud | 20579303 | 2 | (977299) |
| 4 | Flange lock nut | 471622 | 4 | |
| 5 | Spacer sleeve | 470467 | 2 | |
| 6 | Plane gasket | 420643 | 1 | |
| 7 | Oil return pipe | 8192852 | 1 | |
| 8 | Flange screw | 945444 | 2 | |
| 9 | Oil feed hose | 3831061 | 1 | |
| 10 | Oil feed hose | 3830980 | 1 | |
| 11 | O-ring | 976971 | 1 | |
| 12 | Flange | 8192268 | 1 | |
| 13 | Plane gasket | 420641 | 1 | |
| 14 | Hex. socket screw | 963699 | 2 | |
| 15 | Hollow screw | 190713 | 1 | |
| 16 | Gasket | 11996 | 2 | |
| 17 | Rubber moulding | 471626 | 1 | |
| 18 | Hexagon screw | 949335 | 1 | |
| 19 | Charge air pipe | 3827032 | 1 | |
| 20 | V-clamp | 1542778 | 1 | |
| 21 | Clamp | 949747 | 3 | |
| 22 | Flange screw | 947107 | 3 | |
| 23 | Stud | 924064 | 6 | |
| 24 | Gasket | 424628 | 1 | Included in gasket kit. |
| 25 | Flange | 844935 | 1 | |
| 26 | Tab washer | 947071 | 3 | TD60B PP |
| 27 | Hexagon nut | 946330 | 6 | |
| 28 | Charge air hose | 865127 | 1 | |
| 29 | Hose clamp | 865575 | 2 | |
| 30 | Sealing ring | 1542781 | 1 |
| Item | Part Name | Part No. |
| 24 | Gasket 424628 | 424628 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TAD740GE TAD740GE, TAD741GE TAD741GE TD61A TD61ACE TD61AP TD71A TD71A, TD71ACE TD71A, TWD710V, TWD731VE, TAD730V TD71AG TD71AP, TID71AP TD730ME TD730VE TD730VE, TWD731VE TID71A TID71A, TWD710V TID71AG TWD710G TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TWD710P TWD710P, TAD730P TWD710V TWD730ME, TWD731ME TWD731ME TWD731VE TWD740GE TWD740VE |
| Application | Repair Kit Repair Kits: A Repair Kits: B Repair Kits: C Silencer and Installation Components, &Power &Pack Silencer and Installation Components,&Power&pack: A Silencer and Installation Components,&Power&pack: TD61APB Silencer, Engine Mounted Silencer, Engine Mounted: B Turbocharger Turbocharger and Installation Components Turbocharger and Installation Components,low Mounted Turbocharger and Installation Components: A Turbocharger and Installation Components: B Turbocharger with Installation Components Turbocharger, Low Mounted Turbocharger: A Turbocharger: B Turbocharger: C |
| Specification | |
| Descriptions | (466390) 6 hole 6 holes., For engine with turbo 847857 or 848556. For turbo 847857 and 848556, (466390) Included in gasket kit. |
