Gasket 424888

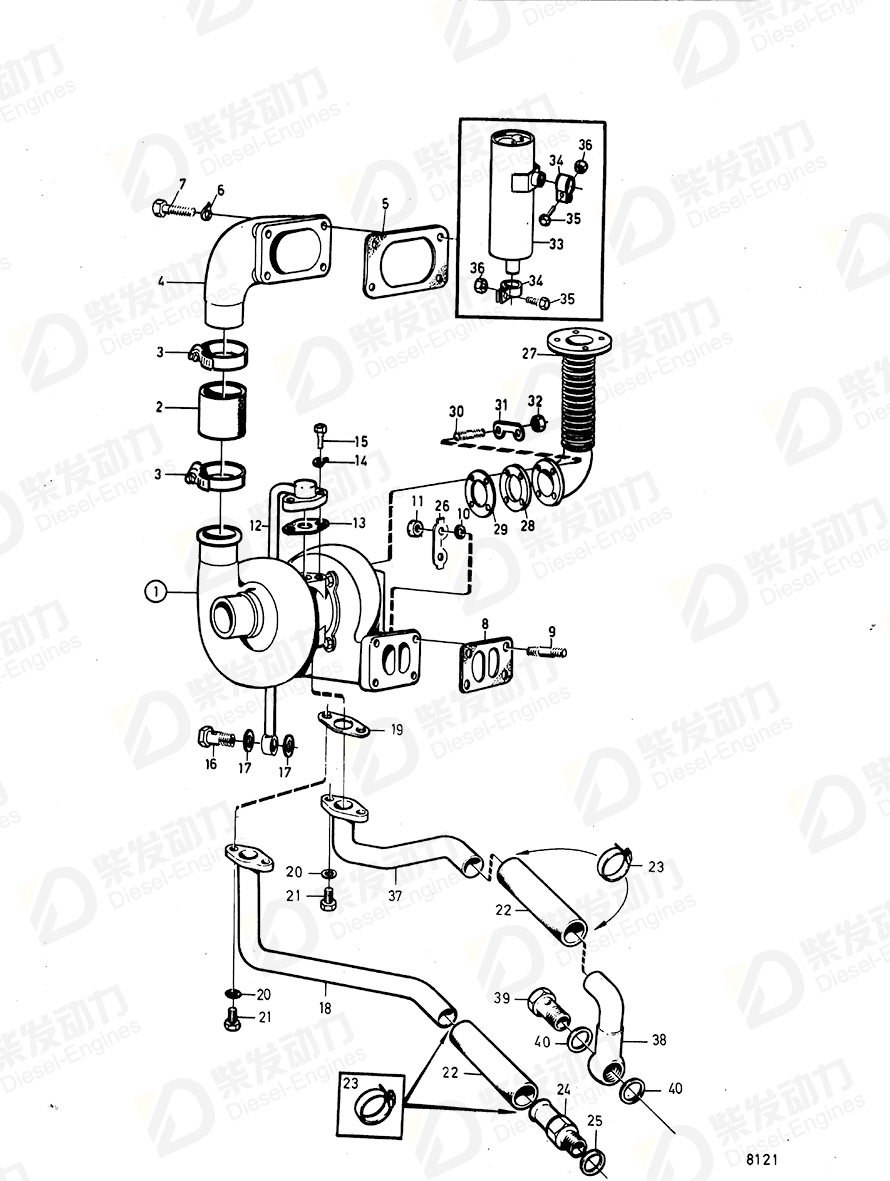

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 1542190 | 1 | Replaced by 1pc 1545644 turbo, 1pc 154645 pipe and 1 PC 1545646 pipe |
| 1 | Turbocharger | 1545644 | 1 | |
| 2 | Hose | 466327 | 1 | |
| 3 | Hose clamp | 943479 | 2 | |
| 4 | Connecting pipe | 1542291 | 1 | |
| 5 | Gasket | 424888 | 1 | |
| 6 | Spring washer | 941907 | 4 | |
| 7 | Hexagon screw | 940142 | 4 | ÅKERMAN. |
| 8 | Gasket | 421324 | 1 | |
| 9 | Stud | 924077 | 4 | |
| 10 | Washer | 940097 | 4 | |
| 11 | Hexagon nut | 940183 | 4 | |
| 12 | Feed line | 1542258 | 1 | |
| 13 | Gasket | 422838 | 1 | Included in turbo. |
| 14 | Spring washer | 941907 | 2 | |
| 15 | Hexagon screw | 955295 | 1 | |
| 15 | Hexagon screw | 955297 | 1 | |
| 16 | Hollow screw | 25167 | 1 | |
| 17 | Gasket | 969011 | 2 | |
| 18 | Oil return pipe | 1542260 | 1 | MO-17868 |
| 19 | Gasket | 422838 | 1 | Included in turbo. |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Hexagon screw | 955295 | 2 | |
| 22 | Hose | 466328 | 1 | |
| 23 | Hose clamp | 994559 | 2 | |
| 24 | Hose nipple | 948931 | 1 | |
| 25 | Gasket, plug | 18677 | 1 | |
| 26 | Tab washer | 942167 | 2 | |
| 28 | Flange | 844809 | 1 | |
| 29 | Gasket | 847583 | 1 | (6854724) |
| 30 | Stud | 924062 | 4 | |
| 31 | Tab washer | 949134 | 2 | |
| 32 | Hexagon nut | 955782 | 4 | |
| 33 | Silencer | 476584 | 1 | |
| 34 | Clamp | 191296 | 2 | Suction type |
| 35 | Hexagon screw | 955319 | 2 | |
| 36 | Lock nut | 971083 | 2 | |
| 37 | Tube | 1542059 | 1 | MO17869- |
| 37 | Oil return pipe | 1545646 | 1 | For 1545644 |
| 38 | Tube | 1542060 | 1 | MO17869- |
| 39 | Hollow screw | 191157 | 1 | |
| 40 | Gasket | 947627 | 2 |
| Item | Part Name | Part No. |
| 5 | Gasket 424888 | 424888 |
| Details | |
| Engine model | TD30A TD40A |
| Application | Repair Kit Repair Kits Turbo and Installation Components |
