Gasket 468243

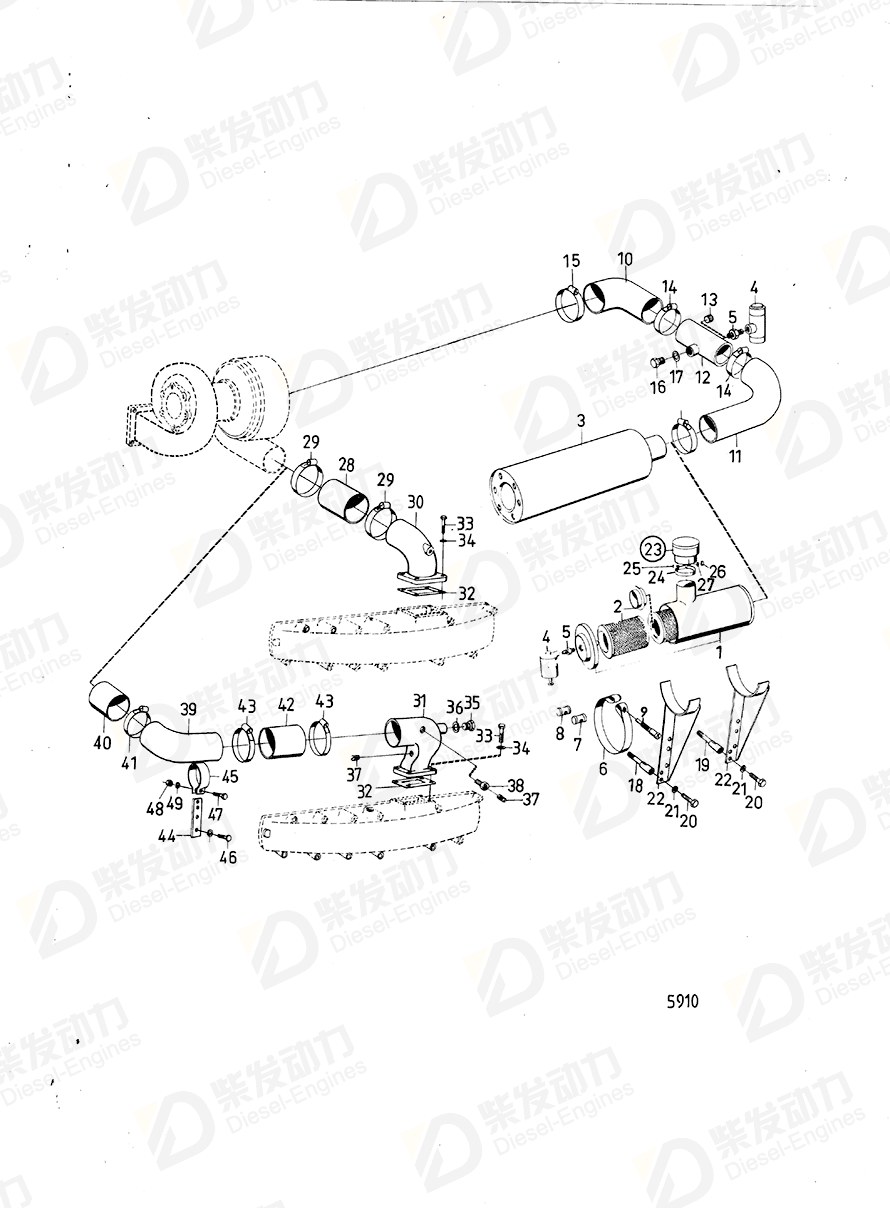

| No. | Part Name | Part Number | Qty | Description |
| 1 | Air filter | 820585 | 1 | Early type |
| 2 | Filter cartridge | 822137 | 3 | Early type |
| 3 | Air filter | 823701 | 1 | Late type |
| 4 | Pressure drop indica | 842037 | 1 | |
| 5 | Nipple | 191095 | 1 | |
| 6 | Tensioning band | 821028 | 2 | |
| 7 | Clevis pin, threaded | 31404 | 2 | |
| 8 | Pin | 31405 | 2 | |
| 9 | Hexagon screw | 31406 | 2 | |
| 10 | Hose | 821264 | 1 | |
| 11 | Hose | 821265 | 1 | Early type |
| 11 | Rubber bend | 824358 | 1 | Late type |
| 12 | Tube | 821270 | 1 | |
| 13 | Plug | 16325 | 1 | |
| 14 | Hose clamp | 943483 | 3 | (951800) |
| 15 | Hose clamp | 943484 | 1 | (951801) |
| 16 | Plug | 192114 | 1 | |
| 17 | Gasket | 957185 | 1 | |
| 18 | Screw | 821267 | 1 | When emergency stop is mounted., L=85mm |
| 18 | Screw | 821268 | 1 | When emergency stop is mounted., L=73mm |
| 19 | Screw | 821269 | 2 | When emergency stop is mounted., L=41mm |
| 20 | Hexagon screw | 955523 | 4 | |
| 21 | Washer | 955894 | 4 | |
| 22 | Bracket | 824276 | 2 | |
| 23 | Cover | 820760 | 1 | |
| 25 | Hexagon screw | 955535 | 1 | |
| 26 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 27 | Spring washer | 942336 | 1 | |
| 28 | Hose | 952986 | 1 | L=55mm |
| 29 | Hose clamp | 943482 | 2 | (951798) |
| 30 | Connecting pipe | 422058 | 1 | |
| 30 | Connecting pipe, connecting pipe | 850273 | 1 | When coolant supervision not is mounted, (467407) |
| 31 | Tube | 821683 | 1 | When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685- |
| 32 | Gasket | 422075 | 1 | |
| 32 | Gasket | 468243 | 1 | When coolant supervision not is mounted |
| 33 | Hexagon screw | 940159 | 4 | |
| 34 | Washer | 955894 | 4 | |
| 35 | Plug | 192114 | 1 | |
| 36 | Gasket | 957185 | 1 | |
| 37 | Plug | 16325 | 2 | |
| 39 | Tube | 821689 | 1 | When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685- |
| 40 | Hose | 952986 | 1 | L=55mm |
| 41 | Hose clamp | 943482 | 2 | (951798) |
| 42 | Hose | 942713 | 1 | Engine without emergency stop., L=80mm |
| 43 | Hose clamp | 943483 | 2 | (951800) |
| 44 | Bracket | 836338 | 1 | When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685- |
| 45 | Clamp | 191297 | 1 | When coolant supervision is mounted, MD70BK spec 867116 MOXXXX/9685- |
| 46 | Hexagon screw | 940098 | 2 | |
| 47 | Hexagon screw | 955537 | 1 | |
| 48 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 49 | Spring washer | 942336 | 3 |
| Item | Part Name | Part No. |
| 32 | Gasket 468243 | 468243 |
| Details | |
| Engine model | D100B D70B TAD120BHC TAD120CHC TD100A TD120A TD120BHC TD120BRC TD120C TD120G TD120GG TID120FG TID120FPP |
| Application | Air Filter and Installation Components Connecting Pipe and Starting Element with Installation Comp. Housing Induction and Exhaust Manifold with Installation Components Induction and Exhaust Manifold with Installation Components: D Induction- and Exhaust Manifold Induction- and Exhaust Manifold: B INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B INTERCOOLER AND INSTALLATION COMPONENTS Repair Kits Repair Kits: A Repair Kits: B Repair Kits: D Starting Element and Installation Components Starting Element and Installation Components: A Starting Element and Installation Components: B |
| Specification | |
| Descriptions | D70B MO43034/XXXXX-., FOR ENGINE WITHOUT VOLVO PENTA RADIATOR. Early production D70B spec. 867060. TD70B spec. 867066., Spec. 867221. See group 2B When coolant supervision not is mounted |
