Gasket 469327

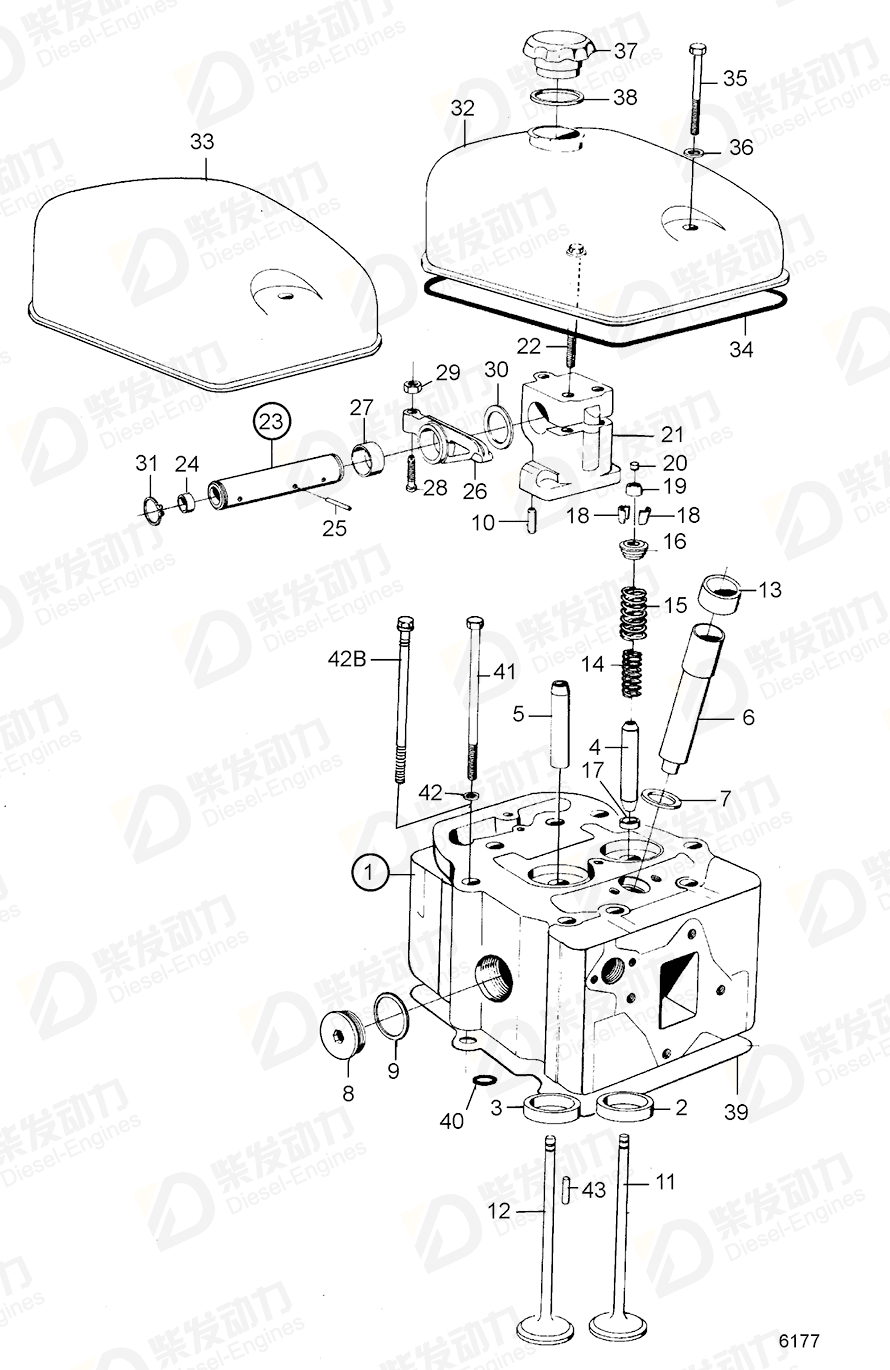

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803040 | 6 | (423259) |
| 2 | Valve seat, intake | 423011 | 6 | Std |
| 2 | Valve seat, intake | 423208 | 6 | 0,20mm o.s |
| 3 | Valve seat, exhaust | 468448 | 6 | Std |
| 3 | Valve seat, exhaust | 468449 | 6 | 0,20mm o.s |
| 4 | Valve guide, intake | 422320 | 6 | |
| 5 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 6 | Nozzle sleeve | 468263 | 6 | |
| 7 | Sealing ring | 469205 | 6 | |
| 8 | Plug | 467365 | 12 | |
| 9 | Gasket | 469327 | 12 | |
| 10 | Pin | 949020 | 12 | |
| 11 | Inlet valve | 468302 | 6 | Replaced by 1pc 468302, 1pc 468304, 1pc 468305. |
| 12 | Exhaust valve | 468303 | 6 | Replaced by 1pc 468303, 1pc 468304, 1pc 468305. |
| 13 | Sealing ring | 468210 | 6 | |
| 14 | Valve spring, i | 468066 | 12 | MO609/XXXX-., Late type |
| 15 | Valve spring, | 468067 | 12 | MO609/XXXX-., Late type |
| 16 | Washer, upper | 468064 | 12 | MO609/XXXX-., Late type |
| 17 | Valve spring washer, lower | 468065 | 12 | MO609/XXXX-., Late type |
| 18 | Valve cotter | 402418 | 24 | |
| 21 | Bearing bracket | 423266 | 6 | |
| 22 | Flange screw | 423331 | 18 | |
| 23 | Rocker arm shaft | 423267 | 6 | |
| 24 | Cap plug | 946778 | 12 | |
| 25 | Pin | 950499 | 6 | |
| 26 | Rocker arm | 423263 | 12 | |
| 27 | Bushing | 422066 | 12 | |
| 28 | Ball stud | 423058 | 12 | |
| 29 | Hexagon nut | 940175 | 12 | |
| 30 | Washer | 423269 | 12 | |
| 31 | Retaining ring | 914459 | 12 | |
| 32 | Cover | 423404 | 1 | |
| 33 | Cover | 423403 | 5 | |
| 34 | Gasket | 468963 | 6 | (468352) |
| 35 | Hexagon screw | 955527 | 12 | |
| 36 | Gasket | 942580 | 12 | |
| 37 | Oil filler cap | 420292 | 1 | |
| 38 | Gasket | 940096 | 1 | |
| 39 | Cylinder head gasket | 275548 | 6 | |
| 40 | Sealing ring | 422413 | 6 | D=11mm |
| 40 | Sealing ring | 422415 | 12 | D=18mm |
| 40 | Sealing ring | 423326 | 12 | |
| 41 | Screw | 423485 | 48 | Early type |
| 42 | Washer | 423486 | 48 | Early type |
| 42 | Flange screw | 470261 | 48 | Late type |
| 43 | Pin | 950543 | 12 |
| Item | Part Name | Part No. |
| 9 | Gasket 469327 | 469327 |
| Details | |
| Engine model | D100A, TD100A D100BHC D120A DH10A TAD1030G TAD1030G, TD1010G, TWD1010G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1031GE TAD1032GE TAD120AHC TAD120CHC TAD121CHC TAD1230G TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1230V TAD1231GE, TAD1232GE TAD1631G, TAD1631GE TD100AHC TD100CHC TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030ME, TWD1030ME TD1030VE TD1030VE, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G, TD120GG TD1210G TD121CHC TD121CRC TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87 TD121GP-87, TWD1210P, TWD1211P TD164KAE THD102KB THD102KD TID120FG TWD1030ME TWD1031VE TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | Cylinder Block Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Flywheel Housing Flywheel Housing: A Flywheel Housing: B Flywheel Housing: C Repair Kits Repair Kits,: A Repair Kits,: B REPAIR KITS: A Repair Kits: B REPAIR KITS: C Repair Kits: TID100-87 |
| Specification | |
| Descriptions | (422182) (468461) Early type Later prod SN-2100287585 |
