Gasket 469487

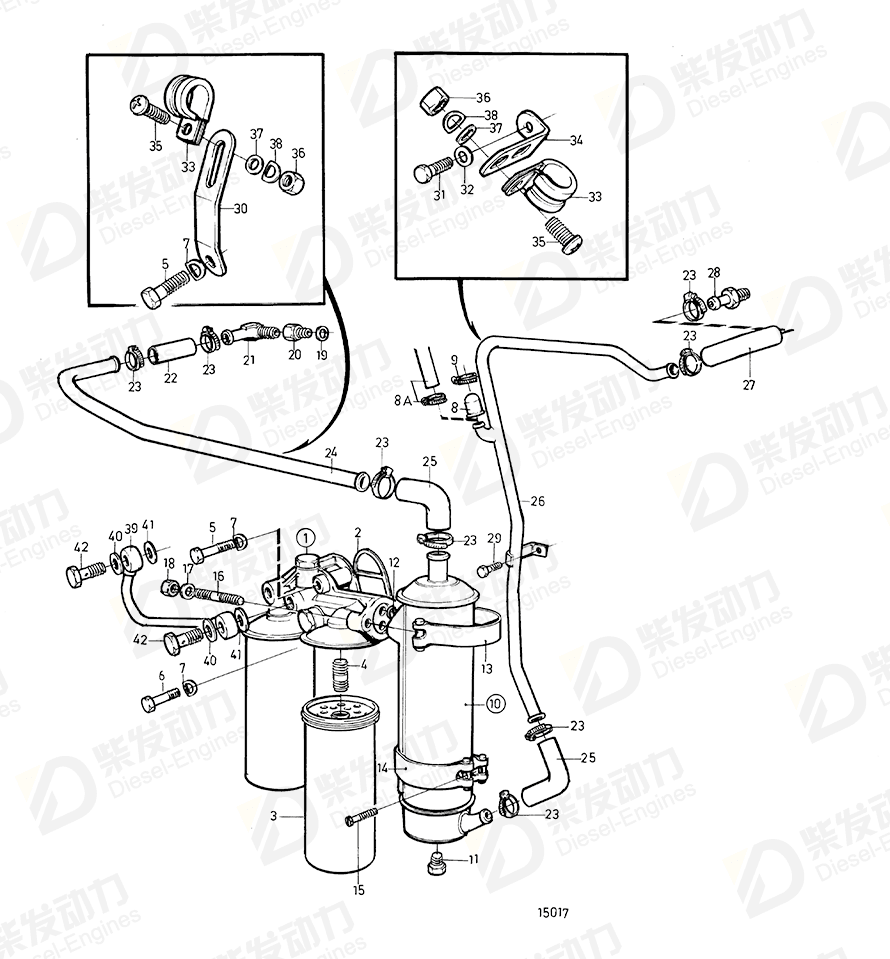

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing, oil filter | 8194717 | 1 | |
| 2 | Gasket | 469487 | 1 | |
| 3 | Oil filter | 466634 | 2 | |
| 4 | Nipple | 466623 | 2 | |
| 5 | Hexagon screw | 955544 | 2 | |
| 6 | Hexagon screw | 940115 | 2 | |
| 7 | Spring washer | 942336 | 4 | |
| 8 | Cap | 842235 | 1 | |
| 9 | Hose clamp | 945754 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 10 | Oil cooler | 468035 | 1 | Repl by 1544501 |
| 11 | Plug | 479979 | 1 | |
| 12 | Sealing ring | 469483 | 2 | (422581) |
| 13 | Tensioning band | 1545255 | 1 | Late type |
| 14 | Tensioning band | 1545256 | 1 | (468659) early type |
| 15 | Hexagon screw | 1545257 | 1 | Late type |
| 16 | Stud | 924072 | 2 | |
| 17 | Washer | 976944 | 2 | |
| 18 | Hexagon nut | 955782 | 2 | |
| 19 | Gasket | 468463 | 1 | |
| 20 | Nipple | 422550 | 1 | |
| 21 | Elbow nipple | 942590 | 1 | |
| 22 | Rubber hose | 943369 | 1 | L=165 mm |
| 23 | Hose clamp | 994559 | 8 | |
| 24 | Coolant pipe | 1545816 | 1 | SN2100285979- |
| 25 | Hose | 351574 | 2 | SN2100285979- |
| 26 | Coolant pipe | 848698 | 1 | Oil cooler-water pump. |
| 27 | Hose | 467538 | 1 | MOXXXXX/109942- |
| 28 | Nipple, water pump | 479974 | 1 | (942691) |
| 29 | Flange screw | 942624 | 1 | 5/16UNCx13 |
| 30 | Bracket | 1545880 | 1 | SN2100285979- |
| 31 | Hexagon screw | 940133 | 1 | |
| 32 | Spring washer | 942336 | 1 | |
| 33 | Clamp | 952632 | 2 | Late type |
| 34 | Bracket | 965553 | 1 | |
| 35 | Cross recessed screw | 950046 | 2 | |
| 36 | Hexagon nut | 955825 | 2 | Late type |
| 37 | Washer | 955893 | 2 | |
| 38 | Spring washer | 941906 | 2 | |
| 39 | Oil pressure pipe, piston cooling | 422819 | 1 | |
| 40 | Gasket | 11998 | 2 | |
| 41 | Gasket | 942703 | 2 | |
| 42 | Hollow screw | 942007 | 2 | (954394) |
| Item | Part Name | Part No. |
| 2 | Gasket 469487 | 469487 |
| Details | |
| Engine model | TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD1031GE TAD1032GE TD100CRC TD100G-87 TD1010G, TWD1010G TD1030ME TD1030ME, TWD1030ME TD1030VE TD1030VE, TAD1030V, TWD1031VE TWD1030ME TWD1031VE |
| Application | Housing-oil Filter Oil Cooler and Oil Filter Oil Cooler and Oil Filter: A Oil Cooler and Oil Filter: B Oil Filter and Installation Components Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: TD100-87 |
