Gasket 469662

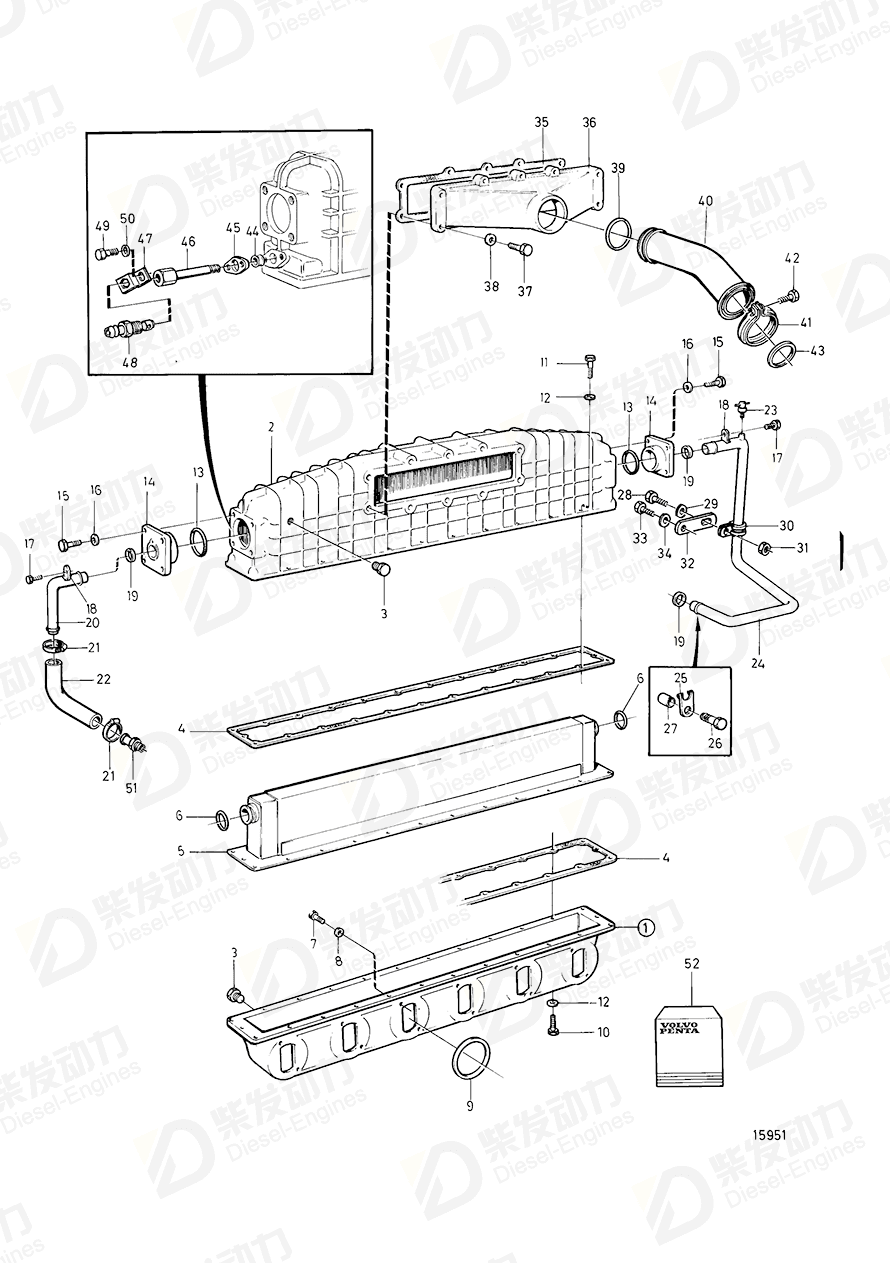

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 847692 | 1 | Repl by 3826309 |
| 2 | Tube | 424802 | 1 | |
| 3 | Plug | 479979 | 3 | |
| 4 | Gasket | 3979052 | 2 | |
| 5 | Charge air cooler | 866457 | 1 | |
| 6 | O-ring | 425695 | 2 | |
| 7 | Hexagon screw | 955531 | 5 | Late type |
| 7 | Hexagon screw | 959793 | 5 | |
| 7 | Hexagon screw | 959796 | 2 | L=140mm |
| 8 | Spring washer | 941907 | 12 | |
| 9 | O-ring | 469830 | 6 | |
| 10 | Hexagon screw | 940186 | 16 | |
| 11 | Hex. socket screw | 956572 | 10 | SEE GROUP 2B |
| 12 | Washer | 955894 | 26 | |
| 13 | O-ring | 949332 | 2 | |
| 14 | Flange | 848564 | 2 | |
| 15 | Hexagon screw | 955525 | 8 | |
| 16 | Spring washer | 941907 | 8 | |
| 17 | Flange screw | 965175 | 2 | |
| 18 | Clamp | 849152 | 2 | |
| 19 | Rubber moulding | 471626 | 3 | |
| 20 | Tube | 848567 | 1 | |
| 21 | Hose clamp | 943474 | 2 | |
| 22 | Hose | 467538 | 1 | MOXXXXX/109942- |
| 23 | Shut-off cock | 82744 | 1 | |
| 24 | Tube | 848566 | 1 | |
| 25 | Anchorage | 865044 | 1 | |
| 26 | Hexagon screw | 955589 | 1 | |
| 27 | Spacer sleeve | 865074 | 1 | |
| 28 | Cross recessed screw | 950047 | 1 | |
| 29 | Spring washer | 941906 | 1 | |
| 30 | Clamp | 952632 | 1 | Late type |
| 31 | Hexagon nut | 955825 | 1 | Late type |
| 32 | Bracket | 843711 | 1 | |
| 33 | Hexagon screw | 955588 | 1 | |
| 34 | Spring washer | 941912 | 1 | |
| 35 | Gasket | 469662 | 1 | |
| 36 | Connecting pipe | 469659 | 1 | |
| 37 | Hexagon screw | 940161 | 10 | For engine with 40° angle of inclination, L=45mm |
| 38 | Spring washer | 941907 | 10 | |
| 39 | O-ring | 469508 | 1 | Included in gasket kit. |
| 40 | Connecting pipe | 866965 | 1 | |
| 41 | V-clamp | 1542778 | 1 | |
| 42 | Hexagon screw | 949335 | 1 | |
| 43 | Sealing ring | 1542781 | 1 | |
| 44 | Sealing ring | 3825051 | 1 | |
| 45 | Flange | 3825050 | 1 | |
| 46 | Shut-off cock | 3825067 | 1 | |
| 47 | Lock plate | 11031112 | 1 | |
| 48 | Peg | 966723 | 1 | |
| 49 | Hexagon screw | 955514 | 2 | L = 25 MM |
| 50 | Spring washer | 949607 | 2 | |
| 51 | Nipple, water pump | 479974 | 1 | (942691) |
| 52 | Gasket kit | 876049 | 1 | See group 99 |
| 52 | Gasket kit | 876180 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 35 | Gasket 469662 | 469662 |
| Details | |
| Engine model | DH10A DH10A, THD102KD, THD102KB TAD1631G, TAD1631GE TD1010G, TWD1010G TD164KAE THD102KB THD102KD TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TID162AG, TID162AGP, TID162AP, TID162APB TWD1010G TWD1030ME TWD1031VE TWD1210G TWD1210G, TWD1211G TWD1210P, TWD1211P TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V TWD1210V, TWD1211V, TWD1230VE TWD1211G TWD1230ME TWD1230VE TWD1230VE, TWD1231VE TWD1231VE TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | External Cooling System, Induction Manifold and Intercooler Induction Manifold and Installation Components Induction Manifold and Intercooler Inlet Manifold and Aftercooler Inlet Manifold and Installation Components Inlet Manifold with Intercooler, High Mounted Turbo Inlet Manifold with Intercooler, High Mounted Turbo: A Inlet Manifold with Intercooler, High Mounted Turbo: B Inlet Manifold with Intercooler, low mounted Turbo Inlet Manifold with Intercooler, Low Mounted Turbo: A Inlet Manifold with Intercooler, Low Mounted Turbo: B Repair Kits Repair Kits: A Repair Kits: B Repair Kits: TID100-87 |
| Specification | |
| Descriptions | Included in gasket kit 876025 for induction manifold+intercooler. |
