Gasket 808275

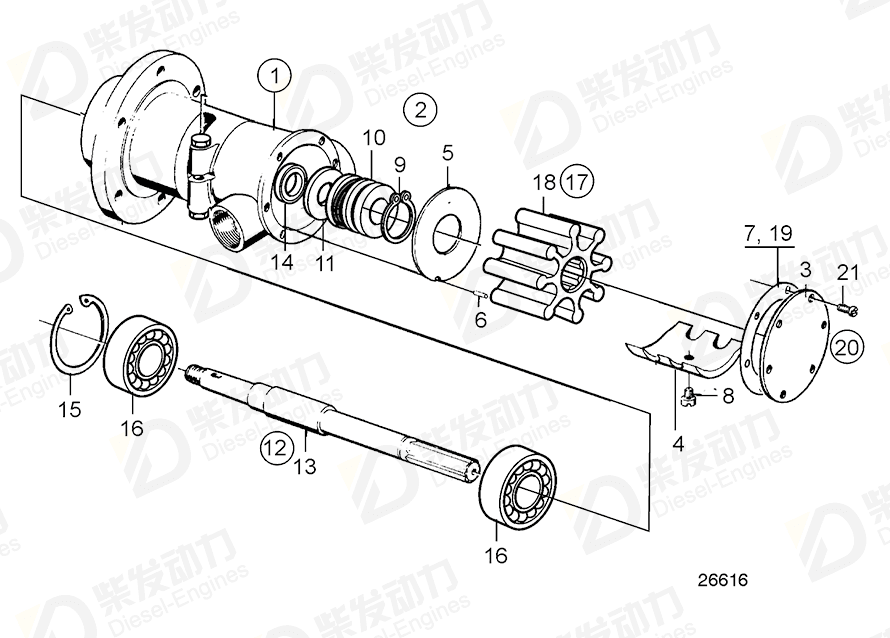

| No. | Part Name | Part Number | Qty | Description |
| 1 | Sea water pump | 837371 | 1 | |
| 2 | Wear kit | 21951394 | 1 | |
| 3 | Cap | 815573 | 1 | |
| 5 | Wear washer | 826246 | 1 | |
| 6 | Pin | 826239 | 1 | |
| 7 | Gasket | 808275 | 1 | |
| 9 | Lock ring | 809444 | 1 | |
| 10 | Sealing | 822708 | 1 | |
| 11 | Deflector | 826238 | 1 | |
| 12 | Shaft kit | 21951457 | 1 | |
| 13 | Pump shaft | 826250 | 1 | |
| 14 | Sealing | 825737 | 1 | |
| 15 | Retaining ring | 21422641 | 1 | |
| 16 | Ball bearing | 11013 | 2 | |
| 17 | Impeller kit | 3841697 | 1 | Replaced by next part number |
| 17 | Impeller kit | 21422647 | 1 | Replaced by next part number |
| 17 | Impeller kit | 21951356 | 1 | |
| 19 | Gasket | 808275 | 1 | |
| 20 | Screw kit | 21951336 | 1 | |
| 21 | Screw | 808285 | 6 |
| Item | Part Name | Part No. |
| 7 | Gasket 808275 | 808275 |
| Details | |
| Engine model | D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC TD70CHC |
| Application | Repair Kits: A Repair Kits: C Sea Water Pump |
