Gasket 836169

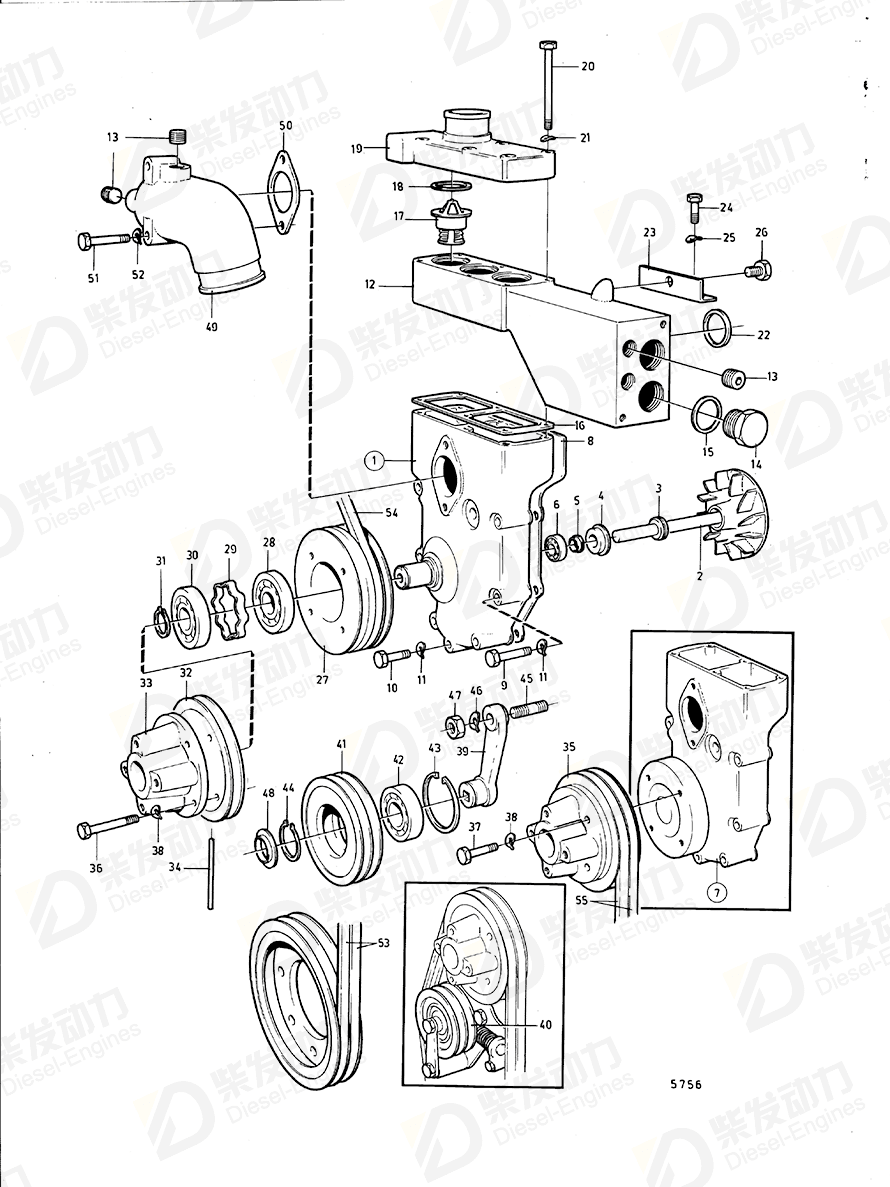

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 422312 | 1 | Replaced by hose 192618, L=1000mm. |
| 1 | Coolant pump | 3803205 | 1 | Replaced by hose 192618, L=1000mm. |
| 2 | Shaft | 422148 | 1 | |
| 3 | Wear ring | 421306 | 1 | |
| 4 | Sealing ring | 1542833 | 1 | |
| 5 | Deflector | 70913 | 1 | |
| 6 | Ball bearing | 181670 | 1 | |
| 7 | Water pump | 844379 | 1 | Alt.qty.depending on how many temp.sensors and thermoswitches that are mounted., For 827021. |
| 8 | Gasket | 423127 | 1 | |
| 9 | Hexagon screw | 955542 | 6 | |
| 10 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 11 | Spring washer | 942336 | 8 | |
| 12 | Thermostat housing | 837185 | 1 | |
| 13 | Plug | 952077 | 4 | |
| 14 | Plug | 914396 | 1 | Early type |
| 15 | Gasket | 836169 | 1 | Early type |
| 16 | Gasket | 821853 | 1 | |
| 17 | Thermostat | 467014 | 3 | 76°C MO-33839/XXXX |
| 17 | Thermostat | 824200 | 3 | 70°C MO 33840/XXXX- |
| 17 | Thermostat kit | 3831425 | 3 | 76°C later prod |
| 17 | Thermostat kit | 3831426 | 3 | 70°C later prod |
| 18 | Sealing ring | 416033 | 3 | |
| 19 | Cover | 422552 | 1 | MO 20506/XXXX- |
| 20 | Hexagon screw | 191652 | 6 | |
| 21 | Spring washer | 942336 | 6 | |
| 22 | Hose | 820725 | 2 | |
| 23 | Anchorage | 820728 | 1 | |
| 24 | Hexagon screw | 940115 | 2 | |
| 25 | Washer | 940097 | 2 | |
| 26 | Hexagon screw | 955560 | 1 | |
| 27 | V-belt pulley | 423125 | 1 | |
| 28 | Ball bearing | 181538 | 1 | |
| 29 | Spacer sleeve | 422202 | 1 | |
| 30 | Ball bearing | 11013 | 1 | |
| 31 | Retaining ring | 914462 | 1 | |
| 32 | V-belt pulley | 422499 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 33 | Hub | 422493 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 34 | Spring pin | 951969 | 1 | Spec. 867139. |
| 35 | Pulley, 2 grooves | 843599 | 1 | For turbo with rotor 842063. |
| 36 | Hexagon screw | 940159 | 4 | |
| 37 | Hexagon screw | 940186 | 4 | |
| 38 | Spring washer | 941907 | 4 | |
| 39 | Lever | 207811 | 1 | MO-24392/XXXX |
| 39 | Lever | 422628 | 1 | Replaced by 1pc 837455, 1pc 823543, 1pc 823544, 1pc 875428 (mounting kit), 13516 L=100mm. |
| 41 | V-belt pulley | 411670 | 1 | MO-24392/XXXX |
| 41 | V-belt pulley | 465328 | 1 | Replaced by 1pc 837455, 1pc 823543, 1pc 823544, 1pc 875428 (mounting kit), 13516 L=100mm. |
| 42 | Ball bearing | 1544092 | 1 | (181430) |
| 43 | Retaining ring | 914533 | 1 | |
| 44 | Retaining ring | 914462 | 1 | |
| 45 | Stud | 953583 | 1 | |
| 46 | Spring washer | 941911 | 1 | |
| 47 | Hexagon nut | 955828 | 1 | |
| 48 | Protecting plate | 420416 | 1 | |
| 49 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 50 | Gasket | 423138 | 1 | |
| 51 | Hexagon screw | 955537 | 1 | |
| 51 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 52 | Spring washer | 942336 | 2 | |
| 53 | V-belt | 947961 | 1 | L=2x1225mm |
| 54 | V-belt | 947950 | 1 | Replaced by 1pc 842029 and 1pc 842028., L=825mm |
| 54 | V-belt | 958301 | 1 | Replaced by 837000 and 1pc 898683., L=775mm |
| 54 | V-belt | 958310 | 1 | Replaced by 1pc 842042, 1pc 842044, 1pc 837863, 2pcs 940100, 2pcs 941906, L=1000mm |
| 55 | Repair kit | 875661 | 1 | For 827021., See group 10A |
| 55 | Rope | 875667 | 1 | For 820967., See group 10A |
| 55 | V-belt set | 949313 | 1 | For 827021., L=2x1325mm |
| Item | Part Name | Part No. |
| 15 | Gasket 836169 | 836169 |
| Details | |
| Engine model | D100BHC D100BHC, TD100AHC D70CHC D70CHC, TD70CHC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100AHC TD100CHC TD100CRC TD120AHC TD120BHC TD120BRC TD121CHC TD70CHC |
| Application | After Cooler with Installation Components HEAT EXCHANGER AND THERMOSTAT WITH INSTALLATION COMPONENTS Heat Exchanger and Thermostat with Installation Components: A Heat Exchanger and Thermostat with Installation Components: B Heat Exchanger and Thermostat with Installation Components: C Repair Kits REPAIR KITS: A Repair Kits: B REPAIR KITS: C Repair Kits: D Thermostat and Water Pump with Installation Comps, Classed Engine Tube Heat Exchanger and Thermostat with Installation Components: A Tube Heat Exchanger and Thermostat with Installation Components: B |
| Specification | |
| Descriptions | Early type |
Related Products
Tags: Gasket, Volvo Penta, 836169
