Gasket 843690

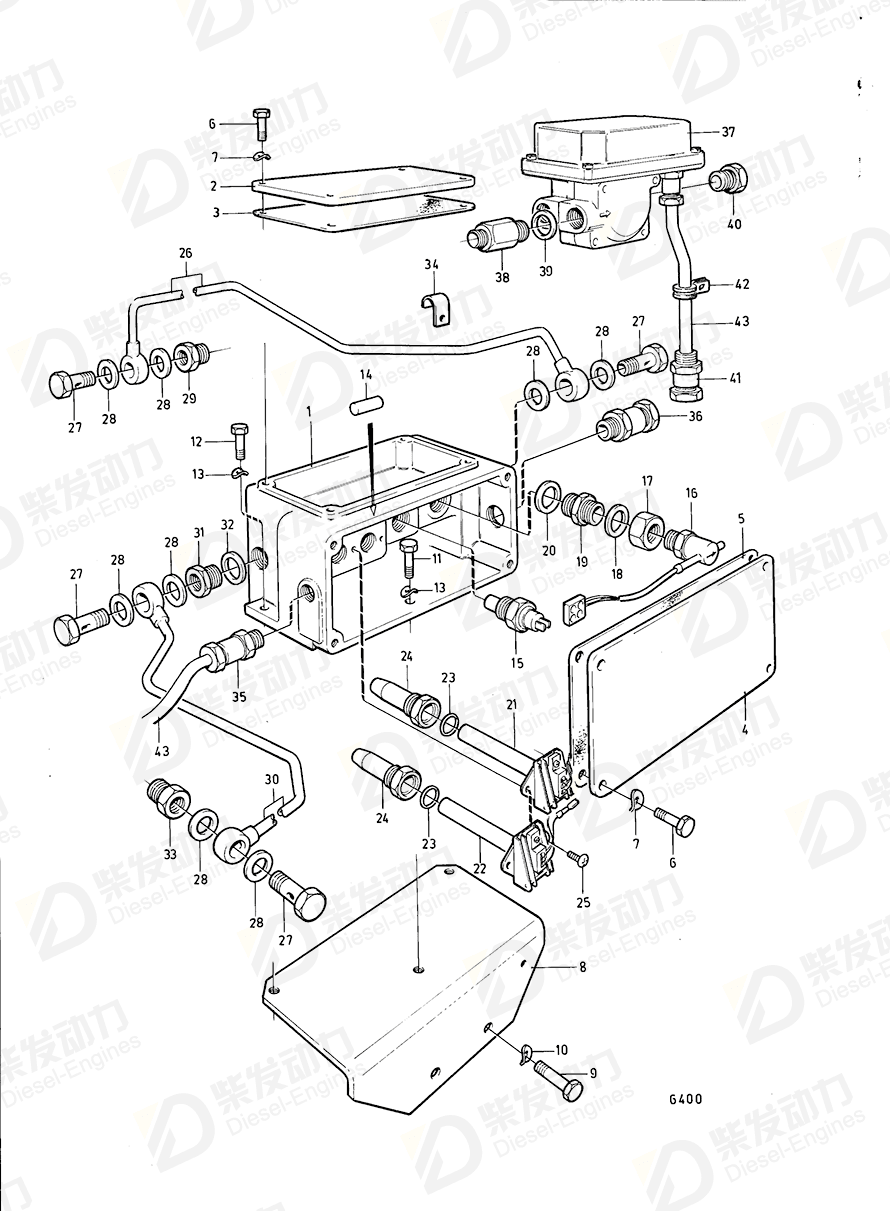

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 843686 | 1 | |
| 2 | Cap | 844039 | 1 | |
| 3 | Gasket | 844041 | 1 | |
| 4 | Cover | 843687 | 1 | |
| 5 | Gasket | 843690 | 1 | |
| 6 | Hexagon screw | 955272 | 8 | |
| 7 | Spring washer | 941906 | 8 | |
| 8 | Bracket | 844126 | 1 | |
| 9 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Hexagon screw | 955295 | 1 | |
| 12 | Hex. socket screw | 959220 | 1 | |
| 12 | Hex. socket screw | 959222 | 1 | L = 25 MM |
| 13 | Spring washer | 941907 | 3 | |
| 14 | Piston | 845597 | 1 | EARLY TYPE |
| 15 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 16 | Flow monitor | 843756 | 1 | EARLY TYPE |
| 17 | Lock nut | 843640 | 1 | |
| 18 | Gasket | 957181 | 1 | |
| 19 | Nipple | 843688 | 1 | |
| 20 | Gasket | 15304 | 1 | |
| 21 | Thermo monitor | 843769 | 1 | STOP |
| 22 | Thermo monitor | 843767 | 1 | ALARM |
| 23 | Gasket | 957179 | 2 | For governor 225-1200. |
| 24 | Sleeve | 843288 | 2 | |
| 25 | Cross recessed screw | 956063 | 3 | |
| 26 | Tube | 844128 | 1 | |
| 27 | Hollow screw | 25167 | 4 | |
| 28 | Gasket | 957178 | 8 | |
| 29 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 30 | Tube | 844129 | 1 | |
| 31 | Nipple | 843689 | 1 | |
| 32 | Gasket | 957183 | 1 | |
| 33 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 34 | Clamp | 942542 | 1 | |
| 35 | Grommet | 881191 | 1 | Early type |
| 36 | Grommet | 881193 | 1 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 37 | Flow monitor | 846622 | 1 | LATE TYPE |
| 38 | Nipple | 846632 | 1 | LATE TYPE |
| 39 | Gasket | 18671 | 1 | |
| 40 | Nipple | 844127 | 1 | SPEC. 867131., SEE GROUP 3 |
| 41 | Grommet | 822327 | 1 | |
| 42 | Clamp | 952630 | 5 | D = 17.5 MM LATE TYPE |
| 42 | Clamp | 952633 | 3 | D = 22.2 MM LATE TYPE |
| 42 | Clamp | 952637 | 2 | D = 25.4 MM LATE TYPE |
| 42 | Clamp | 952641 | 5 | D = 34.9 MM LATE TYPE |
| Item | Part Name | Part No. |
| 5 | Gasket 843690 | 843690 |
| Details | |
| Engine model | D100BHC D100BRC D70CHC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TD70CHC TD70CRC |
| Application | Coolant Supervision and Installation Components Coolant Supervision and Installation Components: A Coolant Supervision and Installation Components: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D |
