Gasket 860684

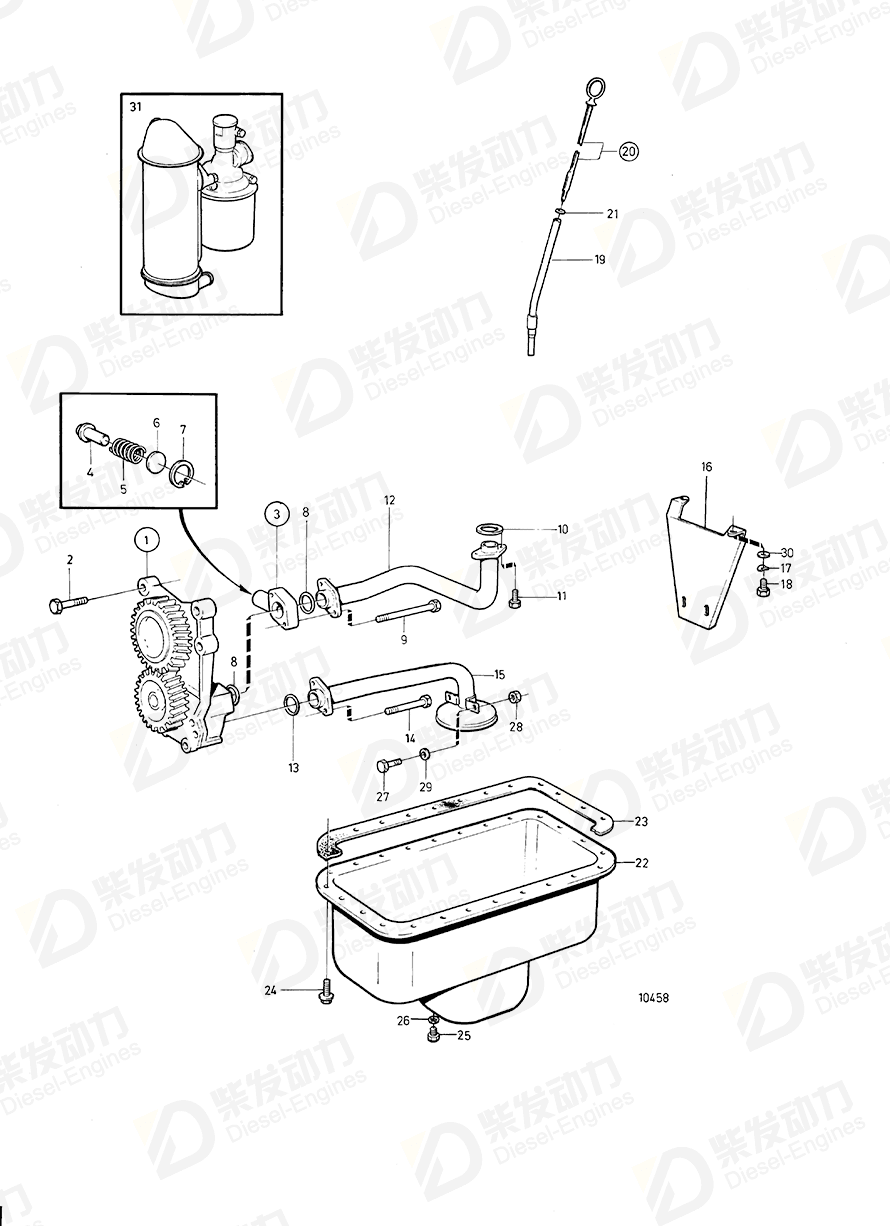

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 860718 | 1 | |
| 1 | Oil pump | 1544125 | 1 | Repl by 860718 |
| 2 | Flange screw | 948217 | 4 | |
| 3 | Reduction valve | 1542255 | 1 | |
| 4 | Reduction valve | 471115 | 1 | |
| 5 | Spring | 1542257 | 1 | |
| 6 | Disc | 948343 | 1 | |
| 7 | Snap ring | 914506 | 1 | |
| 8 | Sealing ring, pipe bend | 469482 | 2 | (424346) |
| 9 | Flange screw | 969189 | 2 | L=85mm |
| 10 | Sealing ring | 1542385 | 2 | |
| 11 | Flange screw | 946173 | 2 | |
| 12 | Delivery pipe | 859055 | 1 | |
| 13 | O-ring | 949657 | 1 | (925060) |
| 14 | Flange screw | 965180 | 2 | |
| 15 | Suction pipe | 858264 | 1 | |
| 16 | Baffle plate | 858148 | 1 | |
| 17 | Disc spring | 942385 | 2 | |
| 18 | Flange screw | 944926 | 2 | |
| 19 | Tube | 858221 | 1 | |
| 20 | Oil dipstick | 838961 | 1 | |
| 21 | O-ring | 949187 | 1 | |
| 22 | Sump | 838922 | 1 | |
| 23 | Gasket | 860684 | 1 | |
| 24 | Flange screw | 946440 | 26 | |
| 25 | Plug, 3/4-UNF | 948187 | 1 | |
| 26 | Gasket | 18818 | 1 | |
| 27 | Flange screw | 945444 | 2 | |
| 28 | Flange lock nut | 948645 | 2 | |
| 29 | Washer | 960141 | 2 | |
| 30 | Washer | 960141 | 2 |
| Item | Part Name | Part No. |
| 23 | Gasket 860684 | 860684 |
| Details | |
| Engine model | TD30A TD31ACE |
| Application | Lubricating System Repair Kits |
