Gasket 863370

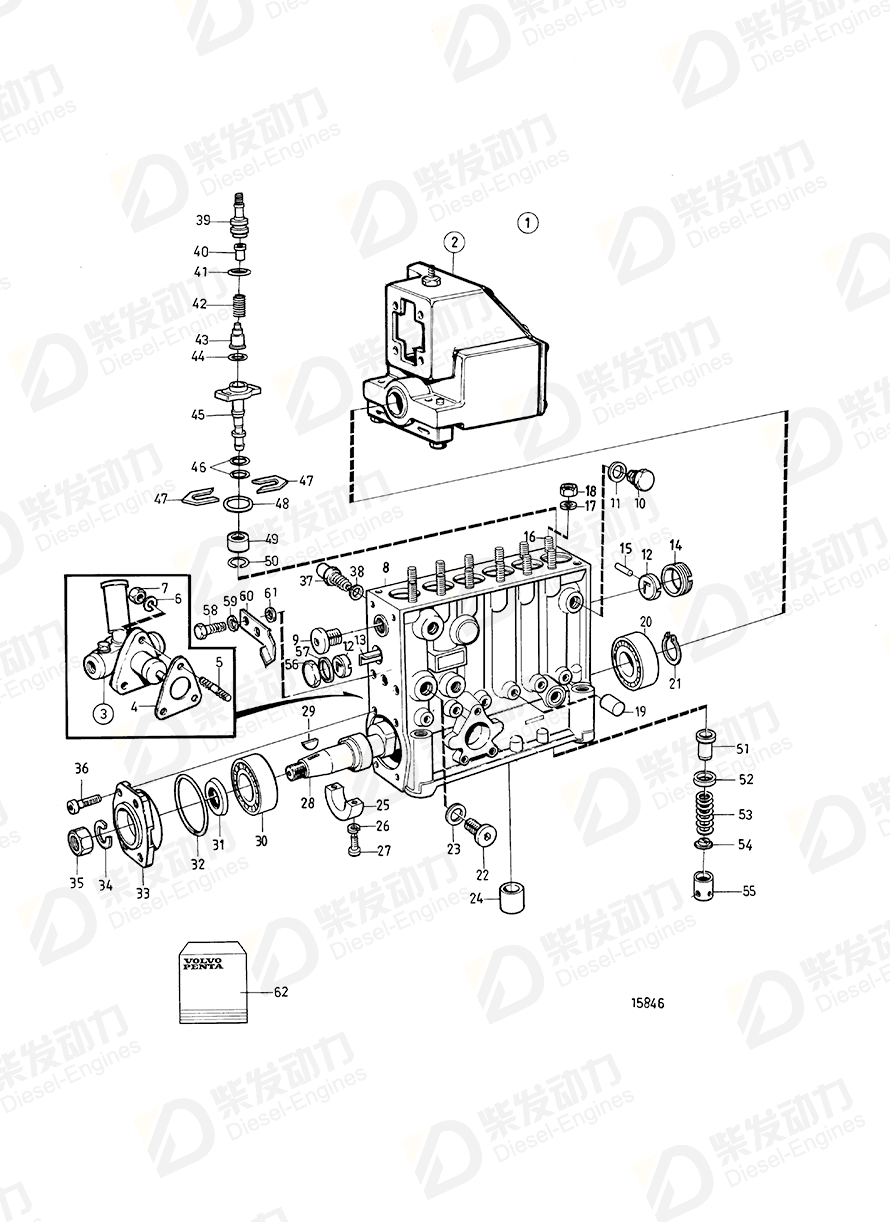

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803751 | 1 | (865566), Repl by 3803751 |
| 1 | Injection pump | 3828998 | 1 | (865566), Repl by 3803751 |
| 2 | Actuator | 3827267 | 1 | (866167) |
| 3 | Feed pump | 863474 | 1 | |
| 4 | Gasket | 863370 | 1 | |
| 5 | Stud | 130673 | 3 | |
| 6 | Spring washer | 949607 | 3 | |
| 7 | Hexagon nut | 940197 | 3 | |
| 9 | Plug | 240121 | 1 | |
| 10 | Screw | 847439 | 1 | |
| 11 | Gasket | 969011 | 1 | |
| 12 | Bushing | 240014 | 2 | |
| 13 | Control rod | 240907 | 1 | |
| 14 | Washer | 244699 | 1 | (240015) |
| 15 | Spring pin | 244008 | 1 | (131015) |
| 17 | Washer | 862404 | 12 | |
| 18 | Nut | 862405 | 12 | |
| 20 | Bearing | 863833 | 1 | |
| 21 | Lock ring | 48602 | 1 | |
| 22 | Sealing plug | 243263 | 1 | |
| 23 | Gasket | 240017 | 1 | Spec.867473 alt |
| 25 | Bearing | 1697955 | 1 | |
| 29 | Key | 35168 | 1 | |
| 30 | Bearing | 862420 | 1 | |
| 31 | Sealing ring | 3825543 | 1 | Included in small parts kit. |
| 32 | O-ring | 862423 | 1 | Included in small parts kit. |
| 35 | Hexagon nut | 955807 | 1 | |
| 36 | Screw | 862415 | 4 | |
| 37 | Overflow valve | 479775 | 1 | |
| 37 | Overflow valve | 3825154 | 1 | |
| 38 | Gasket | 969011 | 1 | |
| 39 | Delivery valve retai | 1699452 | 6 | |
| 40 | Peg | 1699453 | 6 | |
| 41 | O-ring | 862400 | 6 | Included in small parts kit. |
| 42 | Compression spring | 1699454 | 6 | |
| 43 | Valve | 3825836 | 6 | |
| 45 | Pump element | 863498 | 6 | |
| 46 | O-ring | 240422 | 12 | |
| 47 | Shim | 244381 | 1 | TH=1,50mm |
| 47 | Shim | 244382 | 1 | TH=1,60mm |
| 47 | Shim | 244383 | 1 | TH=1,70mm |
| 47 | Shim | 244384 | 1 | TH=1,80mm |
| 47 | Shim | 244385 | 1 | TH=1,90mm |
| 47 | Shim | 244386 | 1 | TH=2,00mm |
| 47 | Shim | 244634 | 1 | TH=1,3mm |
| 47 | Shim | 244635 | 1 | TH=1,4mm |
| 47 | Shim | 244908 | 1 | TH=0,75mm |
| 47 | Shim | 244909 | 1 | TH=0,95mm |
| 47 | Shim | 244910 | 1 | TH=1,05mm |
| 47 | Shim | 244911 | 1 | TH=1,15mm |
| 47 | Shim | 244912 | 1 | TH=1.55mm |
| 47 | Shim | 244913 | 1 | TH=1,65mm |
| 47 | Shim | 244914 | 1 | TH=1,75mm |
| 47 | Shim | 244915 | 1 | TH=2.15mm |
| 47 | Shim | 244916 | 1 | TH=2.20mm |
| 47 | Adjusting washer | 844990 | 1 | TH=0.40mm |
| 47 | Adjusting washer | 844991 | 1 | TH=0.50mm |
| 47 | Adjusting washer | 844992 | 1 | TH=0.70mm |
| 47 | Adjusting washer | 844993 | 1 | TH=0.80mm |
| 47 | Adjusting washer | 844994 | 1 | TH=1.00mm |
| 47 | Adjusting washer | 844995 | 1 | TH=1.10mm |
| 47 | Adjusting washer | 844996 | 1 | TH=1,30mm |
| 47 | Adjusting plate | 847433 | 1 | TH=2,1mm |
| 50 | Lock ring | 1697953 | 6 | |
| 51 | Control sleeve | 862406 | 6 | |
| 52 | Spring disc | 239984 | 6 | |
| 53 | Compression spring | 862407 | 6 | |
| 54 | Spring disc | 862408 | 6 | |
| 56 | Lock screw | 240016 | 1 | |
| 57 | Gasket | 240017 | 1 | Spec.867473 alt |
| 58 | Hexagon screw | 955271 | 2 | |
| 59 | Spring washer | 949607 | 2 | |
| 61 | Spacer ring | 849477 | 2 | |
| 62 | Spare parts kit | 862425 | 1 |
| Item | Part Name | Part No. |
| 4 | Gasket 863370 | 863370 |
| Details | |
| Engine model | TAD1030G TAD1030GE TAD1031GE TAD1032GE TAD1630G, TAD1630GE TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD100CHC TD1010G, TWD1010G TD120HP-86 TD121CHC TD121G TD121G-87 TD121GG, TD121GGP TD121GG-86 TD164KAE TD610V TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TWD1211G TWD1620G TWD1630G TWD630VE |
| Application | Fuel Feed Pump, Components: 1699140 Fuel Feed Pump, Components: 244391 Fuel Feed Pump: 1699140 Fuel Feed Pump: 244391 Fuel Injection Pump Fuel Injection Pump, Components Fuel Injection Pump, Components: 3803738 Fuel Injection Pump, Components: 3826523 Fuel Injection Pump, Components: 3827139 Fuel Injection Pump, Components: 3827212 Fuel Injection Pump, Components: 3832371 Fuel Injection Pump, Components: 863232 Fuel Injection Pump, Components: 864636,864680 Fuel Injection Pump, Components: 864684 Fuel Injection Pump, Components: 864685 Fuel Injection Pump, Components: 864849 Fuel Injection Pump, Components: 864851 Fuel Injection Pump, Components: 866204 Fuel Injection Pump, Components: 866205 Fuel Injection Pump, Components: A Fuel Injection Pump, Components: B Fuel Injection Pump: 4880898 Fuel Injection Pump: 845216 Fuel Injection Pump: 846359 Fuel Injection Pump: 846360 Fuel Injection Pump: 846682 Fuel Injection Pump: 847261 Fuel Injection Pump: 847359 Fuel Injection Pump: 847437 Fuel Injection Pump: 847438 Fuel Injection Pump: 847612 Fuel Injection Pump: 847768 Fuel Injection Pump: 848193 Fuel Injection Pump: 848770 Fuel Injection Pump: 848910 Fuel Injection Pump: 849261 Fuel Injection Pump: 862664 Fuel Injection Pump: 862665 Fuel Injection Pump: 864196 Repair Kit Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D |
| Specification | |
| Descriptions | (239896) (6232208) (849470) Included in small parts kit. Included in small parts kit., (6232208) Only included in 1699140., (6232208) |
