Gasket 864491

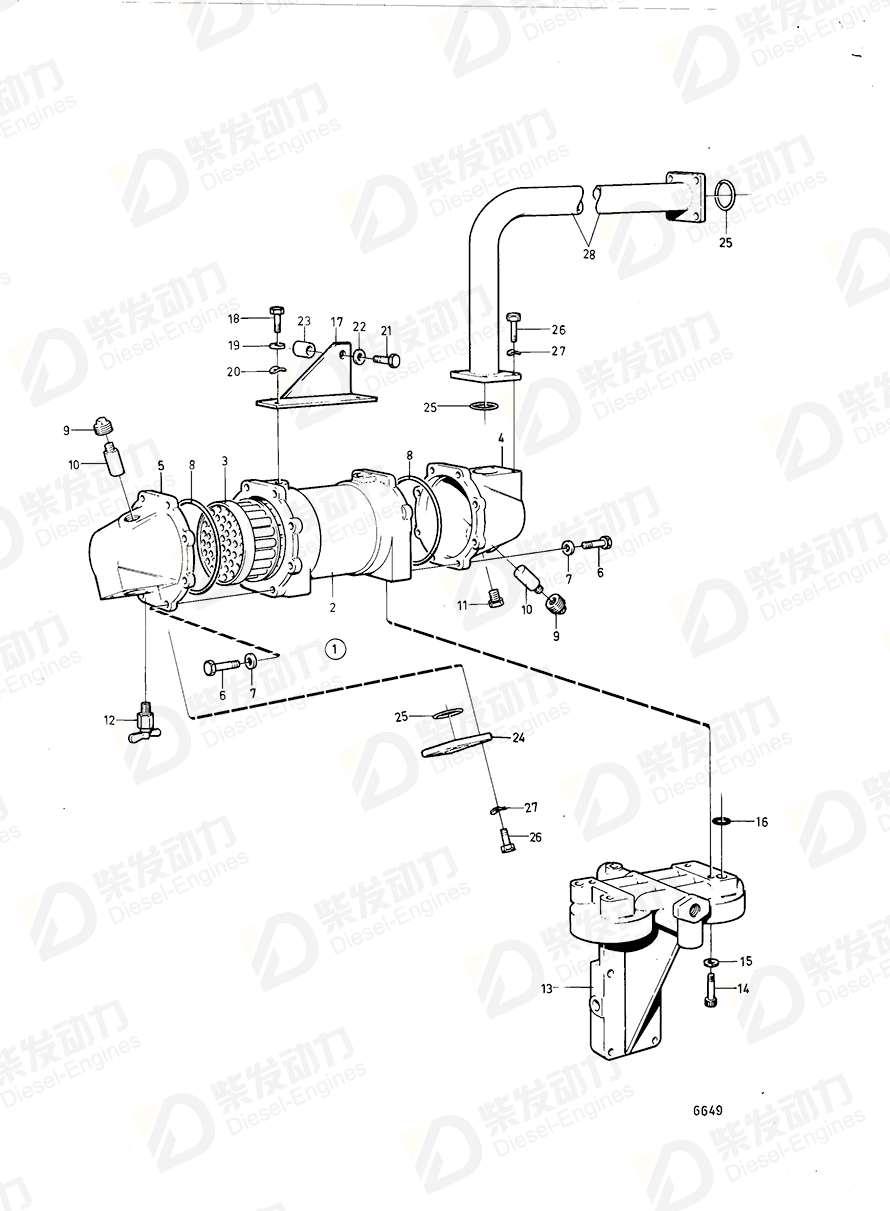

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 846223 | 1 | |
| 2 | Housing | 849410 | 1 | |
| 3 | Insert | 864213 | 1 | |
| 4 | End cover | 846235 | 1 | |
| 5 | End cover | 846235 | 1 | |
| 6 | Hexagon screw | 940094 | 16 | |
| 7 | Spring washer | 941906 | 16 | |
| 8 | O-ring | 925027 | 2 | |
| 9 | Plug | 838928 | 2 | (800475) |
| 10 | Anode | 838929 | 2 | (800476) |
| 11 | Plug | 192134 | 3 | |
| 12 | Shut-off cock | 949918 | 1 | (82745) |
| 13 | Bracket | 843528 | 1 | See group 2B |
| 13 | Bracket | 844498 | 1 | See group 2B |
| 14 | Hex. socket screw | 956572 | 4 | SEE GROUP 2B |
| 15 | Gasket | 11992 | 4 | |
| 16 | O-ring | 949656 | 2 | |
| 17 | Support | 846983 | 1 | |
| 18 | Hexagon screw | 940100 | 2 | |
| 19 | Washer | 955893 | 2 | |
| 20 | Spring washer | 941906 | 2 | |
| 21 | Hexagon screw | 955535 | 1 | |
| 22 | Spring washer | 942336 | 1 | |
| 23 | Spacer sleeve | 829653 | 1 | |
| 24 | Flange | 843850 | 1 | |
| 25 | Gasket | 864491 | 3 | |
| 26 | Hexagon screw | 940135 | 12 | |
| 27 | Spring washer | 941907 | 12 | |
| 28 | Tube | 846707 | 1 |
| Item | Part Name | Part No. |
| 25 | Gasket 864491 | 864491 |
| Details | |
| Engine model | TD100CHC TD121CHC |
| Application | Oil Cooler and Installation Components Sea Water Pump with Installation Components |
