Gasket 907132

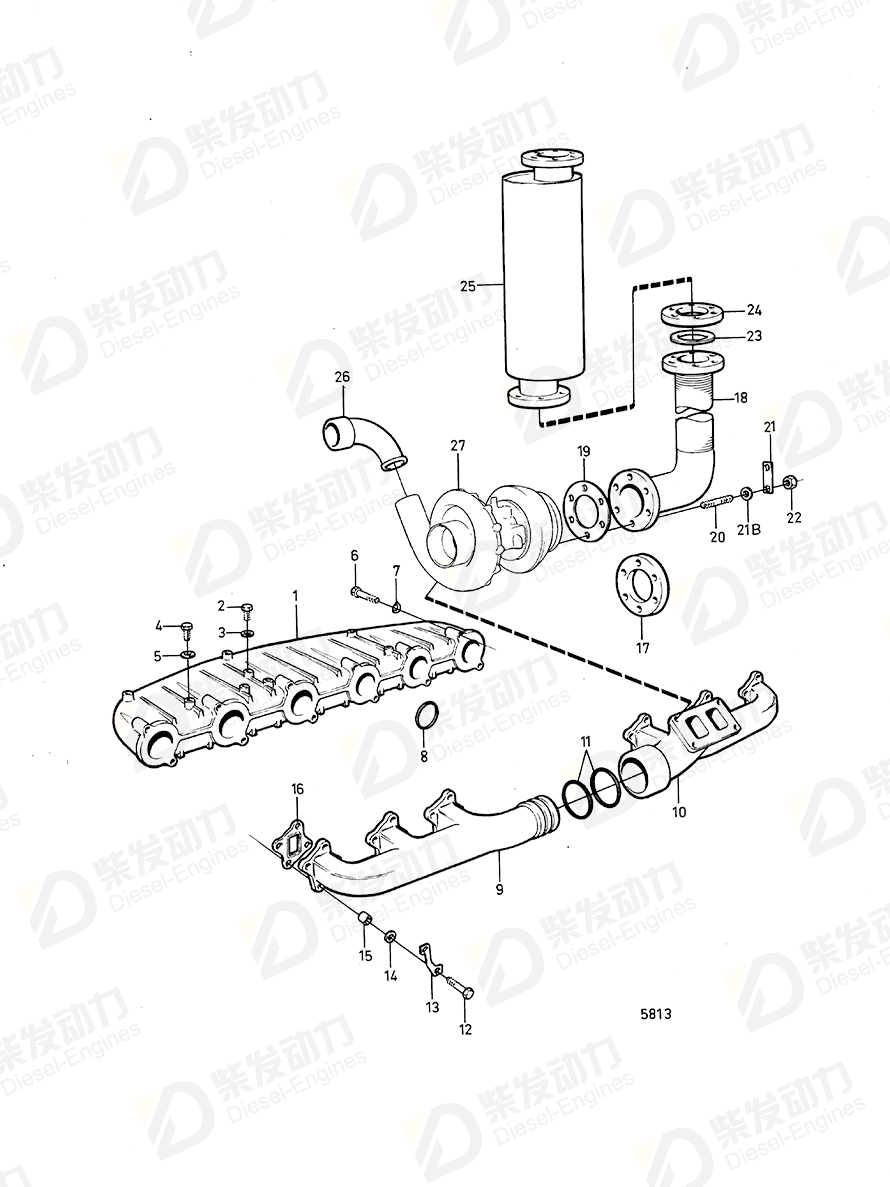

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet pipe | 468928 | 1 | |
| 2 | Hexagon screw | 940113 | 1 | |
| 3 | Gasket | 957171 | 1 | |
| 4 | Plug | 16318 | 1 | |
| 5 | Gasket | 907132 | 1 | |
| 6 | Hexagon screw | 955526 | 12 | MD70BK spec 867116 MOXXXX/9685- |
| 7 | Spring washer | 941907 | 12 | |
| 8 | Rubber ring | 423174 | 6 | |
| 9 | Exhaust pipe | 468924 | 1 | |
| 10 | Exhaust pipe | 468925 | 1 | |
| 11 | Sealing ring | 423057 | 2 | |
| 12 | Hexagon screw | 955536 | 24 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 13 | Lock washer | 468646 | 12 | Not for TAD1230G |
| 14 | Washer | 941744 | 24 | |
| 15 | Spacer sleeve | 422217 | 24 | |
| 16 | Gasket | 468647 | 6 | |
| 17 | Flange | 330287 | 1 | TD60B spec. 867618, 867648., Used when expansion tank 351579 is mounted, Replaced by 1pc 843088 and 8PCS 955365. |
| 18 | Exhaust hose, exhaust hose | 846308 | 1 | (821278) |
| 19 | Gasket | 411710 | 1 | |
| 20 | Stud | 953259 | 6 | |
| 21 | Tab washer | 15193 | 3 | |
| 22 | Nut | 943152 | 6 | |
| 23 | Gasket | 807578 | 1 | |
| 24 | Flange | 807625 | 1 | |
| 21B | Washer | 960148 | 6 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| Item | Part Name | Part No. |
| 5 | Gasket 907132 | 907132 |
| Details | |
| Engine model | D100A D100A, D100B, TD100A D100B D100B, TD100A D100BHC D100BRC D120A D42A D70B D70CHC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G TAD1230P TAD1230V TAD1231GE, TAD1232GE TAD730G TAD730P TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G-87 TD100GG-87 TD1010G, TWD1010G TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121CHC TD121CHC, TD121CRC TD121CRC TD121G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GG, TD121GGP TD121GG-86 TD121GP-87 TD60A TD60A, TD60B TD60B TD60D TD60D, TD60D-83, TID60D, TID60DG TD60D-83 TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G TD71A TD71A, TID71A, TWD710V, TAD730V TD71ACE TD71AG TD71AP TD71AW TD730ME TD730VE TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TID60D TID60DG TID70G TID71A TID71AG TID71AP TWD1030ME TWD1031VE TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD710G TWD710P TWD731ME TWD731VE |
| Application | Cylinder Block Cylinder Block and Related Parts Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C Cylinder Block, Earlier Production CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B FUEL SYSTEM Fuel System: A Fuel System: B Fuel System: C Fuel System: D Fuel System: TD71AGP Fuel System: TD71APB Fuel System: TID71AGP Fuel System: TID71APB Induction Manifold with Installation Components Induction Manifold with Installation Components: A Induction Manifold with Installation Components: B Induction Manifold with Installation Components: TD71AGP Induction Manifold with Installation Components: TD71APB Induction Manifold, Low Mounted Turbocharger Induction- and Exhaust Manifold Induction- and Exhaust Manifold, Classed Engine: A Induction- and Exhaust Manifold, Classed Engine: B Induction- and Exhaust Manifold, Classed Engine: C Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B INDUCTION-AND EXHAUST MANIFOLD INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B INDUCTION-AND EXHAUST MANIFOLD: TID121FP Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Oil Cooler Oil Cooler and Installation Components Oil Cooler, Side Mounted REPAIR KIT Repair Kit: A Repair Kit: B Repair Kits Repair Kits, Repair Kits,: A Repair Kits,: B REPAIR KITS: A REPAIR KITS: B REPAIR KITS: C REPAIR KITS: D Repair Kits: TD100-87 Repair Kits: TID100-87 |
| Specification | |
| Descriptions | (18665) D42A PP SPEC. 16053, 867638. Early type MO-XXXXX/1495. MOXXXXX/1496-. SN2071074713- |
