Gasket 947621

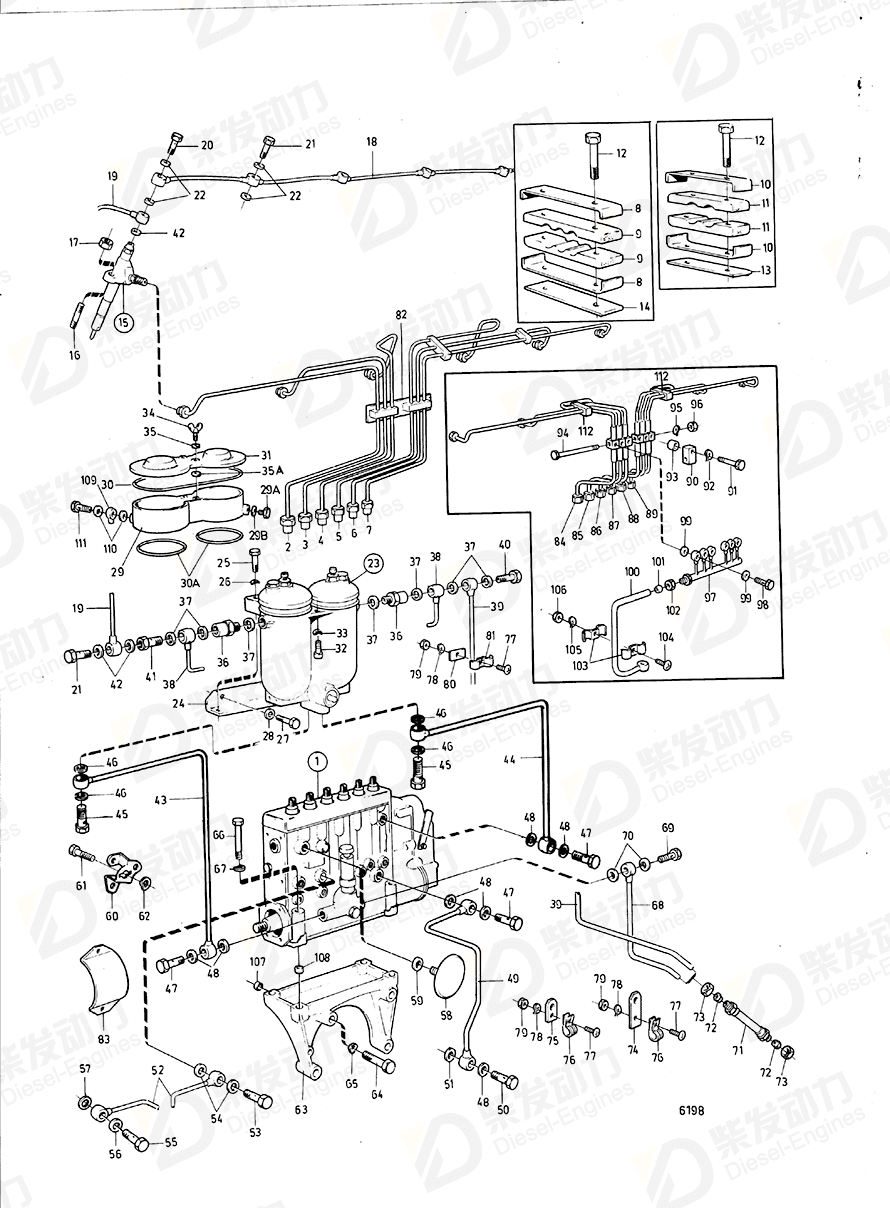

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 843978 | 1 | Repair kit 6211269 |
| 2 | Delivery pipe | 823781 | 1 | |
| 3 | Delivery pipe | 823782 | 1 | |
| 4 | Delivery pipe | 823783 | 1 | |
| 5 | Delivery pipe | 823784 | 1 | |
| 6 | Delivery pipe | 823785 | 1 | |
| 7 | Delivery pipe | 823786 | 1 | |
| 8 | Attaching clamp | 414346 | 8 | |
| 9 | Attaching clamp | 414347 | 8 | |
| 10 | Attaching clamp | 414344 | 2 | |
| 11 | Attaching clamp | 414345 | 2 | |
| 12 | Hexagon screw | 955247 | 10 | |
| 13 | Nut plate | 414736 | 1 | |
| 14 | Nut plate | 414735 | 2 | |
| 15 | Injector | 837097 | 6 | |
| 15 | Injector | 3803249 | 6 | |
| 16 | Stud | 941928 | 12 | |
| 17 | Nut | 417110 | 12 | |
| 18 | Leak-off line | 822564 | 1 | MO-XXXXX/1495. |
| 19 | Pipe | 836747 | 1 | |
| 20 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 21 | Hollow screw | 74033 | 6 | |
| 22 | Gasket | 957171 | 12 | |
| 23 | Fuel filter kit | 243405 | 1 | |
| 24 | Bracket | 845319 | 1 | (836365) |
| 25 | Hexagon screw | 940134 | 2 | |
| 26 | Spring washer | 941909 | 2 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 27 | Hexagon screw | 940115 | 2 | |
| 28 | Spring washer | 942336 | 2 | |
| 29 | Reservoir | 846457 | 1 | |
| 30 | Sealing ring | 846460 | 1 | |
| 31 | Cap | 846459 | 1 | |
| 32 | Hex. socket screw | 959223 | 1 | L = 30 MM |
| 32 | Hex. socket screw | 959227 | 1 | L = 50 MM |
| 33 | Spring washer | 941907 | 2 | |
| 34 | Wing screw | 846461 | 2 | |
| 35 | Gasket | 947620 | 2 | (233321) |
| 36 | Overflow valve | 35096 | 2 | |
| 37 | Gasket | 18671 | 7 | |
| 38 | Pipe | 836748 | 1 | |
| 39 | Fuel pipe | 837610 | 1 | MOXXXXX/9820- |
| 40 | Hollow screw | 180211 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 41 | Hollow screw | 16496 | 1 | |
| 42 | Gasket | 957171 | 3 | |
| 43 | Fuel pipe | 836750 | 1 | |
| 44 | Fuel pipe | 836749 | 1 | |
| 45 | Hollow screw | 26013 | 2 | AQ115A MOXXXX/86909-. |
| 46 | Gasket | 957181 | 4 | |
| 47 | Hollow screw | 25167 | 3 | |
| 48 | Gasket | 957178 | 7 | |
| 49 | Return pipe | 422246 | 1 | |
| 50 | Hollow screw | 954394 | 1 | |
| 51 | Gasket | 11998 | 1 | |
| 52 | Feed line | 423393 | 1 | |
| 53 | Hollow screw | 48634 | 1 | |
| 54 | Gasket | 957173 | 2 | |
| 55 | Hollow screw | 837709 | 1 | |
| 56 | Gasket | 11994 | 1 | |
| 57 | Gasket | 18666 | 1 | |
| 58 | Pressure equalizer | 466398 | 1 | |
| 59 | Gasket | 18671 | 1 | |
| 60 | Lever | 821134 | 1 | |
| 61 | Hexagon screw | 955270 | 1 | |
| 62 | Spring washer | 941906 | 1 | |
| 63 | Bracket | 468558 | 1 | |
| 64 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 65 | Spring washer | 940280 | 4 | |
| 66 | Hexagon screw | 940156 | 4 | |
| 67 | Washer | 190509 | 4 | |
| 68 | Fuel pipe | 837607 | 1 | Replaced by 837363., See group2D |
| 69 | Hollow screw | 25167 | 1 | |
| 70 | Gasket | 18671 | 2 | |
| 71 | Fuel hose | 845450 | 2 | (880618) |
| 72 | Ferrule | 956969 | 4 | |
| 73 | Fitting nut | 956983 | 4 | |
| 74 | Anchorage | 821625 | 1 | |
| 75 | Anchorage | 821036 | 1 | |
| 76 | Clamp | 952625 | 2 | |
| 77 | Cross recessed screw | 950046 | 3 | |
| 78 | Spring washer | 941906 | 3 | |
| 79 | Hexagon nut | 955825 | 3 | Late type |
| 80 | Anchorage | 821076 | 1 | |
| 81 | Clamp | 941492 | 1 | |
| 82 | Bracket | 822546 | 1 | |
| 84 | Delivery pipe | 846127 | 1 | Cyl.no.1 |
| 85 | Delivery pipe | 846126 | 1 | Cyl.no.2 |
| 86 | Delivery pipe | 846125 | 1 | Cyl.no.3 |
| 87 | Delivery pipe | 846124 | 1 | Cyl.no.4 |
| 88 | Delivery pipe | 846123 | 1 | Cyl.no.5 |
| 89 | Delivery pipe | 846122 | 1 | Cyl.no.6 |
| 90 | Spacer | 846119 | 1 | |
| 91 | Hexagon screw | 959800 | 1 | See group 2B |
| 92 | Spring washer | 942336 | 1 | |
| 93 | Spacer sleeve | 843028 | 1 | |
| 94 | Hexagon screw | 955288 | 1 | |
| 95 | Spring washer | 941906 | 1 | |
| 96 | Hexagon nut | 955781 | 1 | |
| 97 | Leak-off line | 846121 | 1 | |
| 98 | Hollow screw | 846183 | 6 | |
| 99 | Gasket | 845953 | 12 | |
| 100 | Tube | 844130 | 1 | See group 3 |
| 101 | Ferrule | 956969 | 1 | |
| 102 | Fitting nut | 956983 | 1 | |
| 103 | Attaching clamp | 404279 | 4 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 104 | Cross recessed screw | 956095 | 2 | |
| 105 | Spring washer | 941906 | 2 | |
| 106 | Hexagon nut | 955781 | 2 | |
| 107 | Guide sleeve | 423161 | 2 | |
| 108 | Guide sleeve | 417588 | 1 | |
| 109 | Banjo nipple | 25168 | 1 | |
| 110 | Gasket | 957178 | 2 | |
| 111 | Hollow screw | 25167 | 1 | |
| 112 | Clamp | 846120 | 2 | |
| 29A | Plug | 960630 | 1 | Replaced by 1 PC 843512,1 ST 191026. |
| 29B | Gasket | 947621 | 1 | |
| 30A | Sealing ring | 846458 | 1 | |
| 35A | E-circlip | 951665 | 2 |
| Item | Part Name | Part No. |
| 29B | Gasket 947621 | 947621 |
| Details | |
| Engine model | D100BHC D100BRC D42A TAD120AHC TAD120BHC TAD120CHC TD100AHC TD100ARC TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HPP TD70G-83 TID120FG TID120HPP TID70G |
| Application | Cylinder Block CYLINDER BLOCK AND RELATED PARTS CYLINDER BLOCK AND RELATED PARTS: A CYLINDER BLOCK AND RELATED PARTS: B Cylinder Block: A Cylinder Block: B FUEL SYSTEM FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D REPAIR KITS REPAIR KITS, |
| Specification | |
| Descriptions | D42A PP SPEC. 16053, 867638. Spec.867785 TD70GG TID70G spec.867784 MOXXXX/170456-. |
