Gasket 957178

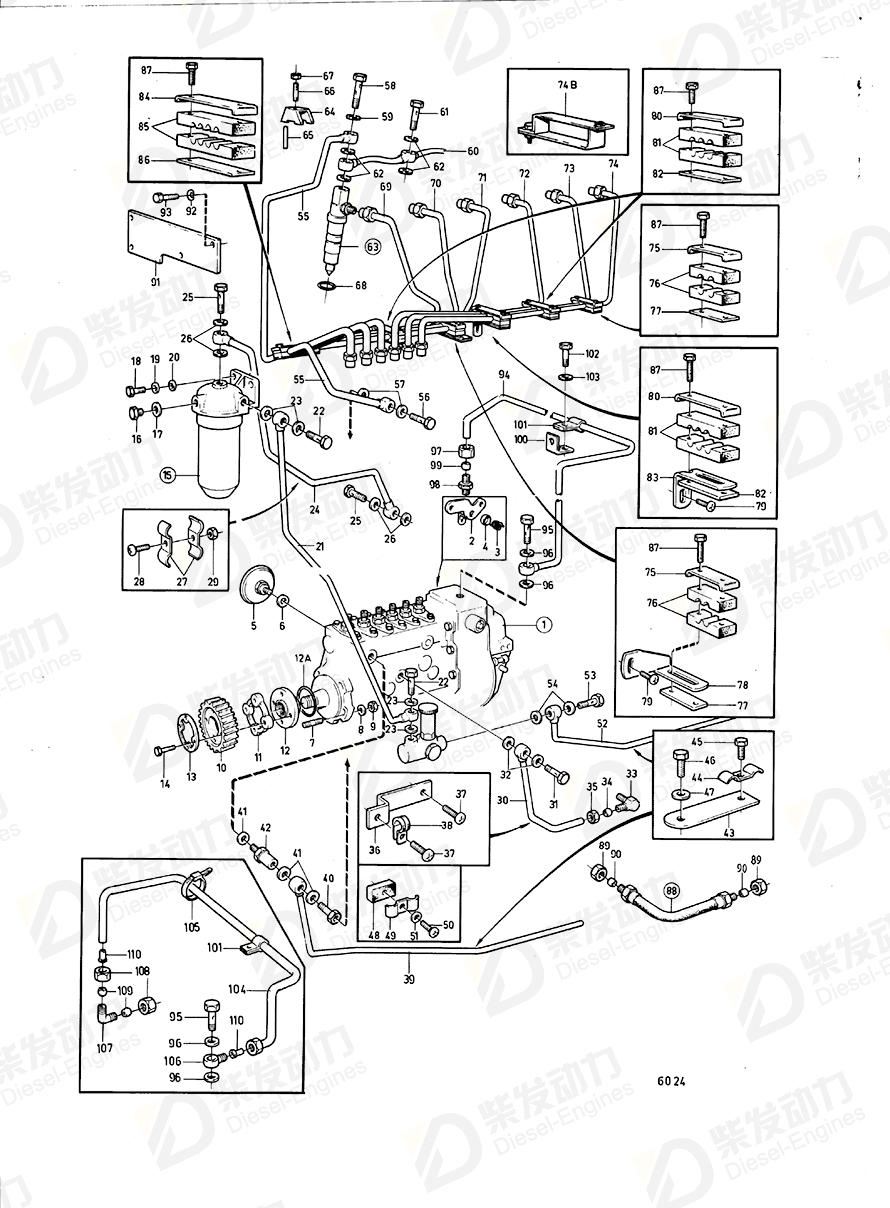

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 843306 | 1 | |
| 1 | Injection pump | 845383 | 1 | Compl |
| 1 | Injection pump | 846477 | 1 | |
| 1 | Injection pump | 846701 | 1 | Compl |
| 2 | Lever | 821134 | 1 | |
| 2 | Intermediate lever | 848677 | 1 | (821134) |
| 3 | Spring | 239056 | 1 | Replaced by 837364. |
| 4 | Cover | 239059 | 1 | Replaced by 837364 |
| 5 | Pressure equalizer | 466398 | 1 | |
| 6 | Gasket | 18838 | 1 | |
| 7 | Stud | 953261 | 4 | |
| 8 | Washer | 940097 | 4 | |
| 9 | Flange nut | 942299 | 4 | |
| 10 | Gear | 842467 | 1 | See group 2C |
| 11 | Intermediate section | 420080 | 1 | |
| 12 | Hub | 465260 | 1 | |
| 13 | Lock washer | 411301 | 1 | |
| 14 | Hexagon screw | 940161 | 4 | For engine with 40° angle of inclination, L=45mm |
| 15 | Fuel filter | 241649 | 1 | Ers av 1pc 471190 housing and 1pc 466987 filter element. |
| 15 | Cover | 471190 | 1 | |
| 16 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 17 | Gasket | 18838 | 3 | |
| 18 | Hexagon screw | 940114 | 2 | |
| 19 | Spring washer | 942336 | 2 | |
| 20 | Washer | 940097 | 2 | |
| 21 | Fuel pipe | 845094 | 1 | (844862) early type |
| 21 | Fuel pipe | 845151 | 1 | (844967) late type |
| 22 | Hollow screw | 25167 | 2 | |
| 23 | Gasket | 18838 | 4 | |
| 23 | Gasket | 957178 | 4 | |
| 24 | Fuel pipe | 844966 | 1 | Late type |
| 24 | Fuel pipe | 845095 | 1 | (844863) early type |
| 25 | Hollow screw | 25167 | 2 | |
| 26 | Gasket | 18838 | 4 | |
| 26 | Gasket | 957178 | 4 | |
| 27 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 28 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 29 | Hexagon nut | 955825 | 1 | Late type |
| 30 | Oil line | 465399 | 1 | |
| 31 | Hollow screw | 48634 | 1 | |
| 32 | Gasket | 957173 | 2 | |
| 33 | Elbow nipple | 329638 | 1 | |
| 34 | Sleeve | 954364 | 1 | |
| 35 | Fitting nut | 954356 | 1 | |
| 36 | Bracket | 465584 | 1 | |
| 37 | Cross recessed screw | 950045 | 2 | |
| 38 | Clamp | 940374 | 1 | |
| 39 | Fuel pipe | 844864 | 1 | |
| 40 | Hollow screw | 16496 | 1 | |
| 41 | Gasket | 18838 | 3 | |
| 42 | Overflow valve | 35096 | 1 | |
| 43 | Anchorage | 466919 | 2 | |
| 44 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 45 | Cross recessed screw | 950046 | 2 | |
| 46 | Hexagon screw | 955534 | 2 | |
| 47 | Spring washer | 942336 | 2 | |
| 48 | Rubber spacer | 308046 | 1 | |
| 49 | Clamp | 941492 | 1 | |
| 50 | Hexagon screw | 955514 | 1 | L = 25 MM |
| 51 | Spring washer | 941906 | 1 | |
| 52 | Fuel pipe | 844861 | 1 | |
| 53 | Hollow screw | 25167 | 1 | |
| 54 | Gasket | 18838 | 2 | |
| 55 | Leak-off pipe | 844865 | 1 | Early type |
| 55 | Leak-off line | 846590 | 1 | Late type |
| 56 | Hollow screw | 74033 | 1 | |
| 57 | Gasket, oil pipe | 946729 | 2 | |
| 58 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 59 | Gasket, oil pipe | 946729 | 1 | |
| 60 | Leak-off pipe | 465437 | 1 | (896762) |
| 61 | Hollow screw | 74033 | 5 | |
| 62 | Gasket, oil pipe | 946729 | 12 | |
| 63 | Injector | 466513 | 6 | |
| 63 | Injector | 3803244 | 6 | |
| 64 | Yoke | 469797 | 6 | (466399) |
| 65 | Pin | 466401 | 6 | |
| 66 | Stud | 466400 | 6 | |
| 67 | Hexagon nut | 961992 | 6 | |
| 68 | Sealing ring | 469455 | 6 | |
| 69 | Delivery pipe | 465421 | 1 | MO-XXXXX |
| 69 | Delivery pipe | 465651 | 1 | Moxxxxx |
| 70 | Delivery pipe | 465422 | 1 | MO-XXXXX |
| 70 | Delivery pipe | 465652 | 1 | Moxxxxx |
| 71 | Delivery pipe | 465423 | 1 | MO-XXXXX |
| 71 | Delivery pipe | 465653 | 1 | Moxxxxx |
| 72 | Delivery pipe | 465654 | 1 | (465424) |
| 73 | Delivery pipe | 465655 | 1 | (465425) |
| 74 | Delivery pipe | 465656 | 1 | (465426) |
| 74 | Clamp, 2-pipes | 470181 | 1 | |
| 75 | Attaching clamp | 414344 | 2 | |
| 76 | Attaching clamp | 414345 | 4 | |
| 77 | Nut plate | 414736 | 2 | |
| 78 | Bracket | 465563 | 1 | MO-XXXXX |
| 79 | Cross recessed screw | 950045 | 2 | |
| 80 | Attaching clamp | 414346 | 3 | |
| 81 | Attaching clamp | 414347 | 6 | |
| 82 | Nut plate | 414735 | 3 | |
| 83 | Bracket | 465739 | 1 | MO-XXXXX (465564) |
| 84 | Clamp | 465338 | 1 | |
| 85 | Attaching clamp | 414349 | 2 | |
| 86 | Nut plate | 466034 | 1 | |
| 87 | Hexagon screw | 955247 | 12 | |
| 88 | Fuel hose | 845450 | 2 | (880618) |
| 89 | Fitting nut | 956983 | 4 | |
| 90 | Ferrule | 956969 | 4 | |
| 91 | Bracket | 844972 | 1 | |
| 92 | Spring washer | 942336 | 2 | |
| 93 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 94 | Tube | 465618 | 1 | Engine with RQV governor., Early type |
| 95 | Hollow screw | 74040 | 1 | |
| 96 | Gasket | 11994 | 2 | |
| 97 | Fitting nut | 954356 | 1 | |
| 98 | Nipple | 954378 | 1 | |
| 99 | Sleeve | 954364 | 1 | |
| 100 | Bracket | 424288 | 1 | Engine with RQV governor., Early type |
| 101 | Clamp | 940374 | 1 | |
| 102 | Cross recessed screw | 950020 | 1 | AQ290A MO 20460-. |
| 103 | Washer | 940090 | 1 | |
| 104 | Tube | 945460 | 1 | L=900mm |
| 105 | Cable tie | 948211 | 1 | |
| 106 | Banjo nipple | 945417 | 1 | |
| 107 | Elbow nipple | 954385 | 1 | |
| 108 | Fitting nut | 954356 | 2 | |
| 109 | Sleeve | 954364 | 2 | |
| 110 | Support sleeve | 944717 | 2 | |
| 74B | Clamp, 3-pipes | 470182 | 4 |
| Item | Part Name | Part No. |
| 23 | Gasket 957178 | 957178 |
| Details | |
| Engine model | D100A D100A, D100B D100B D100BHC D100BRC D100BRC, TD100ARC D120A D120A, TD120A D42A D70B D70B, TD70B D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC D70CRC DH10A, THD102KD, THD102KB TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD520GE, TAD720GE TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100GG TD100GG-85 TD100GG-87, TID100KG-87 TD1010G, TWD1010G TD120A TD120AHC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HPP TD121CHC TD121CRC TD164KAE TD520GE, TAD530GE, TAD531GE, TAD532GE, TD720GE, TAD720GE, TAD730GE, TAD731GE TD60B TD60D TD60D-83 TD70B TD70CHC TD70CHC, TD70CRC TD70CRC TD70G TID100K TID100KG TID120FG TID120HPP TID121FG TID162AG, TID162AGP, TID162AP, TID162APB TID60D TID60DG TID70G TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V |
| Application | Agglomerator and Installation Components Agglomerator and Sedimenter with Installation Components Bracket for Cooling Water Filter Bracket for Cooling Water Filter, Later Production Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Classed Fuel System: A Classed Fuel System: B Coolant Supervision and Installation Components Coolant Supervision and Installation Components: A Coolant Supervision and Installation Components: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D Cooling Water Filter Cylinder Block and Related Parts: A Cylinder Block and Related Parts: C CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D Electrical System and Instrument Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Electrical System and Instruments Excl Spec 867108, 867153: A Electrical System and Instruments Excl Spec 867108, 867153: B Electrical System and Instruments Excl Spec 867108, 867153: C Electrical System and Instruments: A Electrical System and Instruments: B ELECTRICAL SYSTEM AND INSTRUMENTS: TID121FP Fuel Filter and Installation Components, Spec.867293 Fuel Injection Pump: 242525 Fuel Injection Pump: 242643 FUEL SYSTEM Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System Spec.S5175/497250 Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System, Standard Model: A Fuel System, Standard Model: B FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D Radiator and Fan, Tropic 45°C Radiator and Installation 35 CG , 45 CG: 35°C Radiator and Installation 35 CG , 45 CG: 35CG Radiator and Installation 35 CG , 45 CG: 45°C Radiator and Installation 35 CG , 45 CG: 45CG Radiator and Installation Components Radiator and Installation Components Tropic 45CG: A Radiator and Installation Components Tropic 45CG: B RADIATOR AND INSTALLATION COMPONENTS, SPEC VERSION 45 CG Radiator and Installation Components, Spec Version: A Radiator and Installation Components, Spec Version: B Radiator and Installation Components: A Radiator and Installation Components: B Radiator and Installation Comps. Tropic 45CG Radiator and Installation Comps. Tropic 45CG: A Radiator and Installation Comps. Tropic 45CG: B Radiator and Installation Comps. Tropic 45CG: C Radiator and Installation Comps. Tropic 45CG: D REPAIR KIT Repair Kit: A Repair Kit: B Repair Kits REPAIR KITS: A Repair Kits: B REPAIR KITS: C Repair Kits: D Turbo and Air Filter with Installation Components Turbo and Installation Components, MO-47460/XXXXX Turbo and Installation Components, MO47461/XXXXX- Water Pump and Thermostat Water Pump and Thermostat Housing, SN-XXXXXXXXXX/6060 Water Pump and Thermostat Housing, SNXXXXXXXXXX/6061- |
| Specification | |
| Descriptions | Alt D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. For governor 225-1200. Late type MOXXXXX/1496-. Replaced by 1 PC 843512,1 ST 191026. SEE GROUP 2B Spec.867627 Spec.867648 |
