Gasket 957179

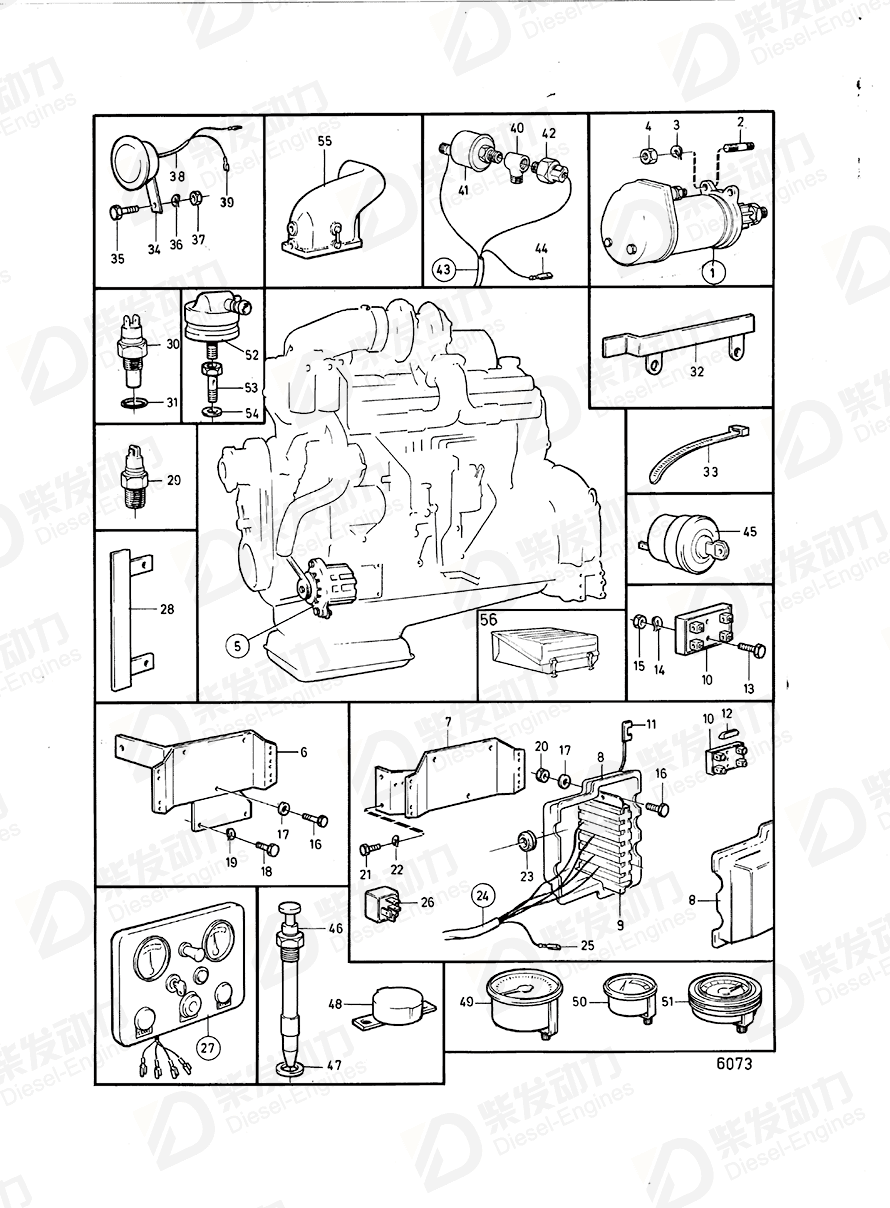

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor | 468202 | 1 | 24V |
| 2 | Stud | 953486 | 3 | |
| 3 | Spring washer | 942336 | 3 | |
| 4 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 7 | Bracket | 844474 | 1 | Replaced by 1pc 846622 flow switch and 1pc 846632 nipple |
| 8 | Clutch housing | 837791 | 2 | MO-12769/XXXXX,replaced by 841378., MO 12770/XXXXX-., Engine-night side., Early type |
| 8 | Clutch housing | 845838 | 2 | Late type |
| 9 | Terminal block | 837829 | 1 | MO-12769/XXXXX,replaced by 841378., MO 12770/XXXXX-., 24Vlate production. |
| 10 | Fuse box | 88578 | 1 | MO-12769/XXXXX,replaced by 841378., 24Vlate production. |
| 11 | Bridge connector | 842390 | 1 | MO 12770/XXXXX-., Replaced by 2pcs 845838, 1pc 955129., 24Vlate production. |
| 12 | Fuse, blue | 943905 | 1 | Replaced by 1pc alternator 841989 and 1pc PULLby 829312., 25A |
| 13 | Cross recessed screw | 950021 | 2 | |
| 14 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 15 | Hexagon nut | 940092 | 2 | Alt |
| 16 | Hexagon screw | 940199 | 3 | |
| 16 | Hexagon screw | 955294 | 3 | |
| 17 | Washer | 955894 | 3 | |
| 17 | Washer | 960141 | 3 | |
| 18 | Hexagon screw | 940133 | 2 | |
| 19 | Spring washer | 942336 | 2 | |
| 20 | Hexagon nut | 955782 | 3 | |
| 21 | Hexagon screw | 955588 | 3 | |
| 22 | Spring washer | 941912 | 3 | |
| 23 | Plug | 941269 | 2 | Max 20mm², 12-pole |
| 26 | Relay | 1504951 | 1 | For instrument panel 841096 and 841097., 24Vlate production. |
| 29 | Tachometer sensor | 354671 | 1 | For instrument panel 841094 and 841095., 24Vlate production., (837783) |
| 29 | Tachometer sensor | 846695 | 1 | |
| 30 | Temperature sensor | 844080 | 1 | D42A PP spec 16053. |
| 31 | Gasket | 957179 | 1 | For governor 225-1200. |
| 33 | Cable tie | 948210 | 1 | (827353) |
| 34 | Horn | 850420 | 1 | |
| 35 | Hexagon screw | 940114 | 1 | |
| 36 | Spring washer | 942336 | 1 | |
| 37 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 40 | T-nipple | 942490 | 1 | |
| 41 | Oil pressure sensor | 844085 | 1 | |
| 42 | Pressure monitor | 6639331 | 1 | D42A PP spec 16053. |
| 45 | Starter switch | 241315 | 1 | |
| 46 | Level indicator | 352390 | 1 | |
| 47 | Gasket | 11994 | 1 | |
| 48 | Level relay | 1501203 | 1 | |
| 49 | Tachometer | 823409 | 1 | |
| 50 | Thermometer | 827149 | 1 | |
| 51 | Hour recorder | 844957 | 1 | (815138) |
| 52 | Pressure monitor | 823416 | 1 | |
| 53 | Hollow screw | 823417 | 1 | |
| 54 | Gasket | 957178 | 2 |
| Item | Part Name | Part No. |
| 31 | Gasket 957179 | 957179 |
| Details | |
| Engine model | D100A, D100B D100BHC D100BRC D70B D70B, TD70B D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD520VE TAD650VE, TAD660VE TAD720VE, TAD721VE, TAD722VE TAD750VE, TAD760VE TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD121CHC TD121CRC TD45B TD520VE, TD720VE TD60A TD60B TD60D TD60D-83 TD70B TD70CHC TD70CRC TD70G TID120FG TID60D TID60DG |
| Application | Agglomerator and Sedimenter with Installation Components Air Compressor PTO A 300cm³ (1)&(2) Air Compressor PTO A 360cm³ Air Compressor PTO A 600cm³ (1)&(2) with Semi-rotary Pump Circulation Pump and Thermostat with Installation Components: A Circulation Pump and Thermostat with Installation Components: B Coolant Supervision and Installation Components Coolant Supervision and Installation Components: A Coolant Supervision and Installation Components: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D Electrical System and Instrument Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D Oil Cooler Sidemounted with Installation Components: A Oil Cooler Sidemounted with Installation Components: B Repair Kit: A Repair Kit: B Repair Kits: B Repair Kits: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: A THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: B THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: C Water Pump |
| Specification | |
| Descriptions | Alt For governor 225-1200. |
Related Products
Tags: Gasket, Volvo Penta, 957179
