Gasket 957181

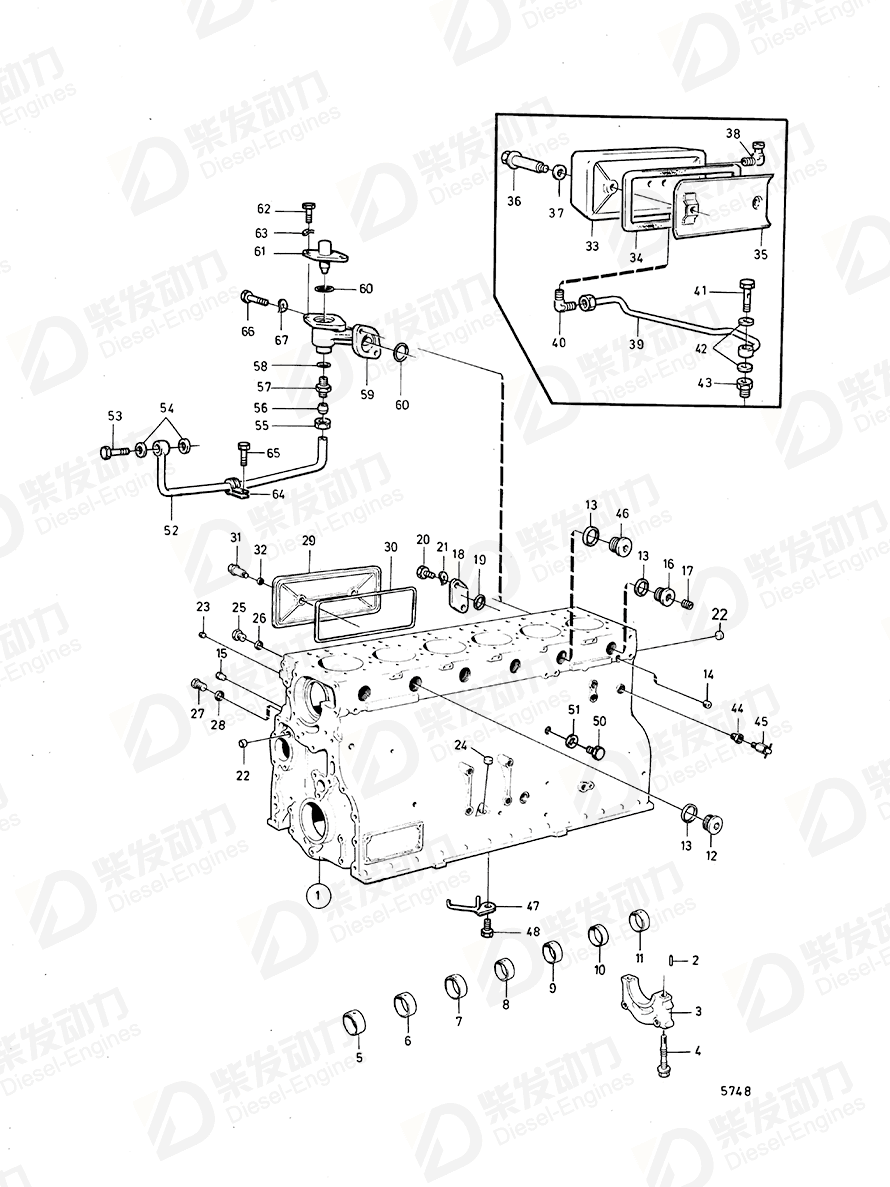

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 468702 | 1 | Spec. 9881, 9890. 9919, 9958, 9960., Replaced by 478990 |
| 1 | Cylinder block | 478990 | 1 | Spare part design., SNXXXXXXXXXX/199853- |
| 2 | Pin | 422426 | 1 | |
| 4 | Flange screw | 423444 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 952075 | 2 | |
| 15 | Plug | 422369 | 7 | |
| 16 | Plug | 821335 | 1 | |
| 17 | Plug | 952077 | 1 | |
| 19 | O-ring | 925060 | 1 | |
| 20 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 21 | Spring washer | 941907 | 2 | |
| 22 | Cap plug | 955083 | 3 | |
| 23 | Plug | 952077 | 3 | |
| 24 | Cap plug | 955082 | 3 | |
| 25 | Plug | 16318 | 3 | |
| 26 | Gasket | 907132 | 3 | |
| 27 | Plug | 190798 | 1 | |
| 28 | Gasket | 18818 | 1 | |
| 29 | Inspection cover | 423120 | 2 | |
| 30 | Gasket | 467409 | 2 | |
| 31 | Shoulder screw | 422541 | 4 | |
| 32 | Sealing ring | 424342 | 4 | |
| 33 | Crankcase ventilatio | 824365 | 1 | |
| 34 | Gasket | 824343 | 1 | |
| 35 | Splash plate | 824369 | 1 | |
| 36 | Screw | 823742 | 2 | |
| 37 | Sealing ring | 424342 | 2 | |
| 38 | Hose attachment | 815239 | 1 | |
| 39 | Oil pipe | 842134 | 1 | Spec. 9882, 9961., AQ140A MO-7019/XXXX. AQ120B MO-602/XXXX. |
| 40 | Elbow nipple | 954343 | 1 | Engine with oil supervision in rear oil pan cover |
| 41 | Hollow screw | 74040 | 1 | |
| 42 | Gasket | 957175 | 2 | |
| 43 | Nipple | 947807 | 1 | |
| 44 | Reduction nipple | 190130 | 1 | |
| 45 | Shut-off cock | 949918 | 1 | (82745) |
| 46 | Nipple | 836993 | 1 | See group 2B |
| 47 | Oil jet | 468539 | 6 | |
| 48 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 50 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 51 | Gasket | 947621 | 1 | |
| 52 | Tube | 842830 | 1 | See group 2B |
| 53 | Hollow screw | 190714 | 1 | |
| 54 | Gasket | 957181 | 2 | |
| 55 | Fitting nut | 956985 | 1 | |
| 56 | Ferrule | 956971 | 1 | |
| 57 | Nipple | 192639 | 1 | |
| 58 | Gasket | 957181 | 1 | |
| 60 | O-ring | 925065 | 2 | |
| 61 | Valve | 468838 | 1 | |
| 62 | Hexagon screw | 940094 | 2 | |
| 63 | Spring washer | 941906 | 2 | |
| 64 | Clamp | 952629 | 1 | |
| 65 | Hexagon screw | 940100 | 1 | |
| 66 | Hexagon screw | 955525 | 2 | |
| 67 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 54 | Gasket 957181 | 957181 |
| Details | |
| Engine model | D100A D100B D100BHC D100BHC, TD100AHC D100BRC D100BRC, TD100ARC D120A D70B D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G TAD1230P TAD1230V TAD1231GE, TAD1232GE TAD520GE TAD520GE, TAD720GE, TAD721GE, TAD722GE TAD520VE TAD520VE, TAD720VE, TAD721VE, TAD722VE TAD530GE, TAD531GE, TAD532GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TAD550GE, TAD551GE TAD620VE TAD650VE, TAD660VE TAD720GE TAD720GE, TAD721GE, TAD722GE TAD720VE TAD721VE, TAD722VE TAD750VE, TAD760VE TD100A TD100AHC TD100AHC, TD100ARC TD100ARC TD100CHC TD100CRC TD120A TD120AHC TD120AHC, TAD120AHC TD120AHC, TD120ARC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120ARC TD120ARC, TAD120BHC TD120BHC TD120BRC TD120HP-86 TD120HPP TD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG, TD121GGP TD121GG-86 TD121GP-87 TD30A TD420VE, TAD420VE TD420VE, TAD420VE, TAD620VE TD520GE TD520GE, TAD530GE, TAD531GE, TAD532GE, TD720GE, TAD720GE, TAD730GE, TAD731GE, TAD732GE, TAD733GE TD520GE, TD720GE, TAD720GE TD520VE TD520VE, TD720VE TD610G, TWD610G, TD710G, TWD710G TD610V, TWD610V TD70B TD70CHC TD70CHC, TD70CRC TD70CRC TD720GE TD720VE TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TWD1210G TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | After Cooler with Installation Components Alternator and Relay with Installation Components: A Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Classed Fuel System: A Classed Fuel System: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D Cylinder Block Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C Flywheel Housing for Twin Starter Motors FUEL FILTER Fuel Injection Pump Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System Spec.S5175/497250 Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System, Standard Model: A Fuel System, Standard Model: B FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Hand Fuel Pump INDUCTION AND EXHAUST SYSTEM Induction and Exhaust System: A Induction and Exhaust System: B Lubricating System LUBRICATING SYSTEM: B LUBRICATING SYSTEM: TID121FP Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D OIL BILGE PUMP WITH INSTALLATION COMPONENTS OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: A OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: B OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: C OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: D OIL BILGE PUMP WITH INSTALLATION COMPONENTS LATER PROD Oil Bilge Pump with Installation Components: A Oil Bilge Pump with Installation Components: B Oil Cooler and Oil Filter Oil Cooler and Oil Filter SN-01099356 Oil Cooler and Oil Filter SN01099357- Oil Cooler and Oil Filter: A Oil Cooler and Oil Filter: B Oil Cooler and Oil Filter: C Oil Cooler with Installation Components Oil Cooler, Oil Filter and Fuel filter Oil Sump Pump and Installation Components: A Repair Kit: A Repair Kit: B Repair Kits REPAIR KITS: A Repair Kits: B REPAIR KITS: C Repair Kits: D Repair Kits: TID100-87 Sump Pump and Installation Components: A Sump Pump and Installation Components: B Sump Pump and Installation Components: C Turbo and Air Filter with Installation Components Turbo and Installation Components Turbo and Installation Components, Classed Engine Turbo and Installation Components, MO-47460/XXXXX Turbo and Installation Components, MO47461/XXXXX- |
| Specification | |
| Descriptions | (20450890) AQ115A MOXXXX/86909-. Early type Repl by 837364 Replaced by 837363., Replaced by 837364., Early type See group 2A See group 2B Spec. 867113. alt spec. 9969. Spec. 9882, 9961. Spec.867055 alt. |
