Gasket 957184

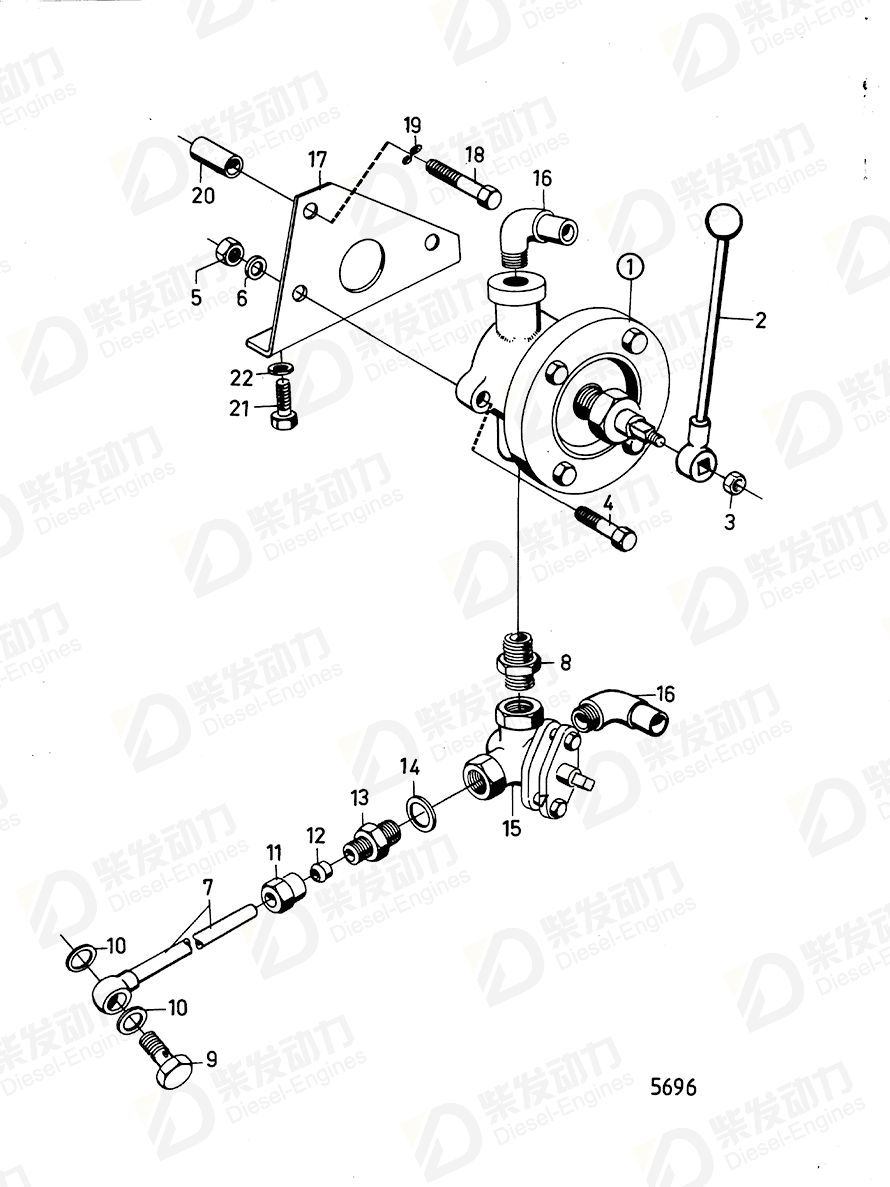

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Hexagon screw | 955535 | 2 | |
| 5 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 6 | Spring washer | 942336 | 2 | |
| 7 | Tube | 822176 | 1 | AQ115A MOXXXX/86909-. |
| 8 | Double nipple | 16452 | 1 | AQ115A MOXXXX/86909-. |
| 9 | Hollow screw | 26013 | 1 | AQ115A MOXXXX/86909-. |
| 10 | Gasket | 957181 | 2 | |
| 11 | Fitting nut | 941752 | 1 | AQ115A MOXXXX/86909-. |
| 12 | Ferrule | 941753 | 1 | AQ115A MOXXXX/86909-. |
| 13 | Nipple | 941751 | 1 | AQ115A MOXXXX/86909-. |
| 14 | Gasket | 957184 | 1 | AQ115A MOXXXX/86909-. |
| 15 | Cock | 807721 | 1 | AQ115A MOXXXX/86909-. |
| 16 | Hose attachment | 803490 | 2 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 17 | Bracket | 820582 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 18 | Hexagon screw | 955527 | 1 | |
| 19 | Spring washer | 941907 | 1 | |
| 20 | Spacer sleeve | 812942 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 21 | Hexagon screw | 940159 | 2 | |
| 22 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 14 | Gasket 957184 | 957184 |
| Details | |
| Engine model | D100A D100B D100B, TD100A D100BHC D100BHC, TD100AHC D100BRC, TD100ARC D120A, TD120A D70CHC TD100A TD100AHC TD100CHC TD100CRC TD120AHC, TAD120AHC TD70CHC |
| Application | Electrical System, Classed Engine Electrical System, Classed Engine Spec 867108, 867153 OIL BILGE PUMP WITH INSTALLATION COMPONENTS OIL BILGE PUMP WITH INSTALLATION COMPONENTS LATER PROD OIL FILTER WITH INSTALLATION COMPONENTS REPAIR KITS: A Repair Kits: B REPAIR KITS: C Sump Pump and Installation Components: A Sump Pump and Installation Components: B Sump Pump and Installation Components: C |
| Specification | |
| Descriptions | AQ115A MOXXXX/86909-. Spec. 9882, 9961. |
